Point Vortices with Lobatto VPRK Methods and Projections
VPRKLobattoIIIA(2)
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(2) with standard projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(2) with symmetric projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(2) with symplectic projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(2) with midpoint projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIA(3)
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(3) with standard projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(3) with symmetric projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(3) with symplectic projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(3) with midpoint projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIA(4)
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIA(4) with standard projection
Simulation crashed after 0 of 10000 time steps: singular matrix.

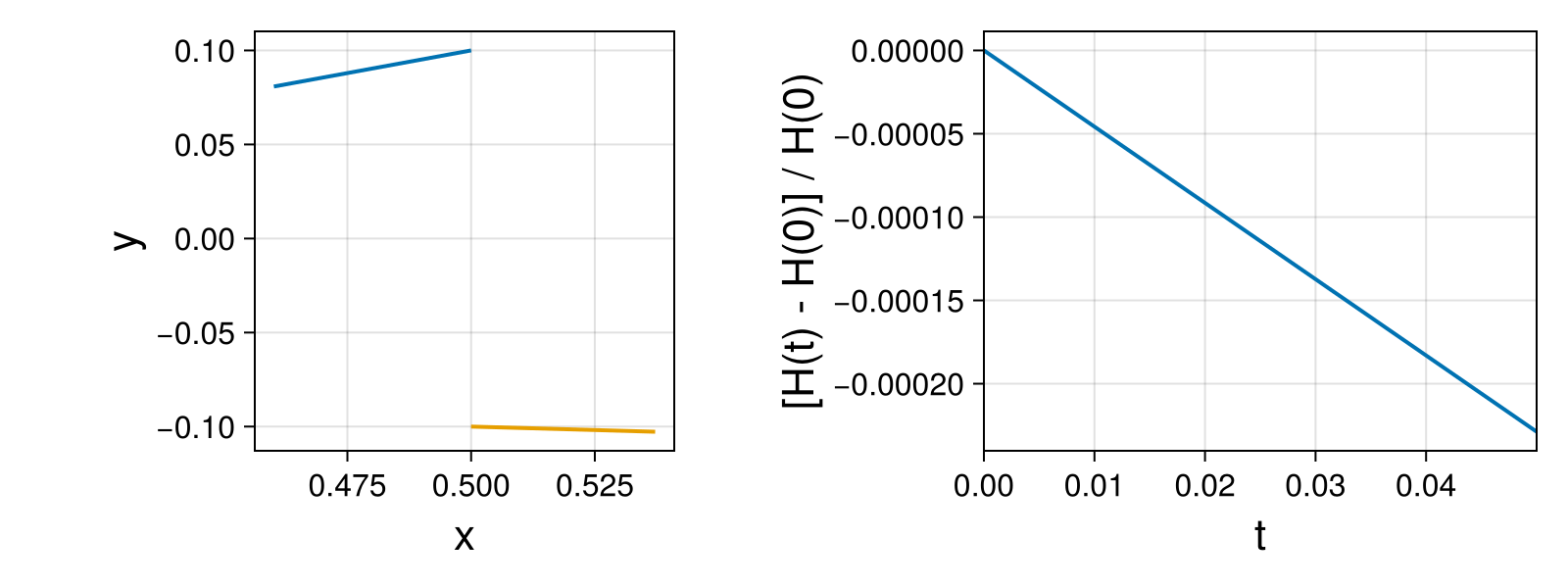

LobattoIIIA(4) with symmetric projection
Simulation crashed after 22 of 10000 time steps: solver error – non-finite direction vector.
LobattoIIIA(4) with symplectic projection
Simulation crashed after 0 of 10000 time steps: singular matrix.

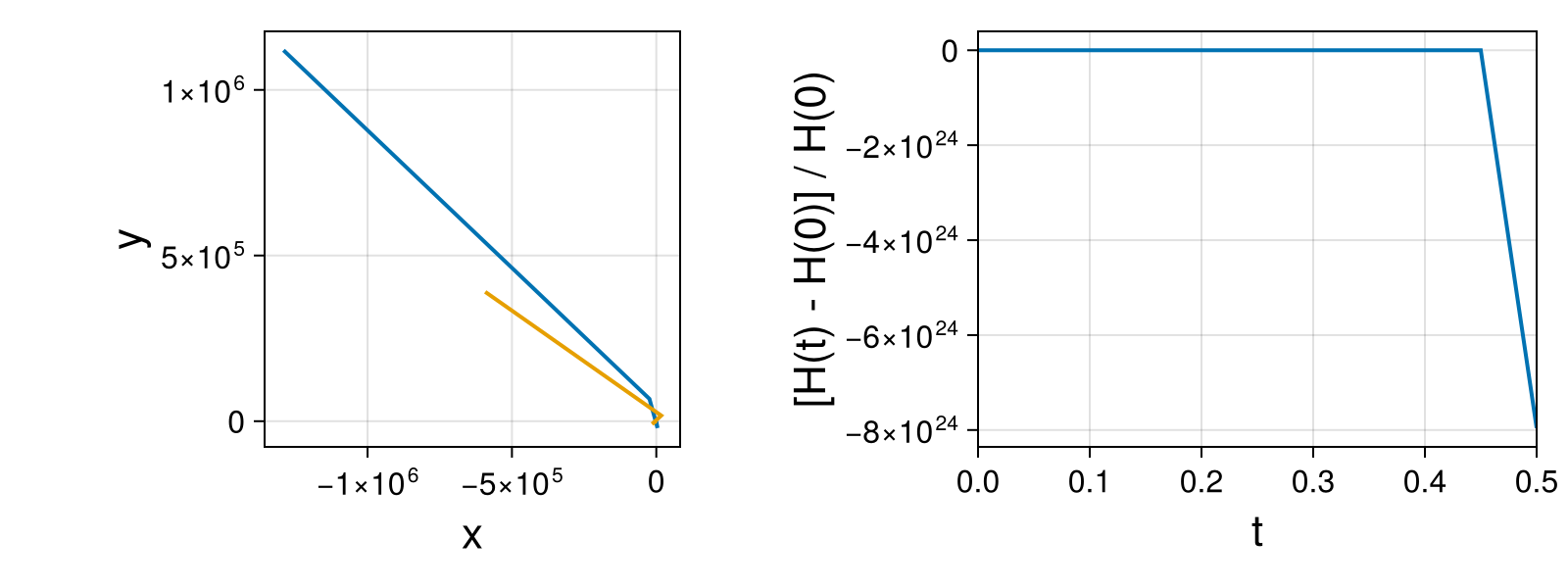

LobattoIIIA(4) with midpoint projection
Simulation crashed after 26 of 10000 time steps: solver error – non-finite direction vector.
LobattoIIIA(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIB(2)
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(2) with standard projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(2) with symmetric projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(2) with symplectic projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(2) with midpoint projection
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIB(3)
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(3) with standard projection
Simulation crashed after 0 of 10000 time steps: singular matrix.

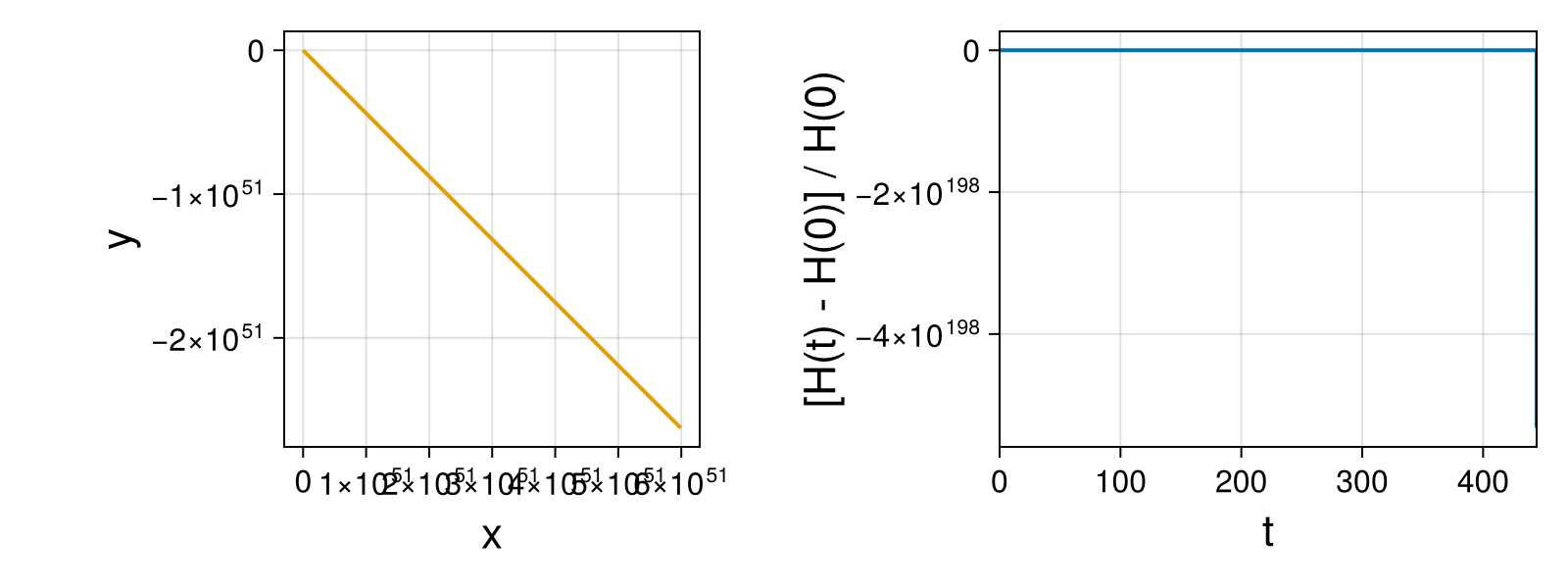

LobattoIIIB(3) with symmetric projection
Simulation crashed after 6271 of 10000 time steps: solver error – non-finite direction vector.
LobattoIIIB(3) with symplectic projection
Simulation crashed after 0 of 10000 time steps: singular matrix.

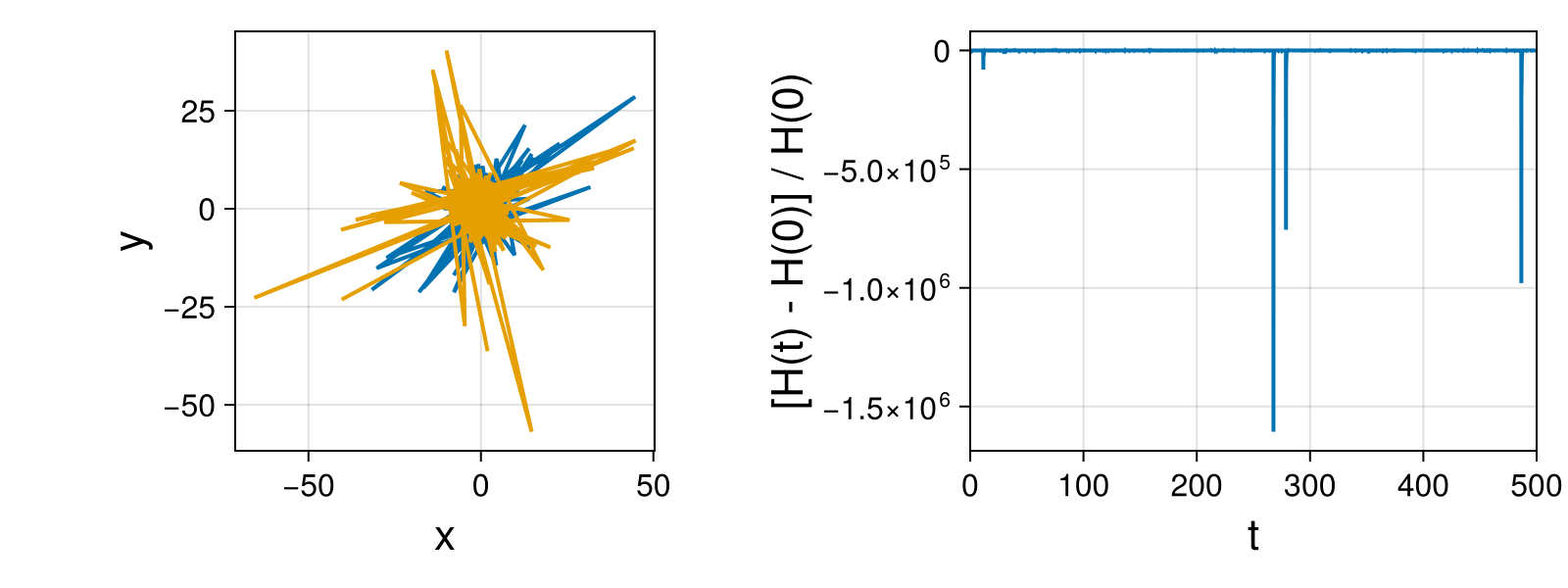

LobattoIIIB(3) with midpoint projection
LobattoIIIB(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIB(4)
Simulation crashed after 0 of 10000 time steps: singular matrix.
LobattoIIIB(4) with standard projection
Simulation crashed after 0 of 10000 time steps: singular matrix.

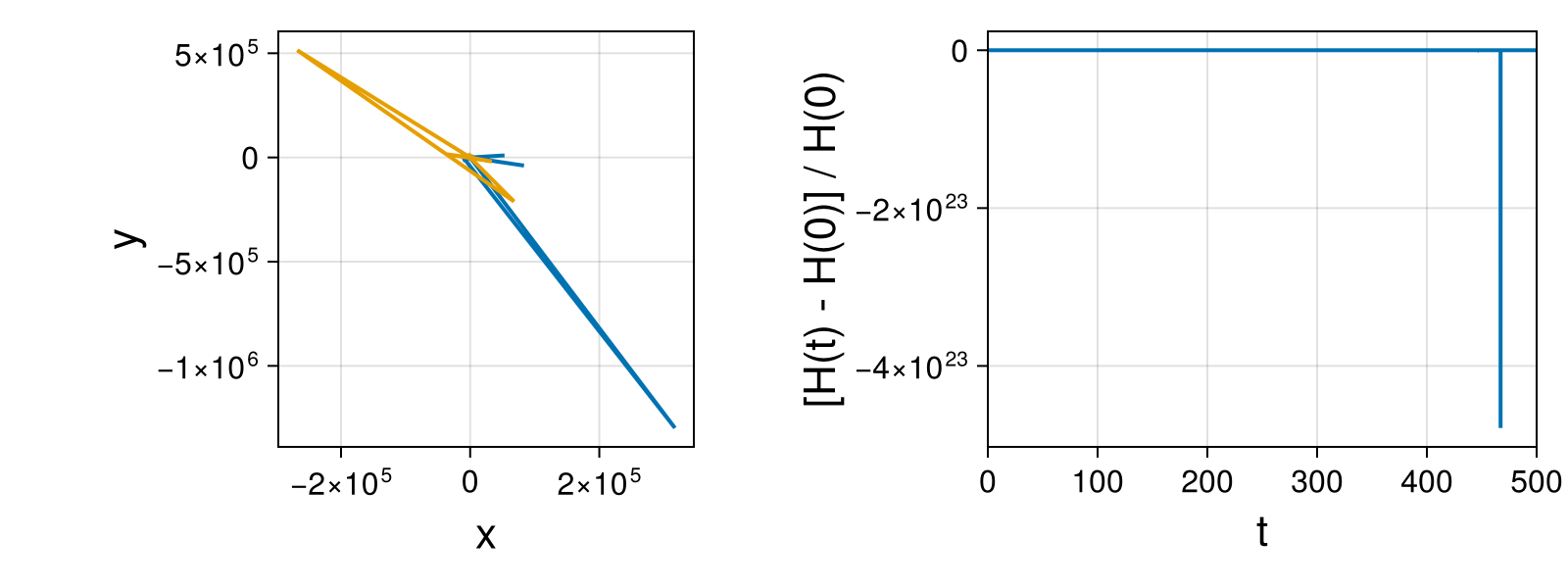

LobattoIIIB(4) with symmetric projection
LobattoIIIB(4) with symplectic projection
Simulation crashed after 0 of 10000 time steps: singular matrix.

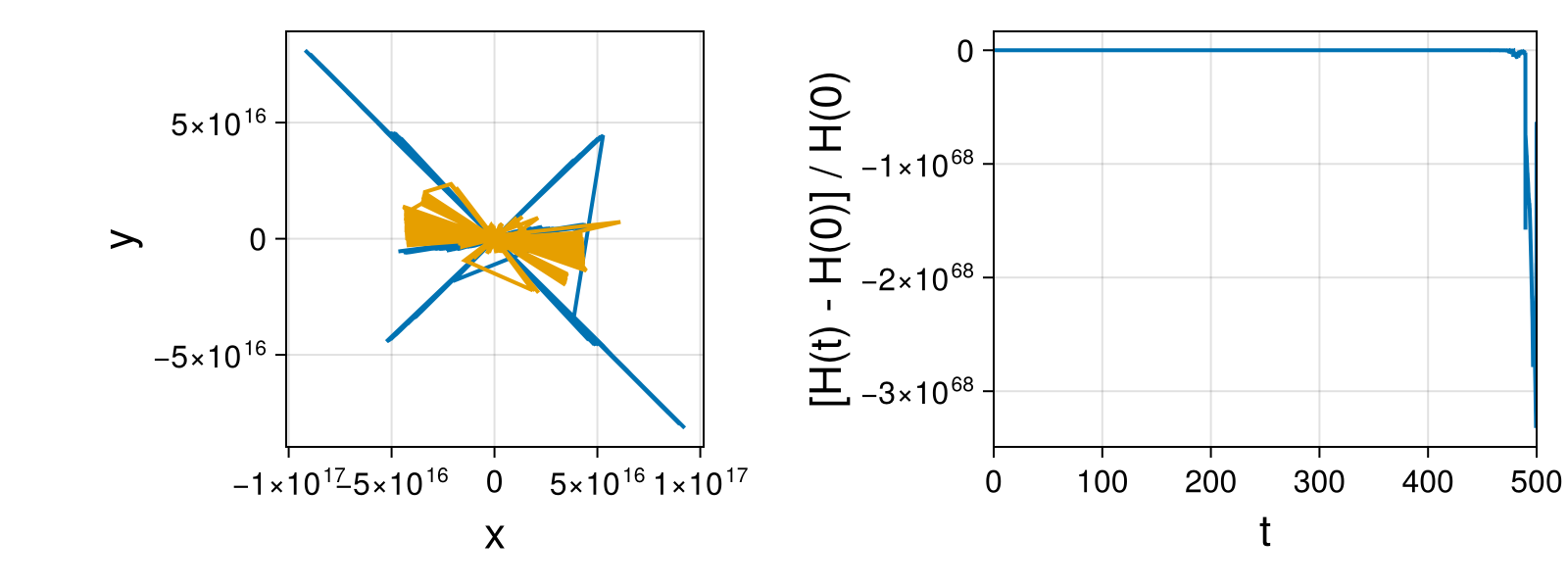

LobattoIIIB(4) with midpoint projection
LobattoIIIB(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

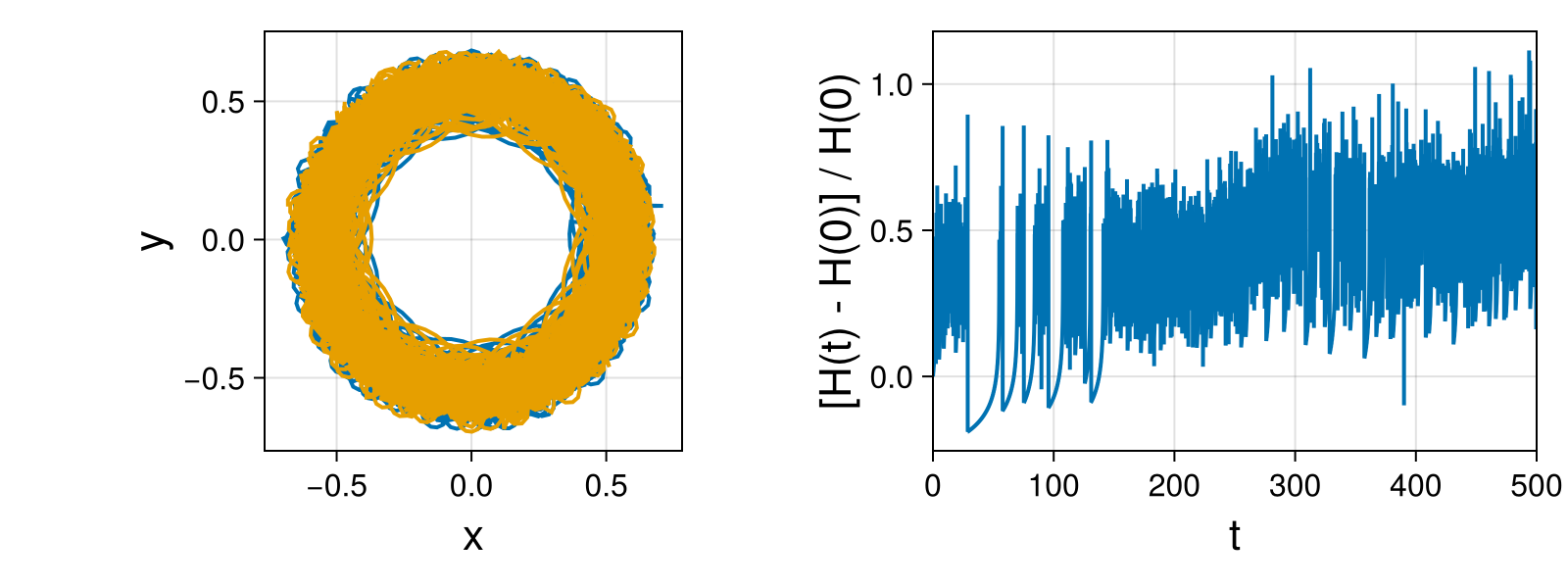

VPRKLobattoIIIC(2)
LobattoIIIC(2) with standard projection

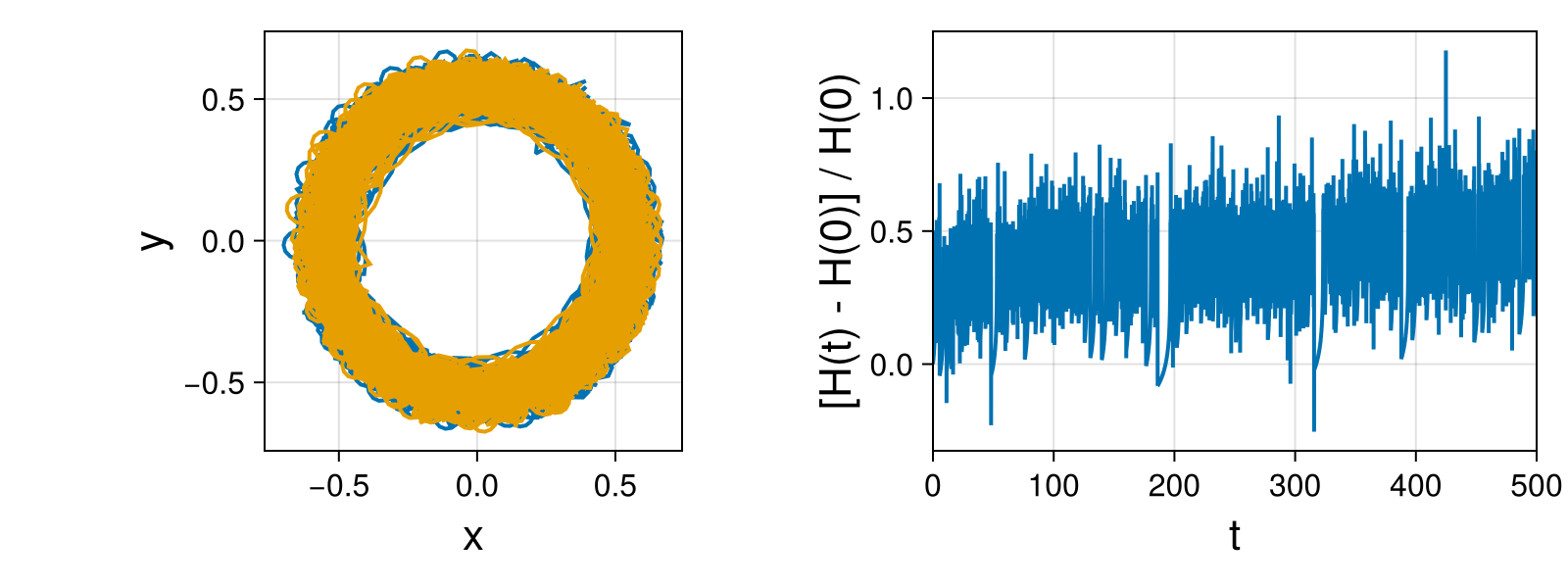

LobattoIIIC(2) with symmetric projection

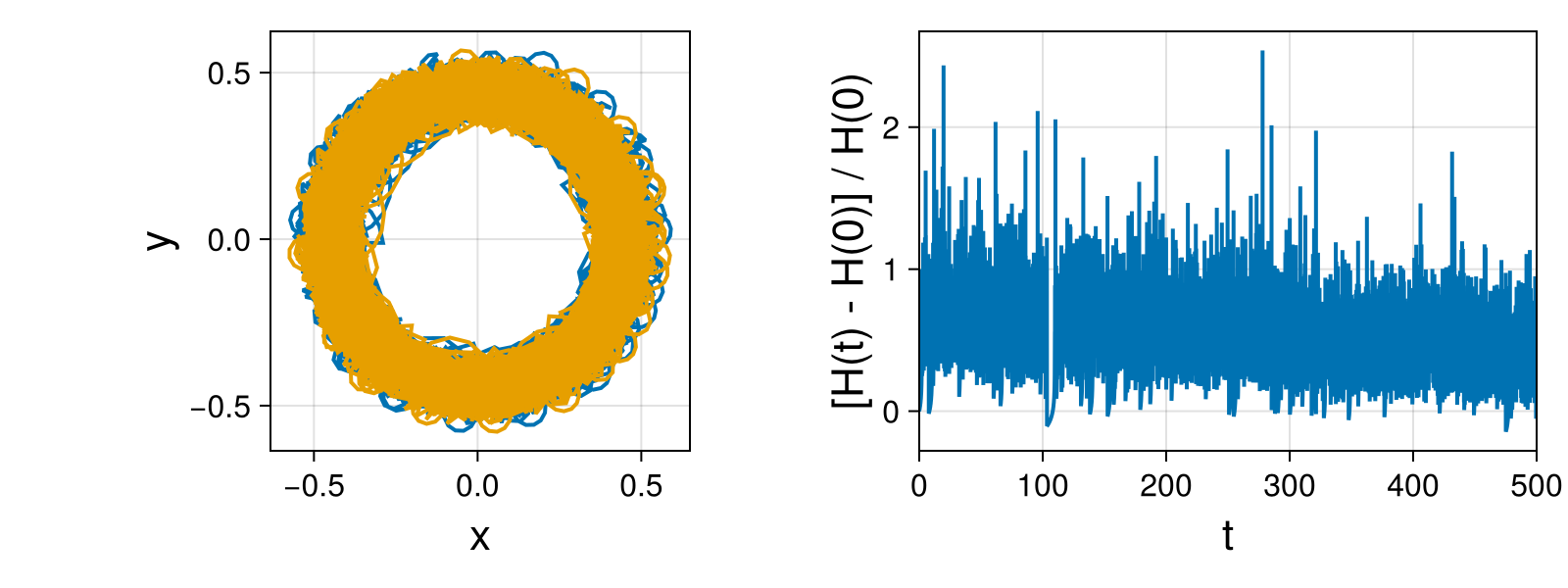

LobattoIIIC(2) with symplectic projection

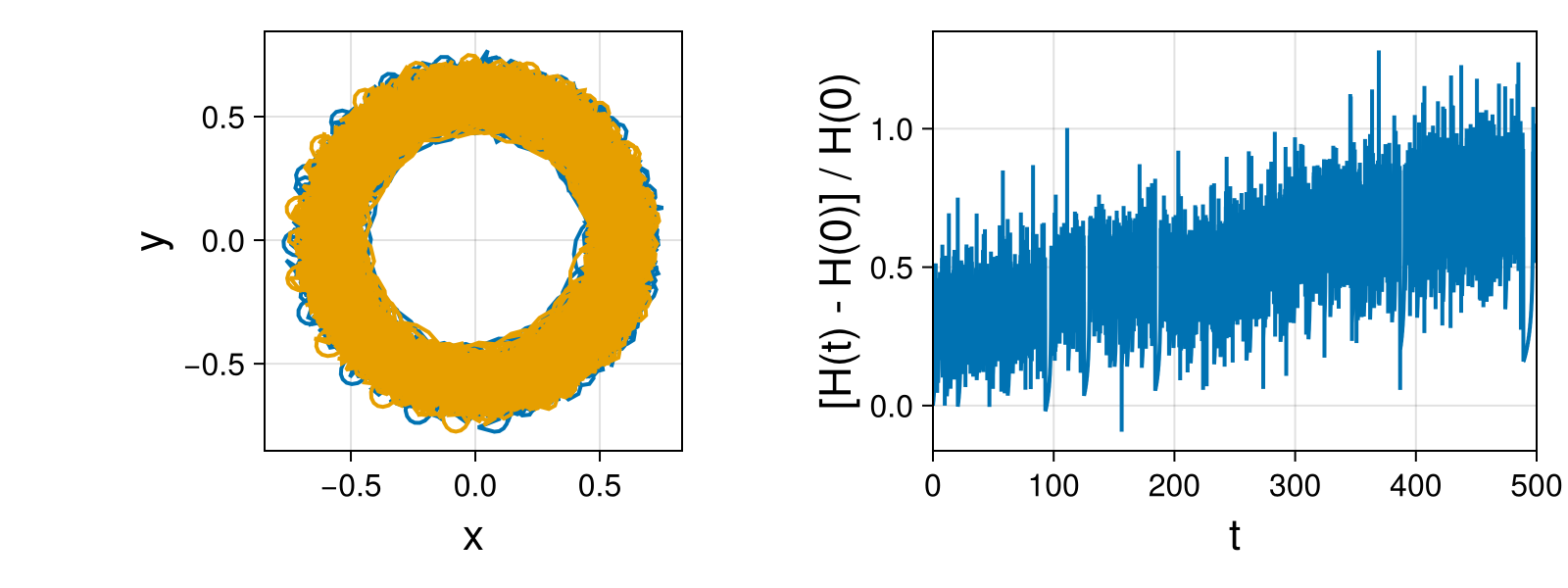

LobattoIIIC(2) with midpoint projection
LobattoIIIC(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIC(3)
LobattoIIIC(3) with standard projection
LobattoIIIC(3) with symmetric projection
LobattoIIIC(3) with symplectic projection
LobattoIIIC(3) with midpoint projection
LobattoIIIC(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIC(4)
LobattoIIIC(4) with standard projection

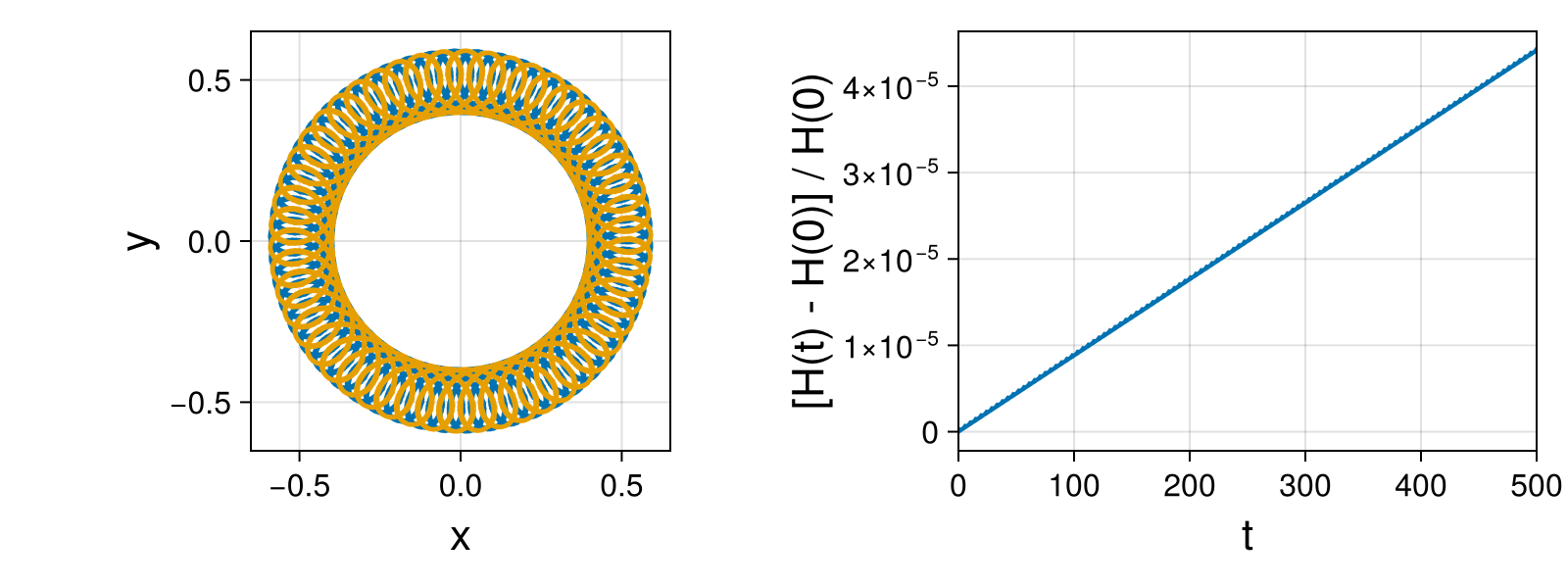

LobattoIIIC(4) with symmetric projection
LobattoIIIC(4) with symplectic projection
LobattoIIIC(4) with midpoint projection
LobattoIIIC(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

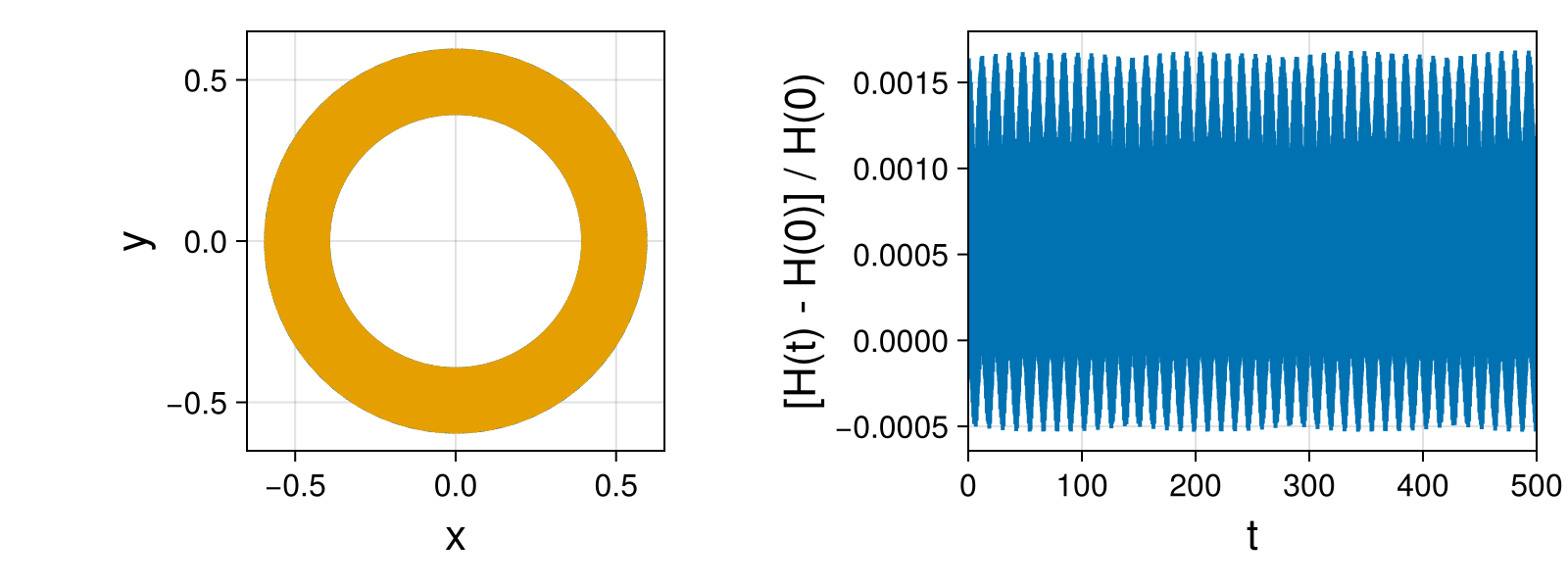

VPRKLobattoIIID(2)

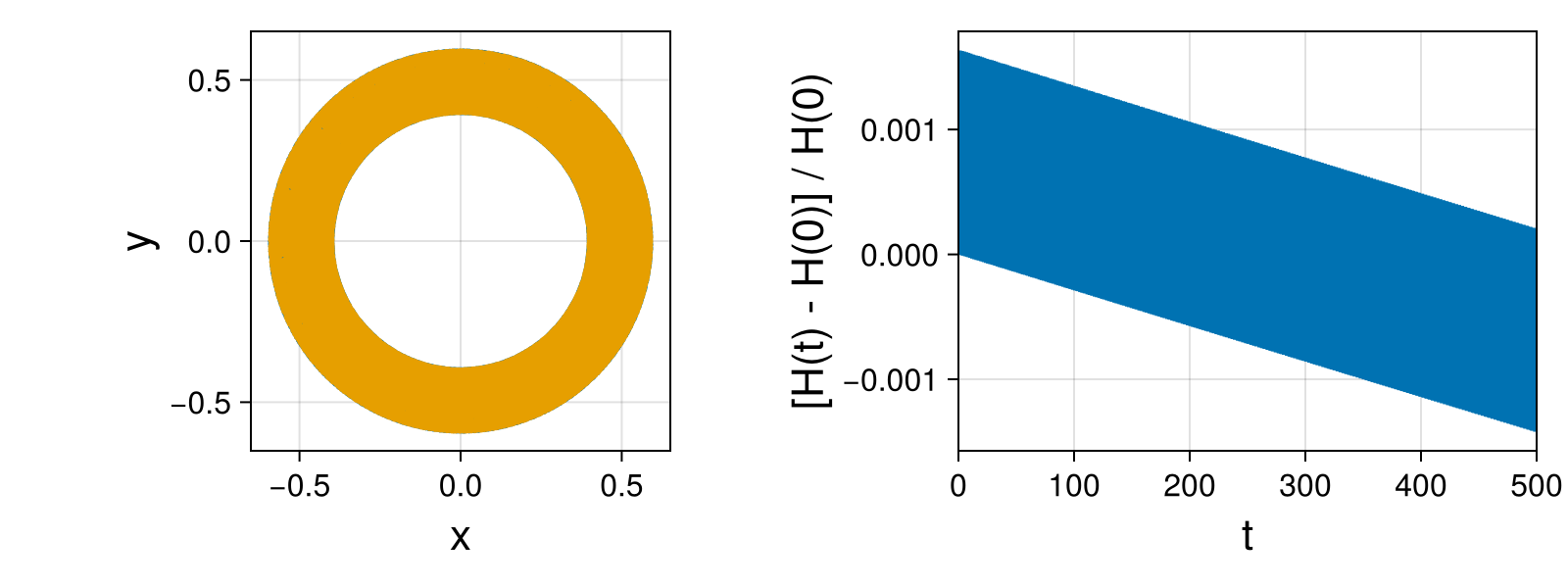

LobattoIIID(2) with standard projection
LobattoIIID(2) with symmetric projection
LobattoIIID(2) with symplectic projection
LobattoIIID(2) with midpoint projection
LobattoIIID(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

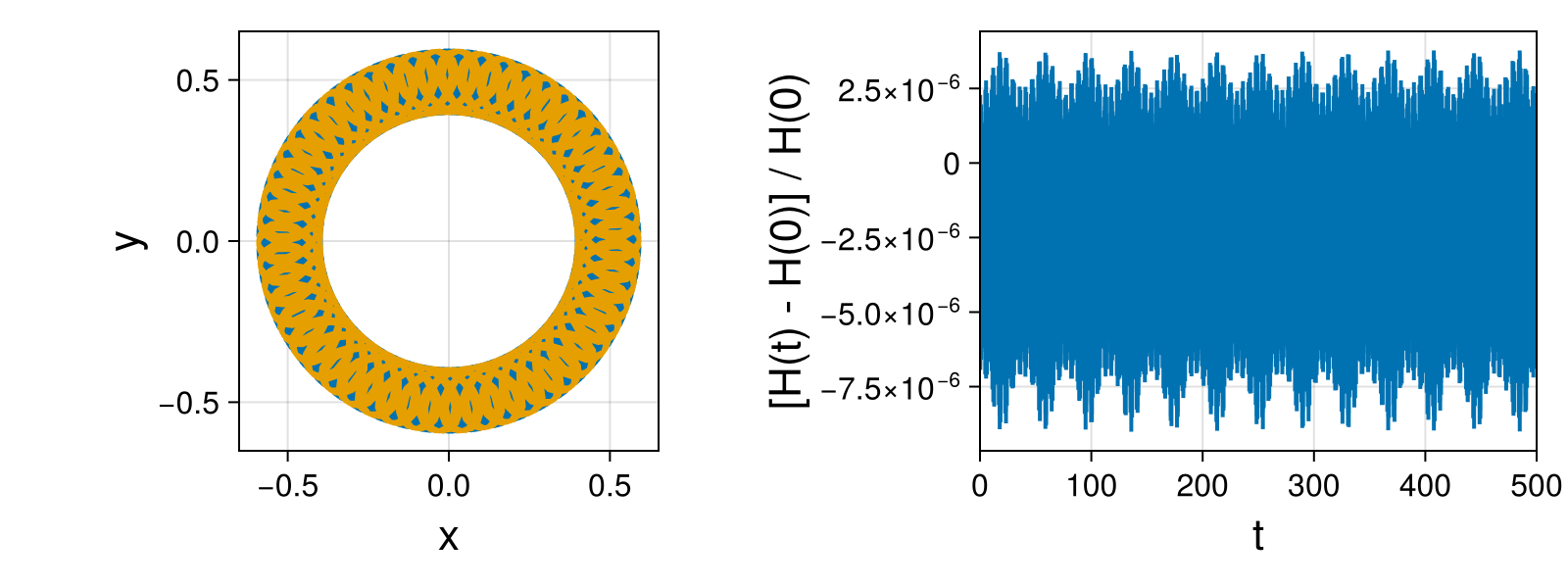

VPRKLobattoIIID(3)

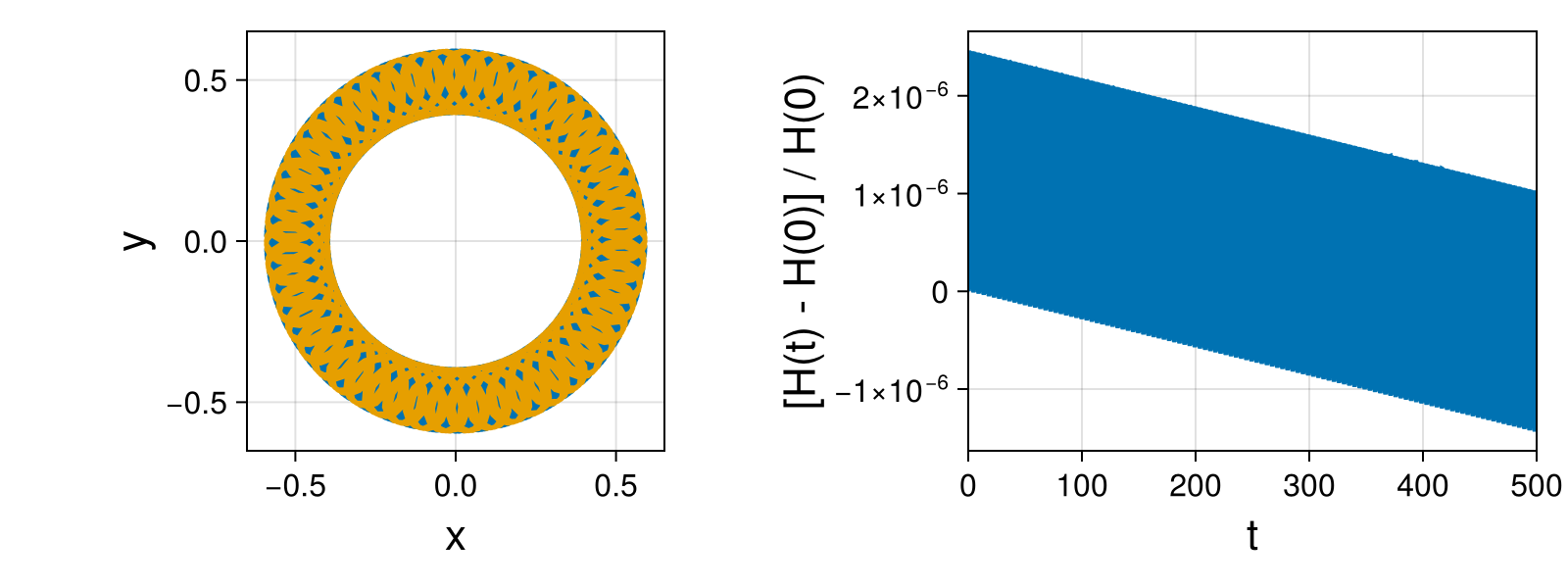

LobattoIIID(3) with standard projection
LobattoIIID(3) with symmetric projection
LobattoIIID(3) with symplectic projection
LobattoIIID(3) with midpoint projection
LobattoIIID(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIID(4)
LobattoIIID(4) with standard projection
LobattoIIID(4) with symmetric projection

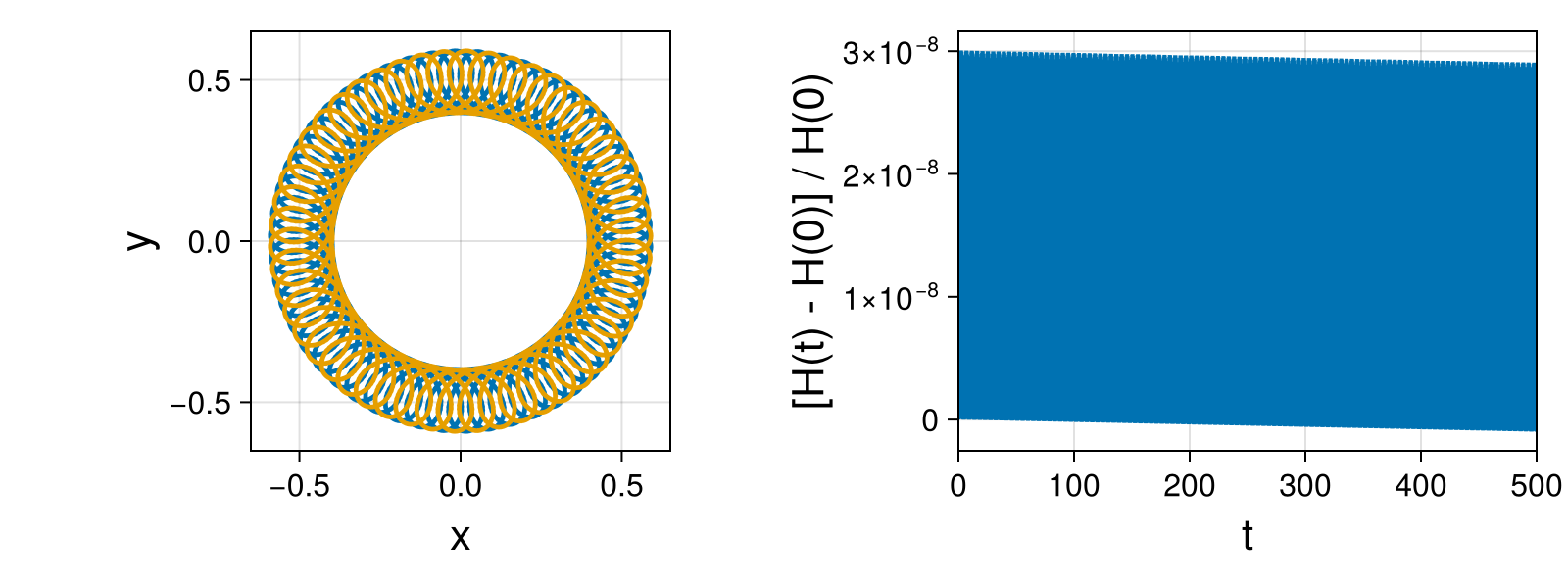

LobattoIIID(4) with symplectic projection
LobattoIIID(4) with midpoint projection
LobattoIIID(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

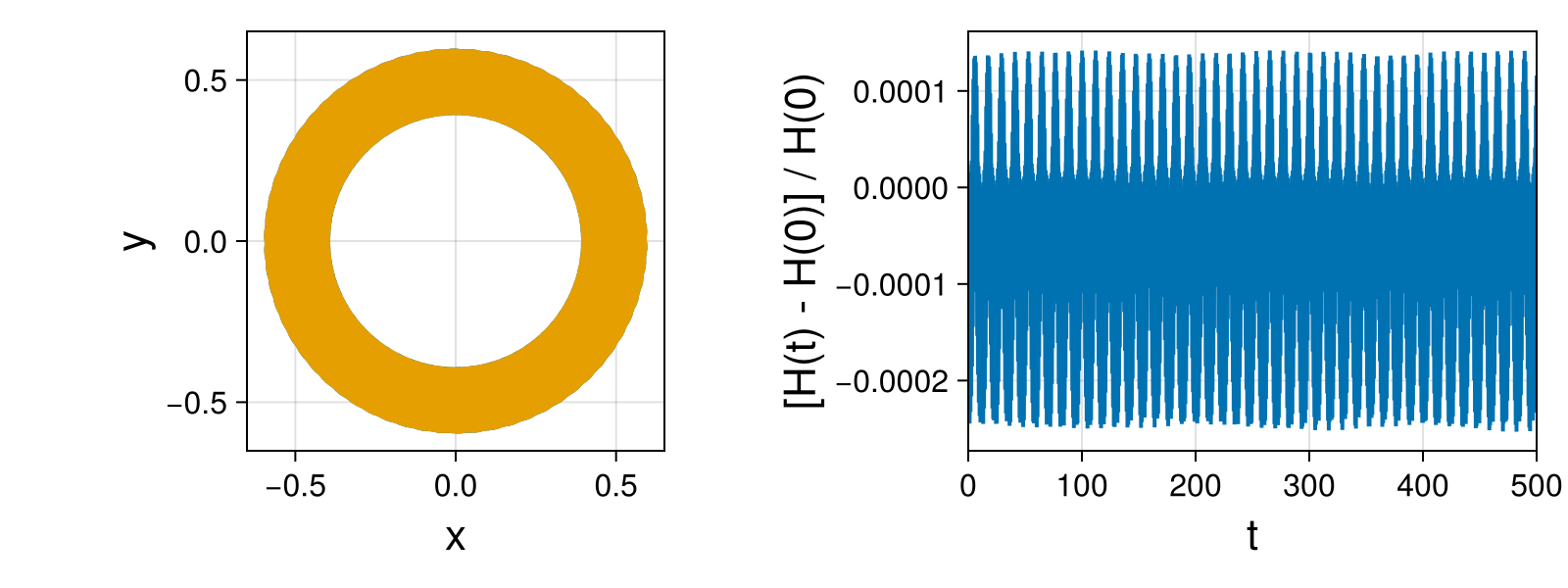

VPRKLobattoIIIE(2)

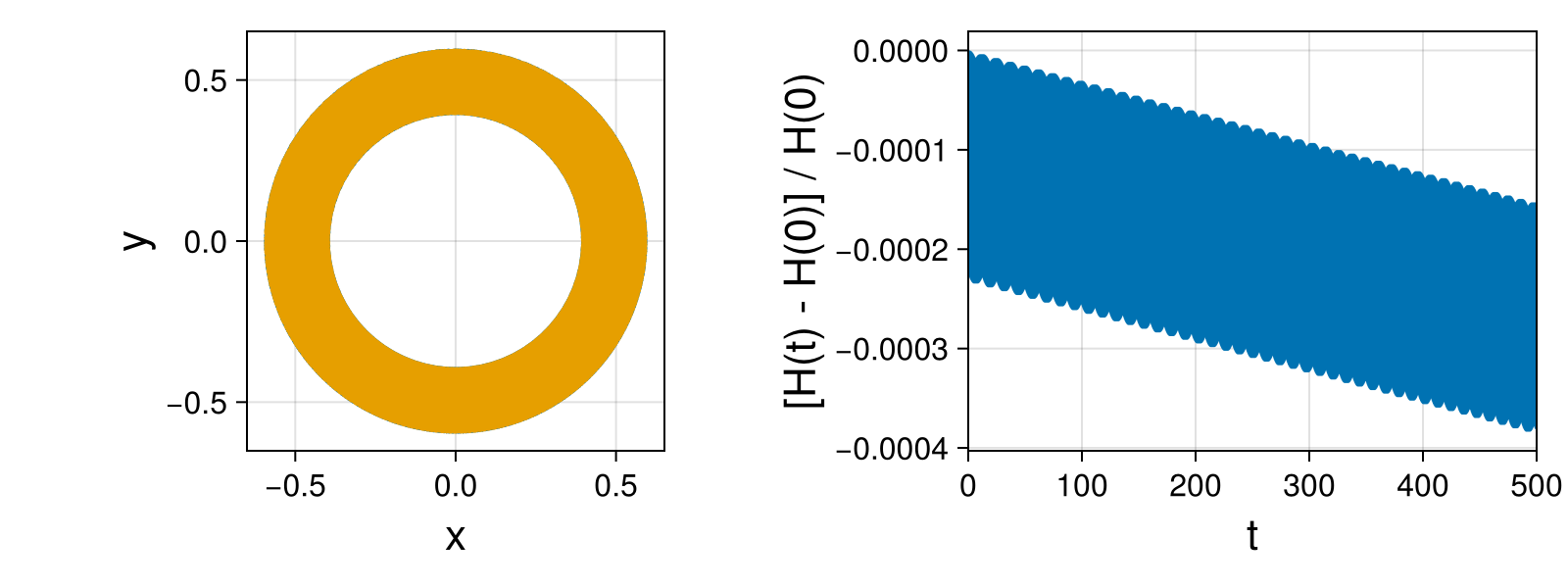

LobattoIIIE(2) with standard projection

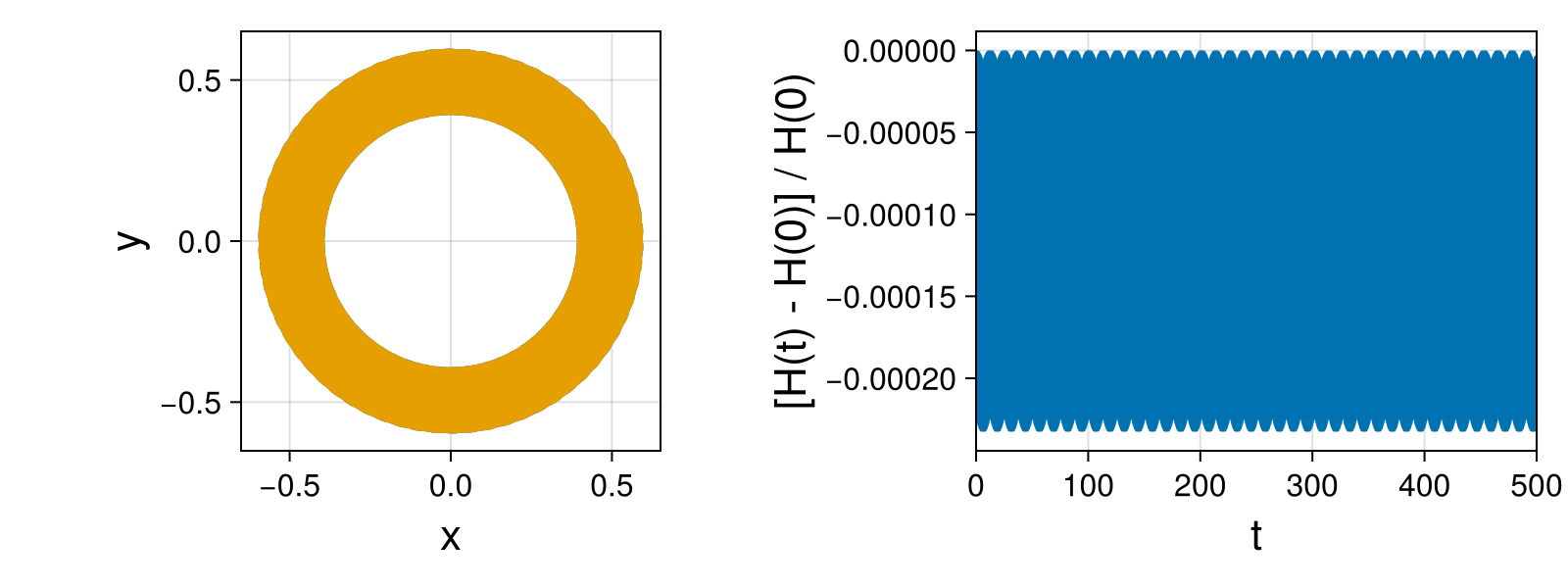

LobattoIIIE(2) with symmetric projection
LobattoIIIE(2) with symplectic projection
LobattoIIIE(2) with midpoint projection
LobattoIIIE(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIE(3)
LobattoIIIE(3) with standard projection
LobattoIIIE(3) with symmetric projection

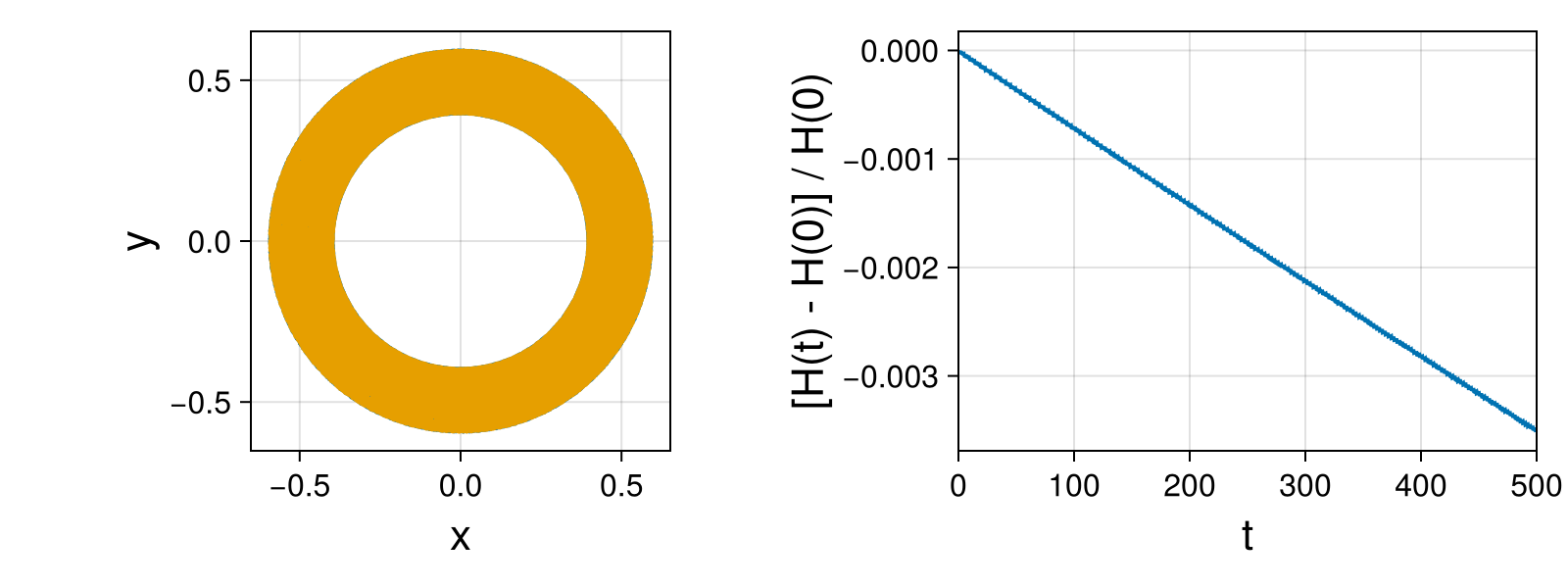

LobattoIIIE(3) with symplectic projection

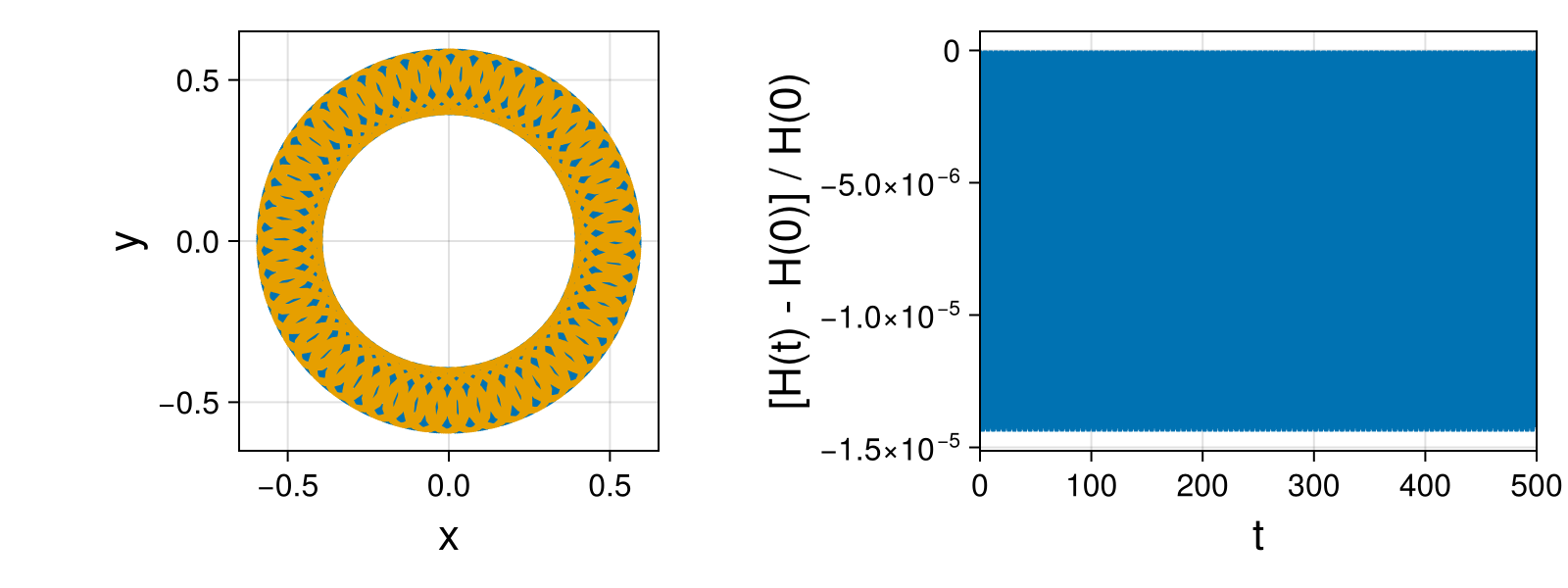

LobattoIIIE(3) with midpoint projection
LobattoIIIE(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

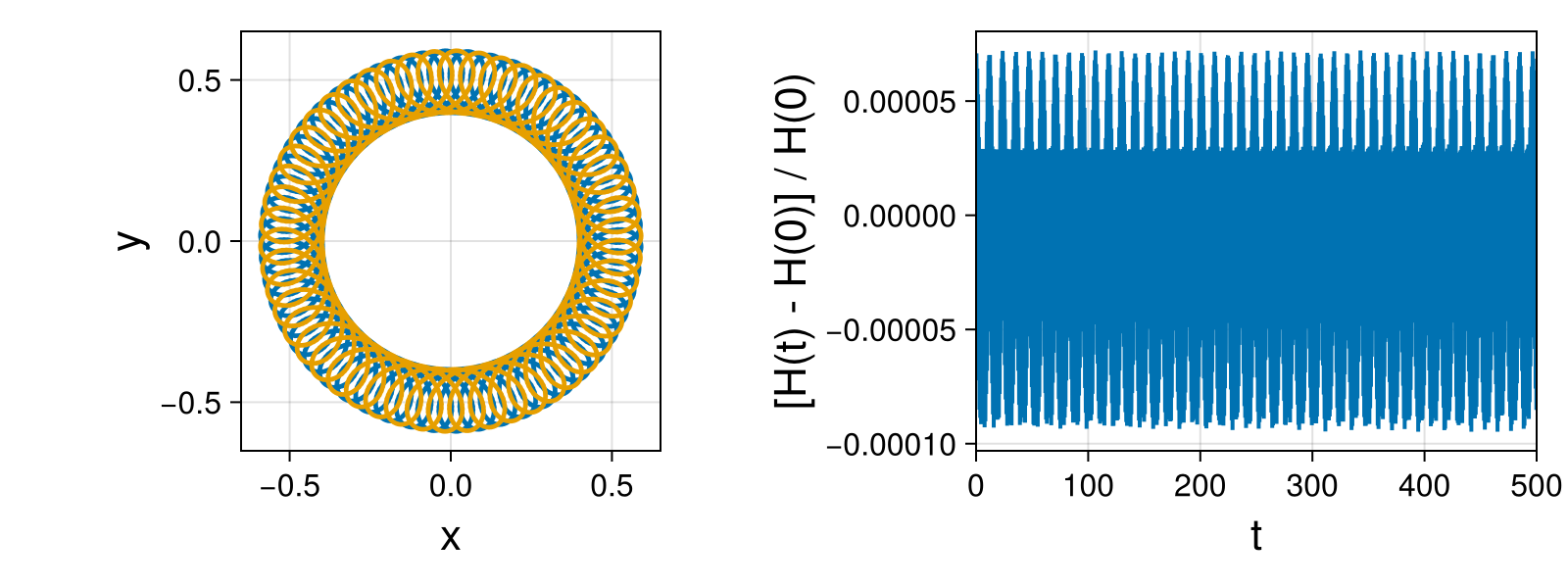

VPRKLobattoIIIE(4)
LobattoIIIE(4) with standard projection

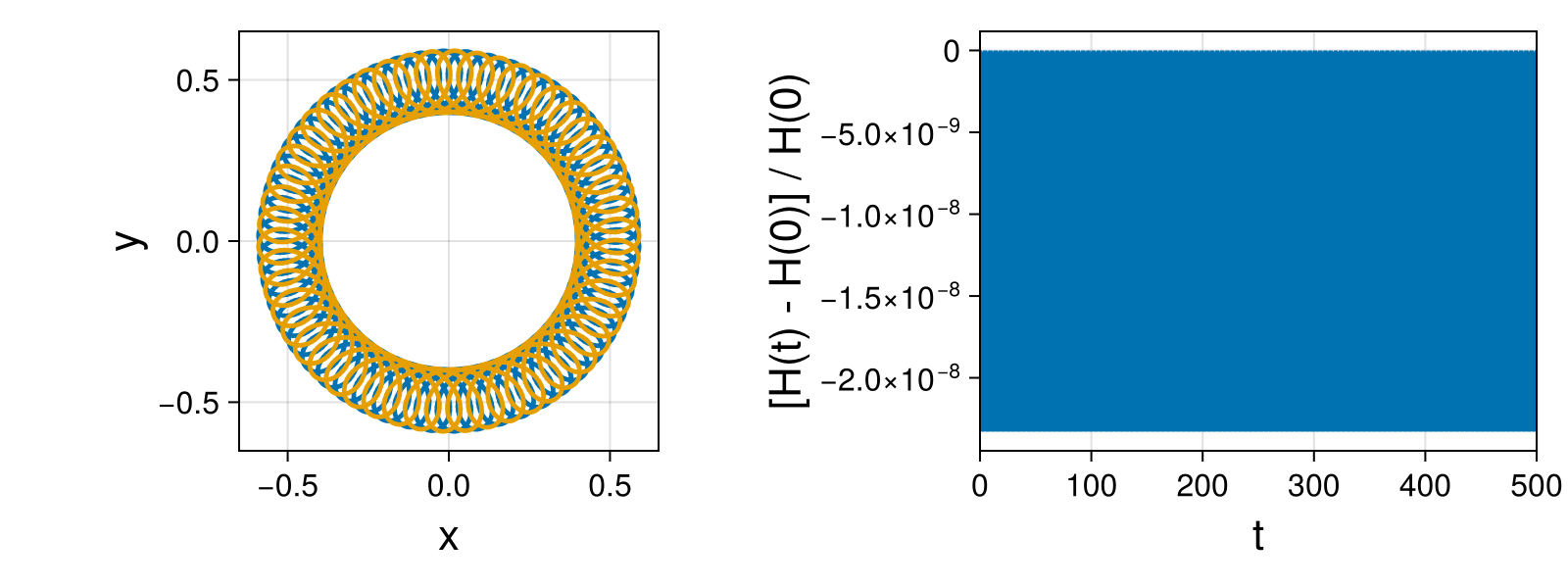

LobattoIIIE(4) with symmetric projection

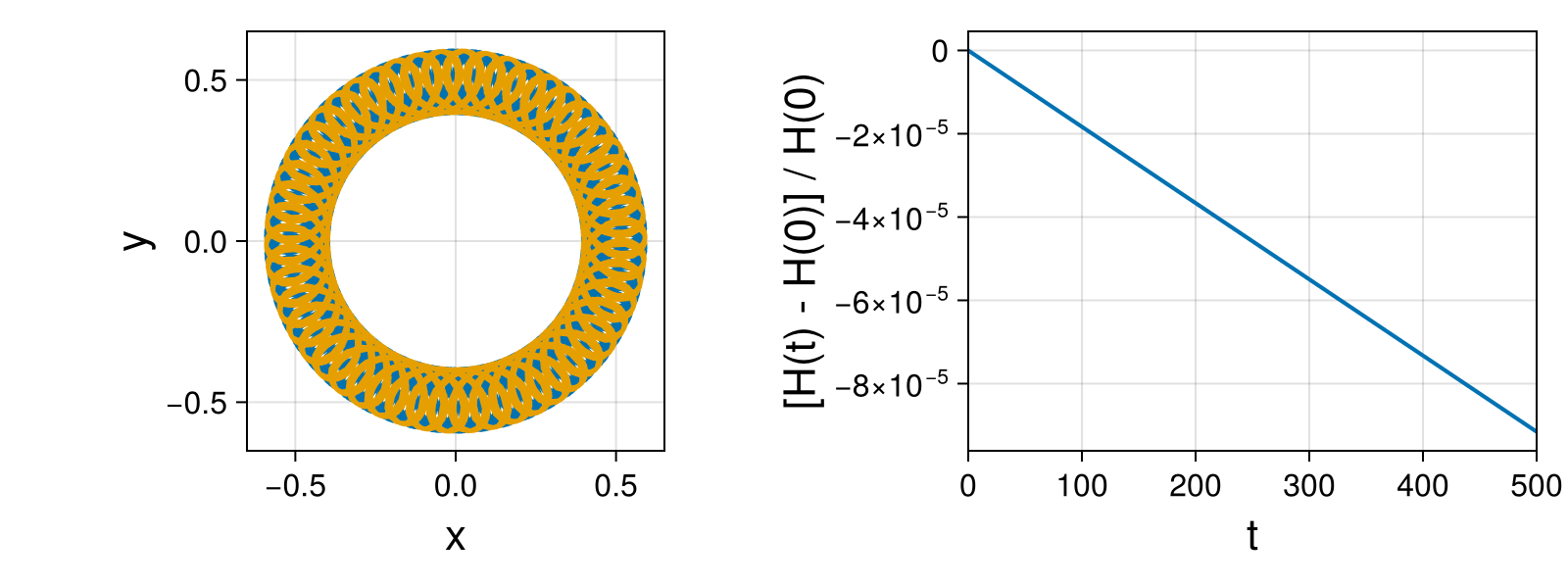

LobattoIIIE(4) with symplectic projection
LobattoIIIE(4) with midpoint projection
LobattoIIIE(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

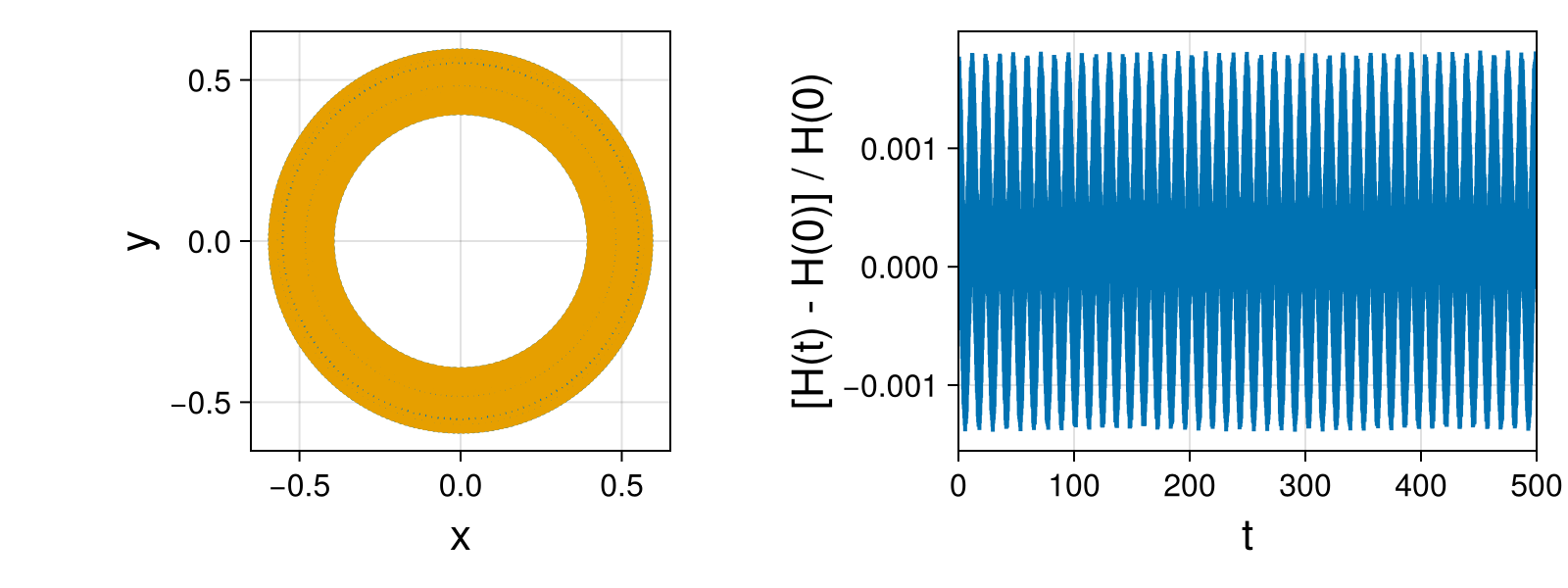

VPRKLobattoIIIF(2)

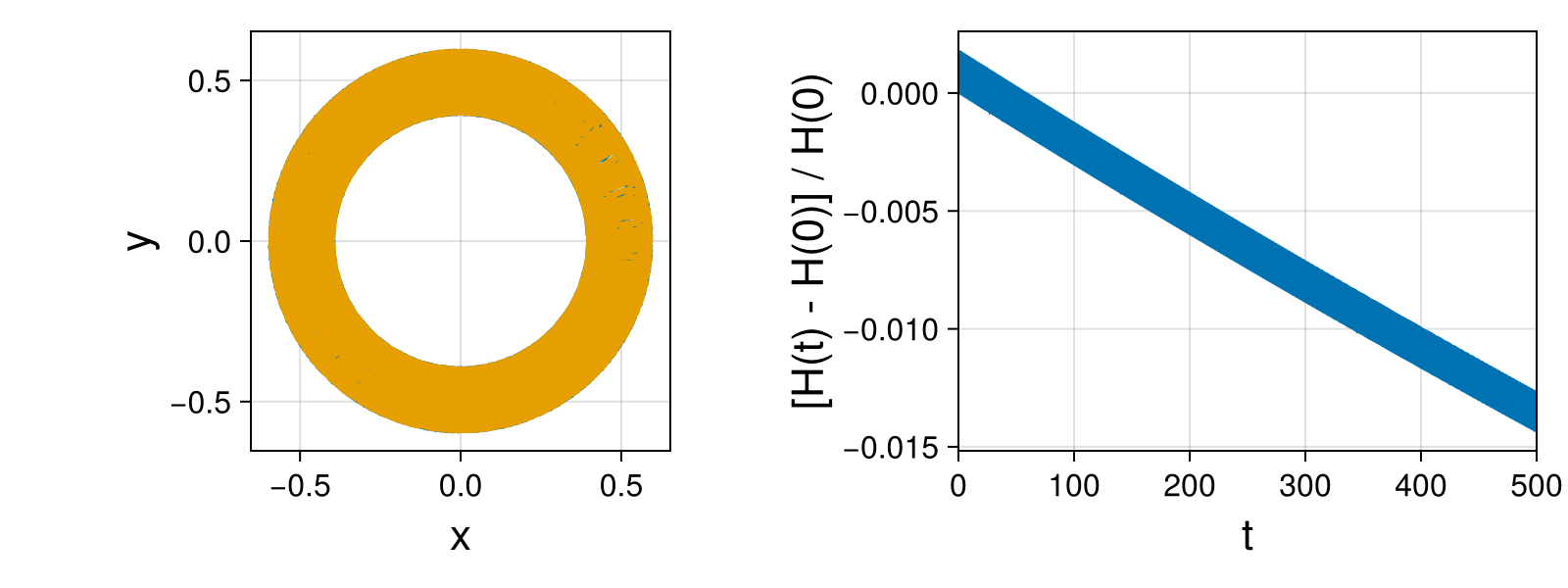

LobattoIIIF(2) with standard projection
LobattoIIIF(2) with symmetric projection
LobattoIIIF(2) with symplectic projection
LobattoIIIF(2) with midpoint projection
LobattoIIIF(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

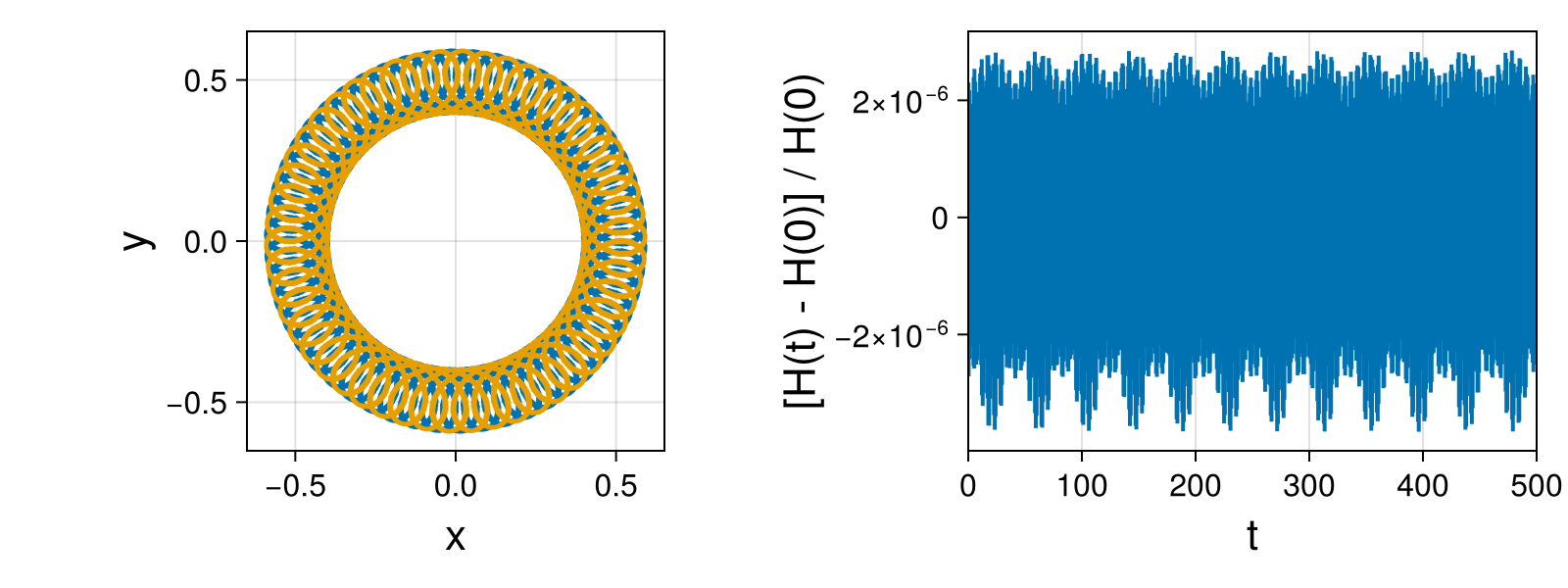

VPRKLobattoIIIF(3)

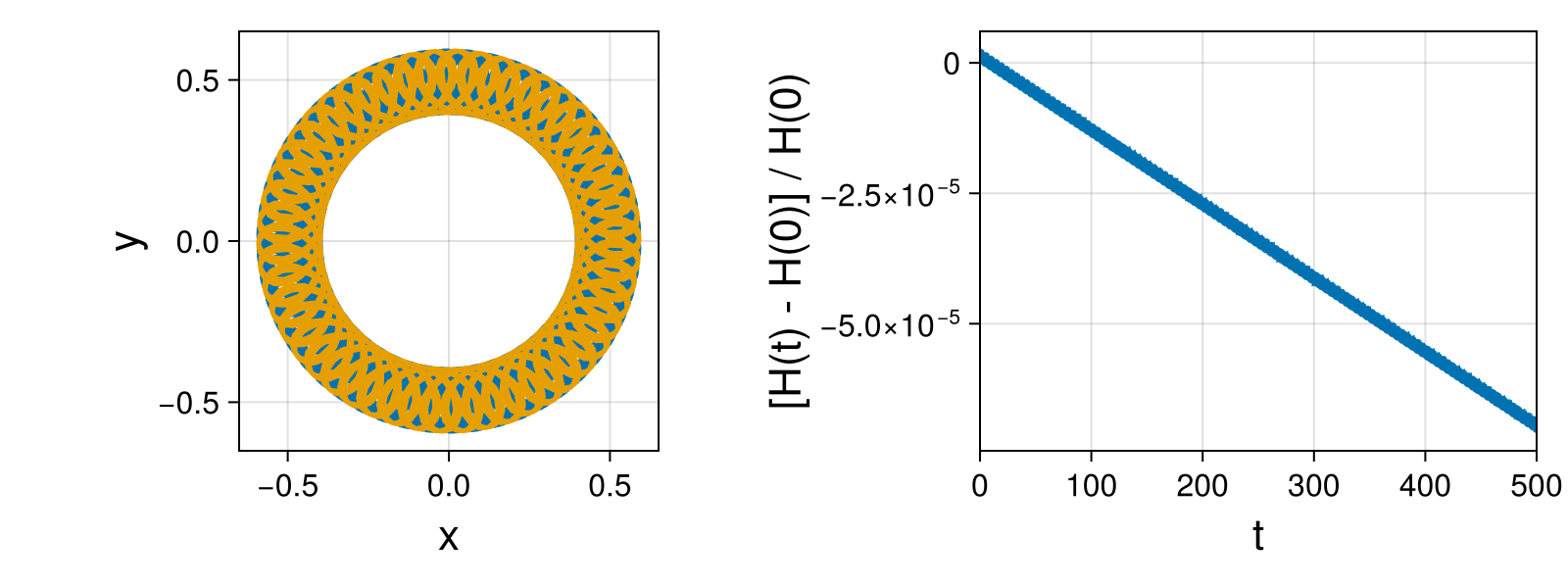

LobattoIIIF(3) with standard projection

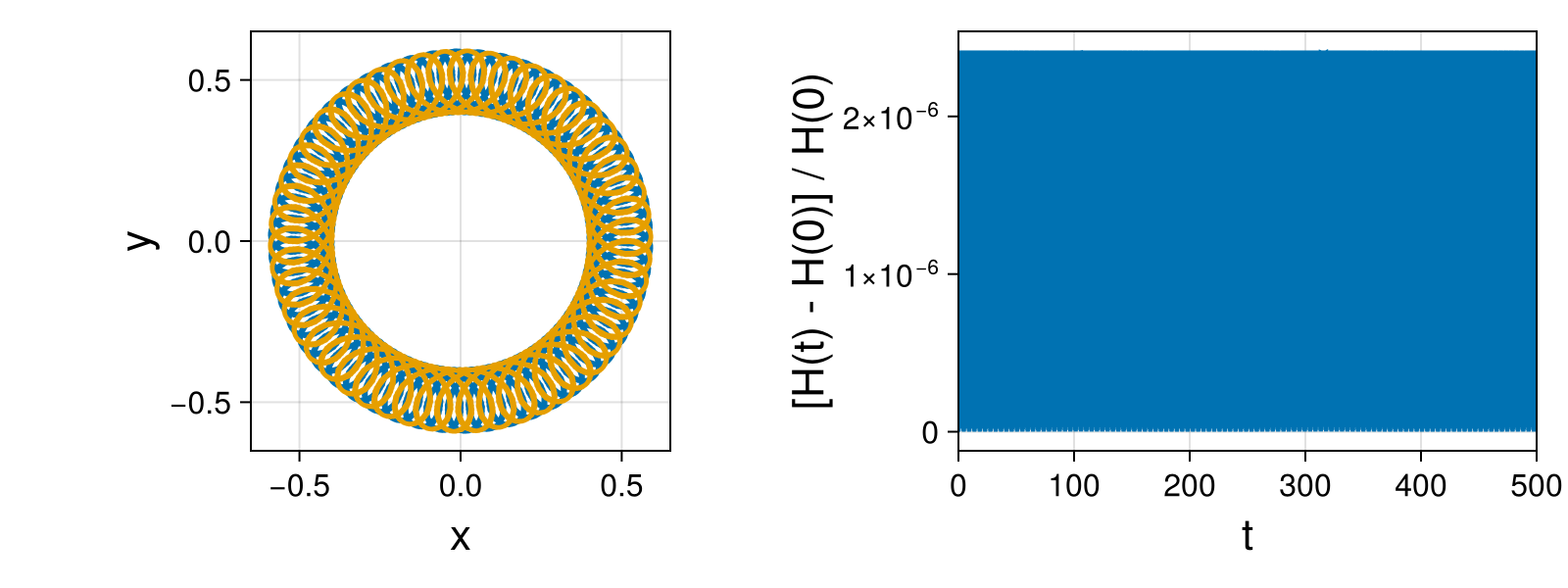

LobattoIIIF(3) with symmetric projection
LobattoIIIF(3) with symplectic projection
LobattoIIIF(3) with midpoint projection
LobattoIIIF(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

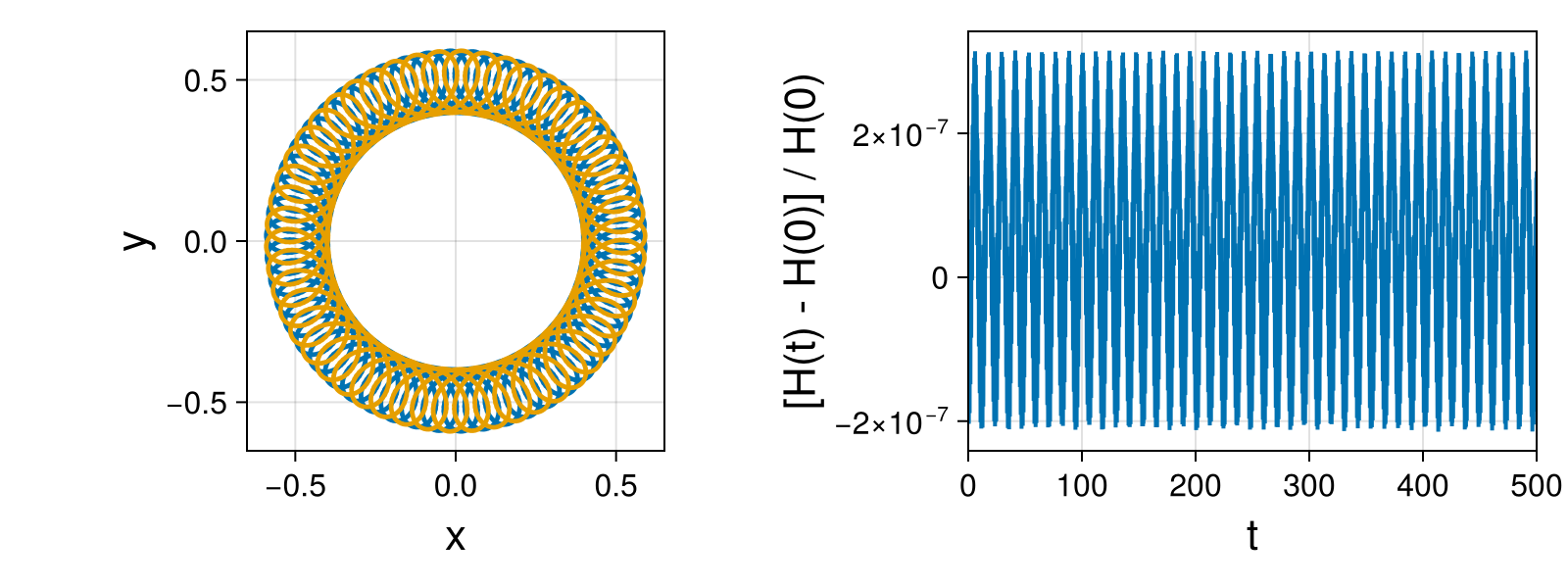

VPRKLobattoIIIF(4)
LobattoIIIF(4) with standard projection
LobattoIIIF(4) with symmetric projection

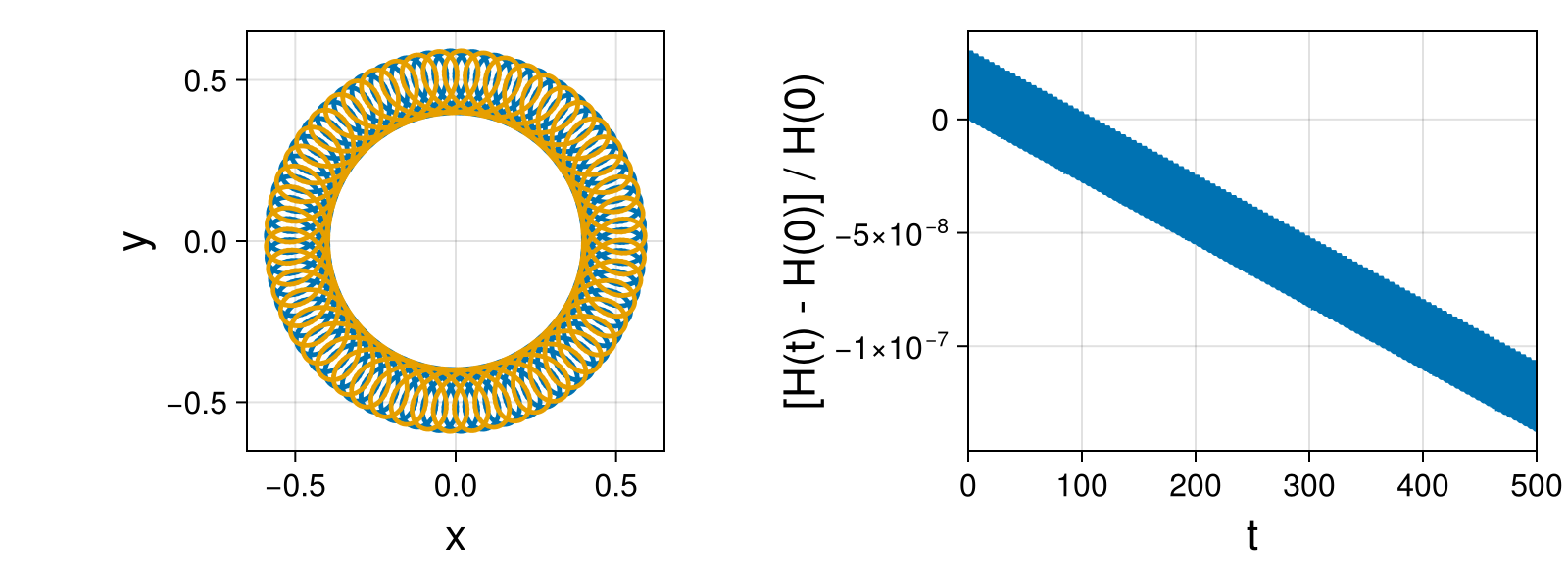

LobattoIIIF(4) with symplectic projection

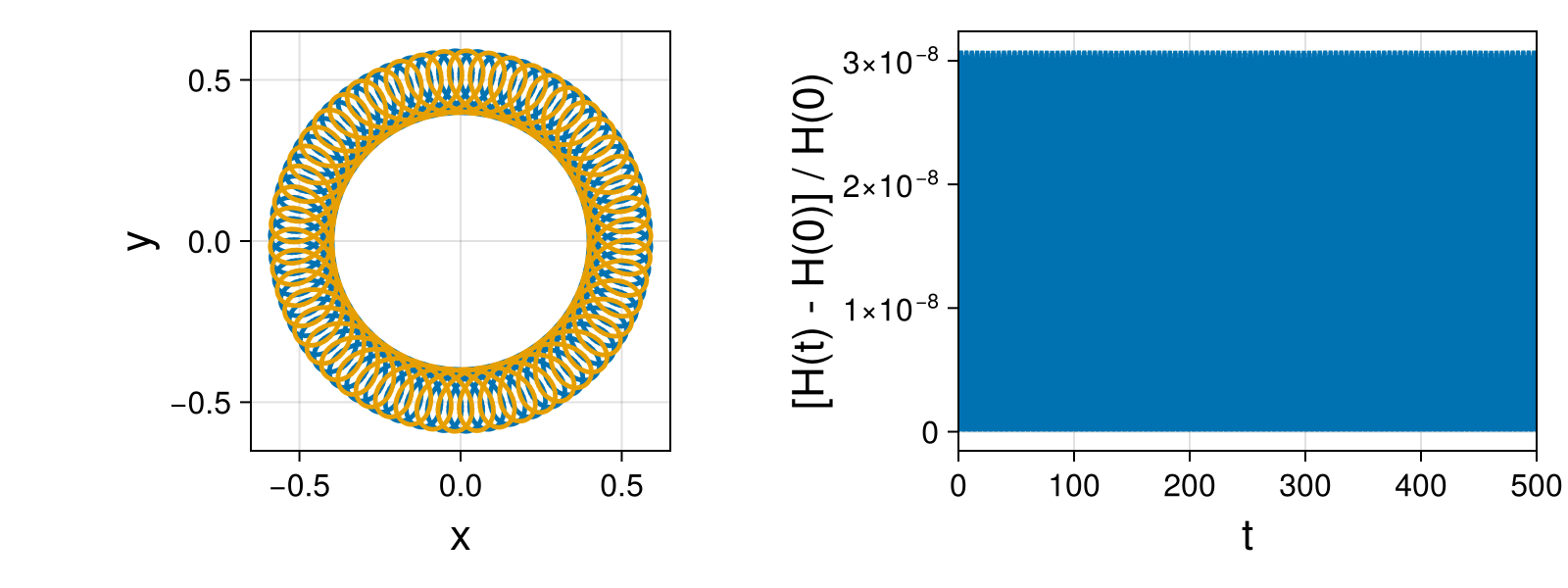

LobattoIIIF(4) with midpoint projection
LobattoIIIF(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
VPRKLobattoIIIG(2)
LobattoIIIG(2) with standard projection
LobattoIIIG(2) with symmetric projection

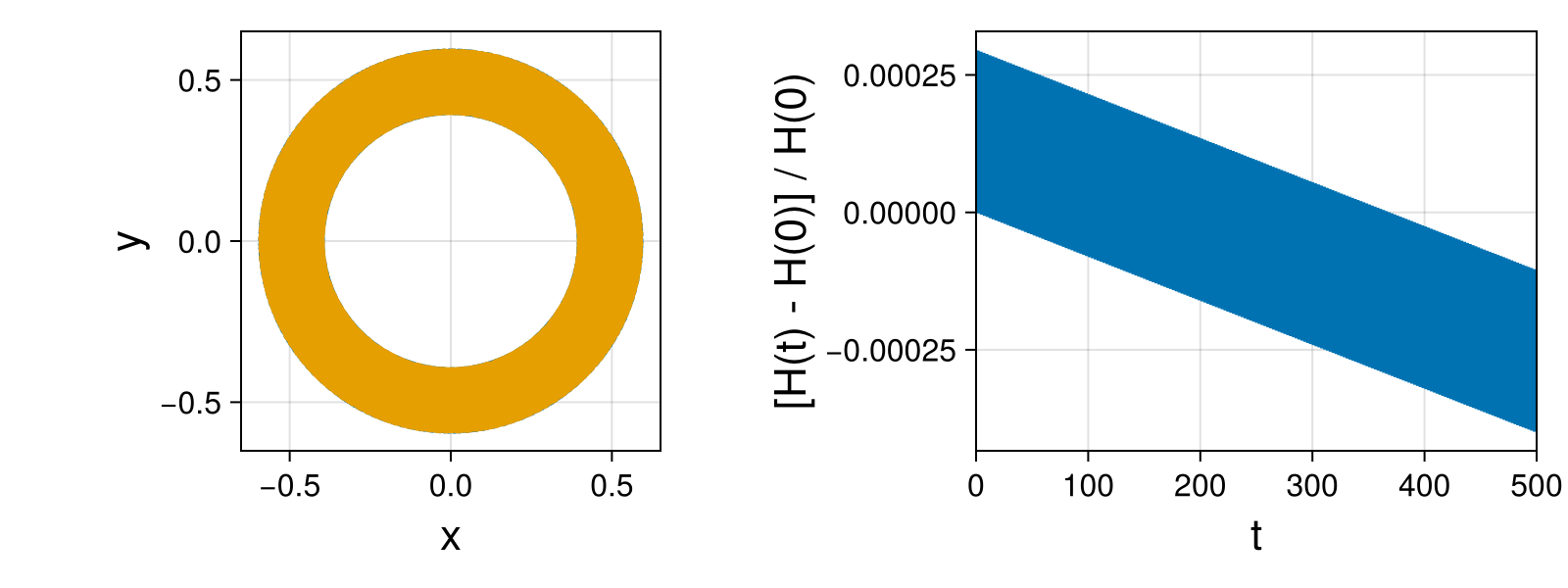

LobattoIIIG(2) with symplectic projection
LobattoIIIG(2) with midpoint projection
LobattoIIIG(2) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

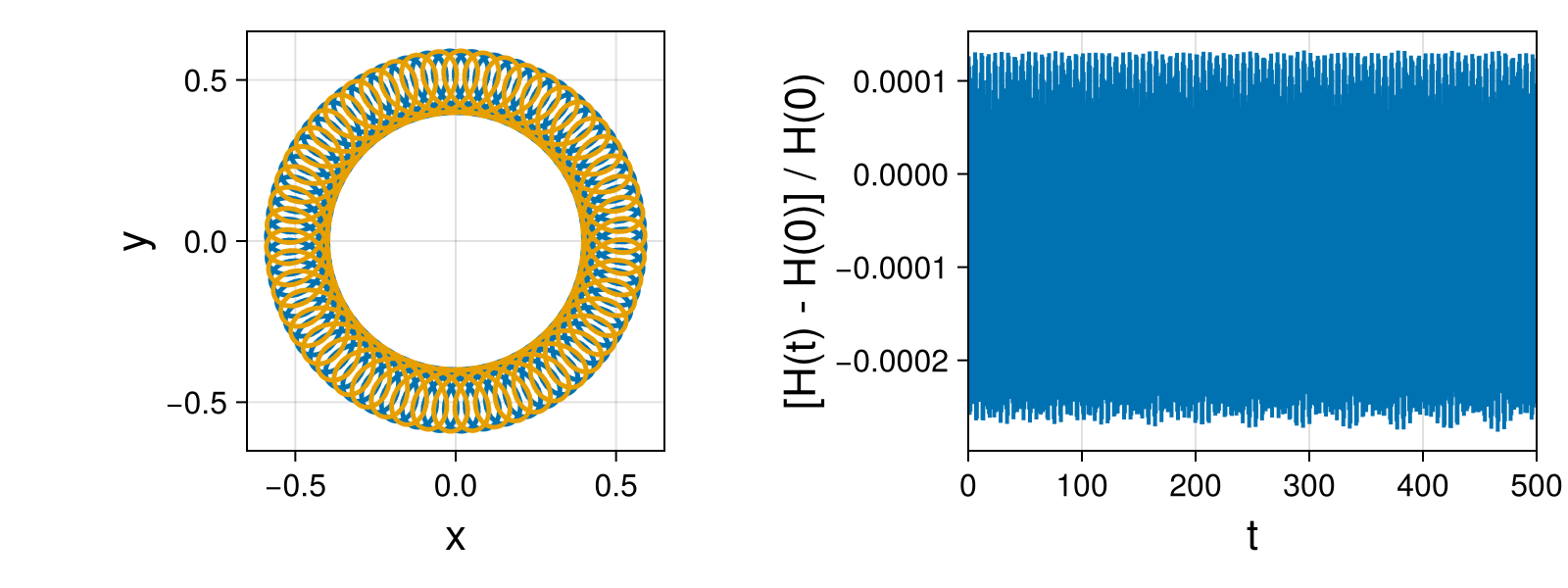

VPRKLobattoIIIG(3)
LobattoIIIG(3) with standard projection
LobattoIIIG(3) with symmetric projection

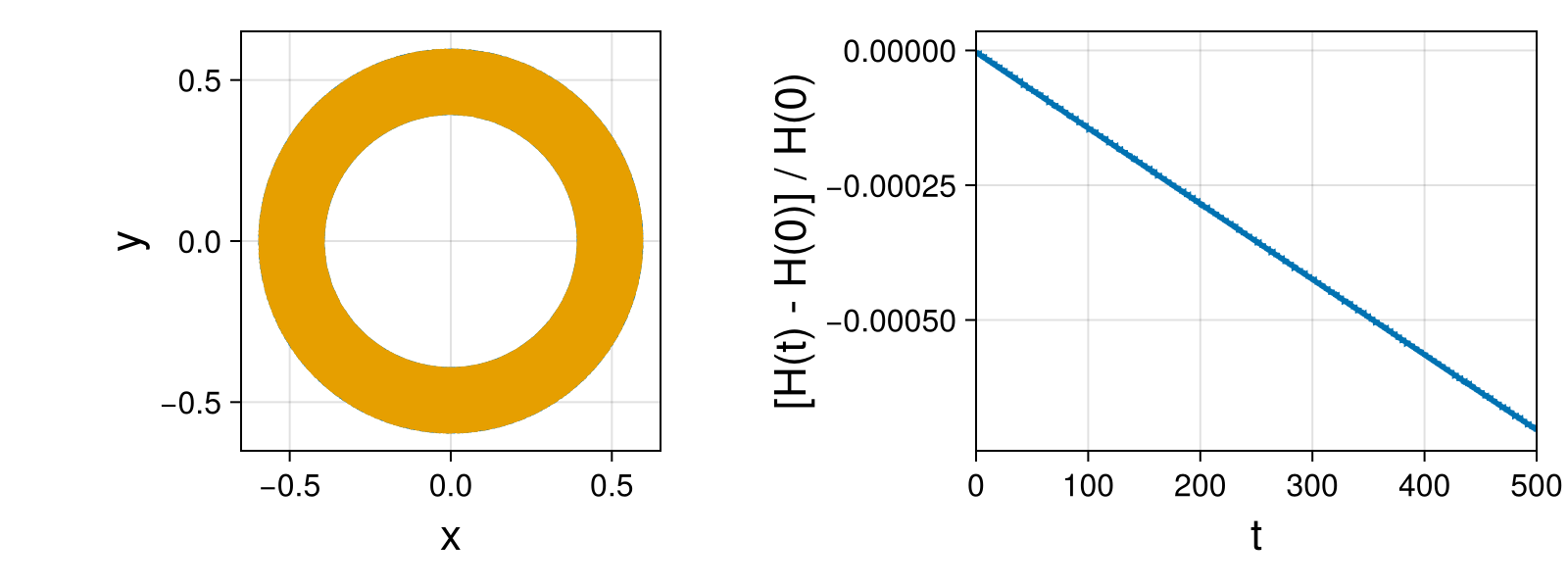

LobattoIIIG(3) with symplectic projection
LobattoIIIG(3) with midpoint projection
LobattoIIIG(3) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.

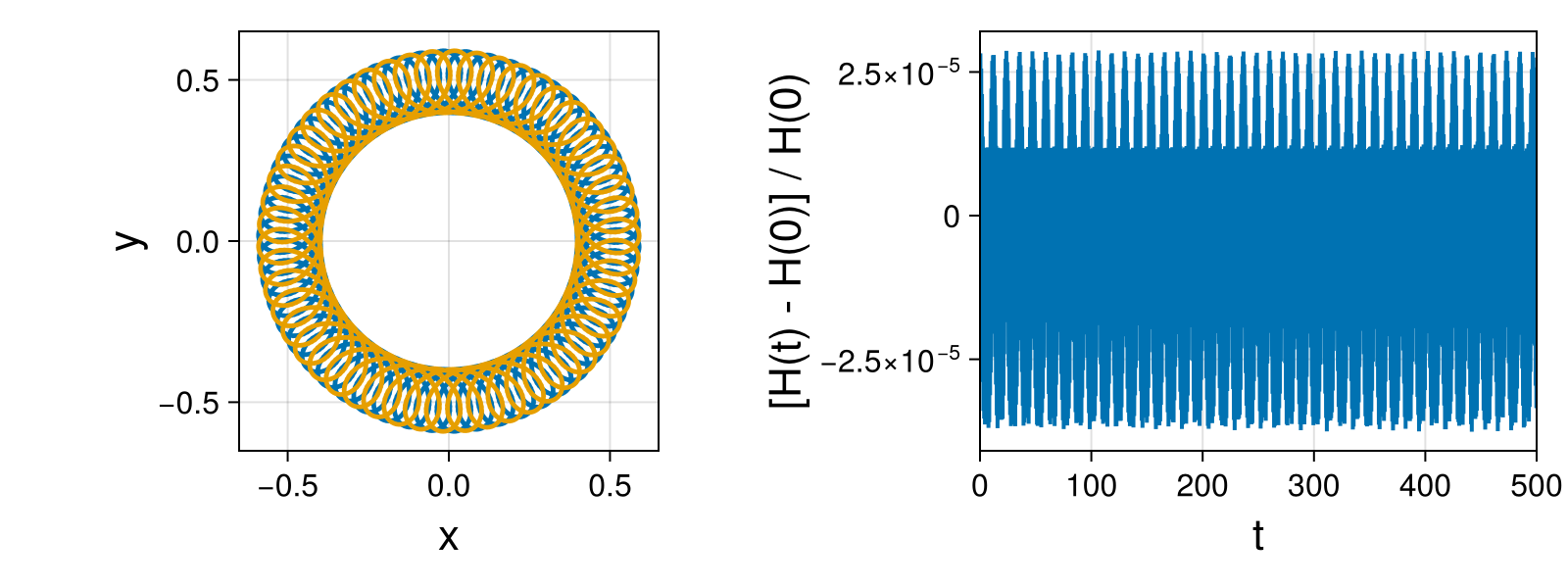

VPRKLobattoIIIG(4)
LobattoIIIG(4) with standard projection
LobattoIIIG(4) with symmetric projection

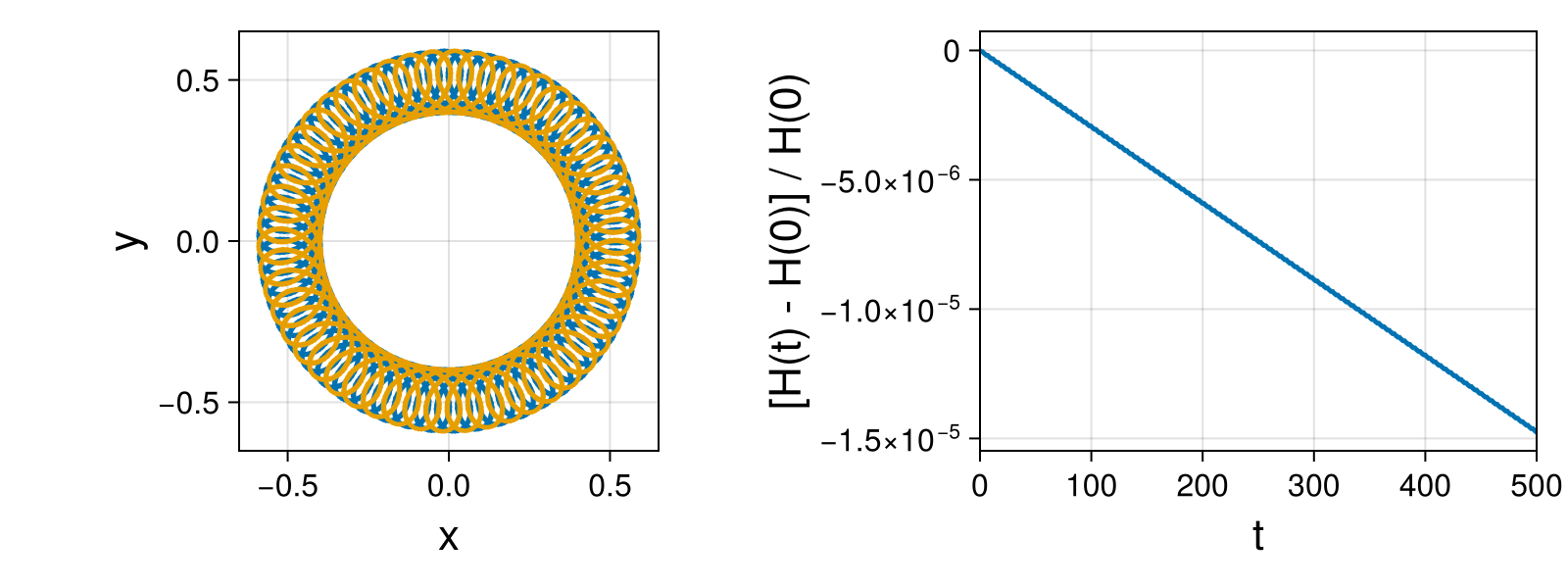

LobattoIIIG(4) with symplectic projection
LobattoIIIG(4) with midpoint projection
LobattoIIIG(4) with internal stage projection
Simulation crashed after 0 of 10000 time steps: MethodError.
