Backtracking Line Search

A backtracking line search method determines the amount to move in a given search direction by iteratively decreasing a step size $\alpha$ until an acceptable level is reached. In SimpleSolvers we use the sufficient decrease condition to quantify this acceptable level. The sufficient decrease condition is also referred to as the Armijo condition and together with the curvature condition it forms the Wolfe conditions^[1] [1].

Backtracking Line Search for a Line Search Problem

We note that the Wolfe conditions can be written very concisely by using line search problems:

\[\frac{d}{d\alpha}f^\mathrm{ls}(\alpha) = \frac{d}{d\alpha}f(\mathcal{R}_{x_k}(\alpha{}p)) = \langle d|_{\mathcal{R}_{x_k}(\alpha{}p)}f, \alpha{}p \rangle,\]

where the tangent map of a retraction is the identity at zero [7], i.e. $T_{0_x}\mathcal{R} = \mathrm{id}_{T_x\mathcal{M}}$. In the equation above $d|_{\mathcal{R}_{x_k}(\alpha{}p)}f\in{}T^*\mathcal{M}$ indicates the exterior derivative of $f$ evaluated at $\mathcal{R}_{x_k}(\alpha{}p)$ and $\langle \cdot, \cdot \rangle: T^*\mathcal{M}\times{}T\mathcal{M}\to\mathbb{R}$ is the natural pairing between tangent and cotangent space^[2] [8].

We again look at the example introduced when talking about the sufficient decrease condition and cast it in the form of a line search problem:

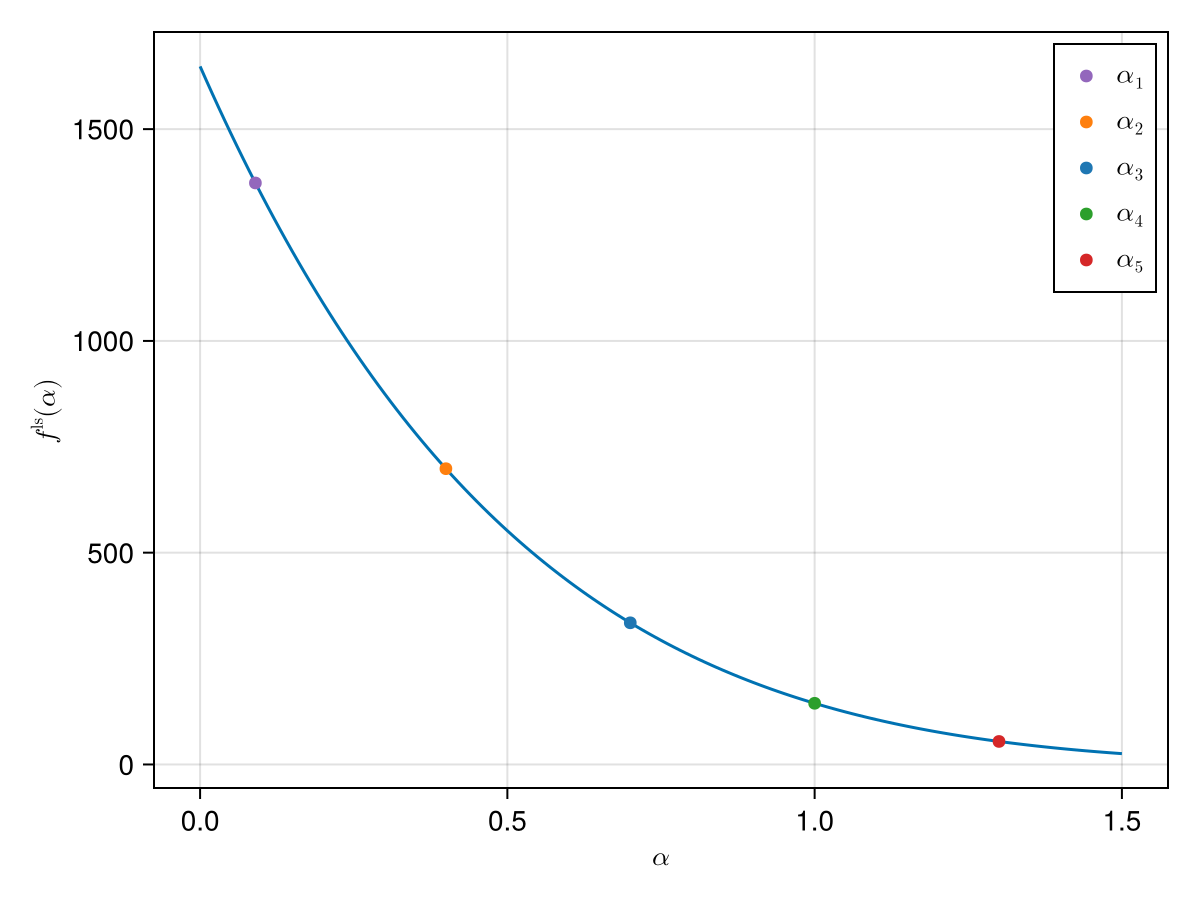

This linesearch problem only depends on the parameter $\alpha$. We plot it:

Example

We show how to use line searches in SimpleSolvers to solve a simple toy problem^[3]:

ls_method = Backtracking()

SimpleSolvers contains a function SimpleSolvers.linesearch_problem that allocates a LinesearchProblem that only depends on $\alpha$:

We now use this to compute a backtracking line search:

ls = Linesearch(problem, ls_method)
α = 50.
αₜ = solve(ls, α, params)

5.0

And we check whether the SufficientDecreaseCondition is satisfied:

sdc = SufficientDecreaseCondition(c₁, problem.F(0., params), problem.D(0., params), alpha -> problem.F(alpha, params))
sdc(αₜ)

true

Similarly for the CurvatureCondition:

c₂ = .9
cc = CurvatureCondition(c₂, problem.D(0., params), alpha -> problem.D(alpha, params))
cc(αₜ)

true

Stagnation at the round-off floor

The sufficient decrease condition demands a decrease proportional to $\alpha$:

\[\varphi(\alpha) \leq \varphi(0) + c_1\alpha\varphi'(0),\]

so once $c_1\alpha|\varphi'(0)|$ drops below one unit in the last place of $\varphi(0)$, the right-hand side rounds back up to $\varphi(0)$ exactly and the test degenerates to $\varphi(\alpha) \leq \varphi(0)$. A merit that has reached its own round-off floor — think of $\|F\|^2$ for a residual that is already pure rounding noise, which is the normal state of affairs at the end of a converged solve — then passes or fails that test essentially at random. Shrinking $\alpha$ cannot recover from this: below the round-off scale of $x$ the trial point stops differing from the base point altogether, and $\varphi(\alpha)$ is bit-identical to $\varphi(0)$.

Backtracking therefore takes the round-off resolution of the merit, $\tau =$ τ_ulps $\cdot\,\mathrm{ulp}(\varphi(0))$ (see SimpleSolvers.armijo_tolerance), slackens the condition to

\[\varphi(\alpha) \leq \min\{\varphi(0),\ \varphi(0) + c_1\alpha\varphi'(0) + \tau\},\]

and stops at the smallest step that $\tau$ can still resolve, $\alpha_\mathrm{min} = \tau/(c_1|\varphi'(0)|)$ (see SimpleSolvers.backtracking_αmin). Because $\alpha_\mathrm{min}$ is a factor $2\cdot$ τ_ulps above the step at which the rounding degeneracy sets in, the search stays clear of that region — unless $\alpha_\mathrm{min}$'s upper clamp at $\sqrt{\mathrm{eps}(T)}$ binds, which it does for a very flat merit in double precision and for essentially any merit in Float16 (the clamp is there so that a nearly flat but genuine merit is still searched at all).

The $\min$ against $\varphi(0)$ is what makes those trial steps harmless. Where the right-hand side has degenerated, the condition reduces to plain monotonicity $\varphi(\alpha) \leq \varphi(0)$: it can accept a non-increase but never an increase, and such an accept is classified LINESEARCH_FLOOR rather than reported as a decrease.

τ_ulps itself is precision-aware, because $\tau$ has to be at least an ulp or so of $\varphi(0)$ to recognise the floor and far below the $2c_1\varphi(0)$ the condition demands at $\alpha = 1$ to leave that condition meaningful. Those are compatible only while $\mathrm{eps}(T) \ll 2c_1$, which is true by ten orders of magnitude in double precision and false in Float16; SimpleSolvers.armijo_ulps caps the nominal 4 ulps accordingly, a no-op in Float64 and Float32. Without the cap a Float16 merit that genuinely decreased by two ulps — the smallest that precision can express — was reported as LINESEARCH_FLOOR, which a NonlinearSolver counts towards max_stalls, so a converging solve could be reported as stagnated.

The situation is reported rather than hidden. solve_with_status returns a LinesearchStatus whose LinesearchOutcome distinguishes a step that genuinely decreased the merit (LINESEARCH_DECREASED) from one accepted only because nothing can decrease it (LINESEARCH_FLOOR):

using SimpleSolvers
using SimpleSolvers: outcome, trials, steplength, issufficient, isfloor

# a merit that is pure round-off noise: every α > 0 lands one ulp above φ(0)
noise = LinesearchProblem{Float64}((α, _) -> α > 0 ? nextfloat(1.0) : 1.0, (α, _) -> -2.0)
ls = Linesearch(noise, Backtracking(); verbosity = 0)
st = solve_with_status(ls, 1.0)
(outcome(st), trials(st), steplength(st), st.αmin)

(LINESEARCH_FLOOR, 33, 4.440892098500626e-12, 4.440892098500626e-12)

isfloor(st), issufficient(st)

(true, false)

A LINESEARCH_FLOOR outcome is not an error: it says that no line search can make progress at this point, which is normally a statement about the problem rather than about the search. A NonlinearSolver treats it as a stalled step (see SimpleSolvers.stalled_step) and stops after max_stalls of them, reporting the residual it did achieve against the tolerance that was requested — the usual cause being an f_abstol below the residual's own round-off floor. See Options.
