Symbolic Neural Networks
When using a symbolic neural network we can use architectures from GeometricMachineLearning or more simple building blocks.
We first call the symbolic neural network that only consists of one layer:
using SymbolicNeuralNetworks
using AbstractNeuralNetworks: Chain, Dense, params, FeedForwardLoss
input_dim = 2
output_dim = 1
hidden_dim = 3
c = Chain(Dense(input_dim, hidden_dim), Dense(hidden_dim, hidden_dim), Dense(hidden_dim, output_dim))
nn = SymbolicNeuralNetwork(c)We can now build symbolic expressions based on this neural network. Here we do so by calling evaluate_equations:
using Symbolics
using Latexify: latexify
@variables sinput[1:input_dim]
soutput = nn.model(sinput, params(nn))
soutput\[ \begin{equation} \mathrm{broadcast}\left( \tanh, \mathrm{broadcast}\left( +, \mathtt{W_{5}} \mathrm{broadcast}\left( \tanh, \mathrm{broadcast}\left( +, \mathtt{W_{3}} \mathrm{broadcast}\left( \tanh, \mathrm{broadcast}\left( +, \mathtt{W_{1}} \mathtt{sinput}, \mathtt{W_{2}} \right) \right), \mathtt{W_{4}} \right) \right), \mathtt{W_{6}} \right) \right) \end{equation} \]
or use Symbolics.scalarize to get a more readable version of the equation:
soutput |> Symbolics.scalarize\[ \begin{equation} \left[ \begin{array}{c} \tanh\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \\ \end{array} \right] \end{equation} \]
We can compute the symbolic gradient with SymbolicNeuralNetworks.Gradient:
using SymbolicNeuralNetworks: derivative
derivative(SymbolicNeuralNetworks.Gradient(soutput, nn))[1].L1.b\[ \begin{equation} \left[ \begin{array}{c} \left( \mathtt{W\_3}_{1,1} \mathtt{W\_5}_{1,1} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{2,1} \mathtt{W\_5}_{1,2} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{3,1} \mathtt{W\_5}_{1,3} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \\ \left( \mathtt{W\_3}_{1,2} \mathtt{W\_5}_{1,1} \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) + \mathtt{W\_3}_{2,2} \mathtt{W\_5}_{1,2} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{3,2} \mathtt{W\_5}_{1,3} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \\ \left( \mathtt{W\_3}_{1,3} \mathtt{W\_5}_{1,1} \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) + \mathtt{W\_3}_{2,3} \mathtt{W\_5}_{1,2} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{3,3} \mathtt{W\_5}_{1,3} \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \\ \end{array} \right] \end{equation} \]
SymbolicNeuralNetworks.Gradient can also be called as SymbolicNeuralNetworks.Gradient(snn), so without providing a specific output. In this case soutput is taken to be the symbolic output of the network (i.e. is equivalent to the construction presented here). Also note that we further called SymbolicNeuralNetworks.derivative here in order to get the symbolic gradient (as opposed to the symbolic output of the neural network).
In order to train a SymbolicNeuralNetwork we can use:
pb = SymbolicPullback(nn)SymbolicNeuralNetworks.Gradient and SymbolicPullback both use the function SymbolicNeuralNetworks.symbolic_pullback internally, so are computationally equivalent. SymbolicPullback should however be used in connection to a NetworkLoss and SymbolicNeuralNetworks.Gradient can be used more generally to compute the derivative of array-valued expressions.
We want to use our one-layer neural network to approximate a Gaussian on the interval $[-1, 1]\times[-1, 1]$. We fist generate the data for this task:
using GeometricMachineLearning
x_vec = -1.:.1:1.
y_vec = -1.:.1:1.
xy_data = hcat([[x, y] for x in x_vec, y in y_vec]...)
f(x::Vector) = exp.(-sum(x.^2))
z_data = mapreduce(i -> f(xy_data[:, i]), hcat, axes(xy_data, 2))

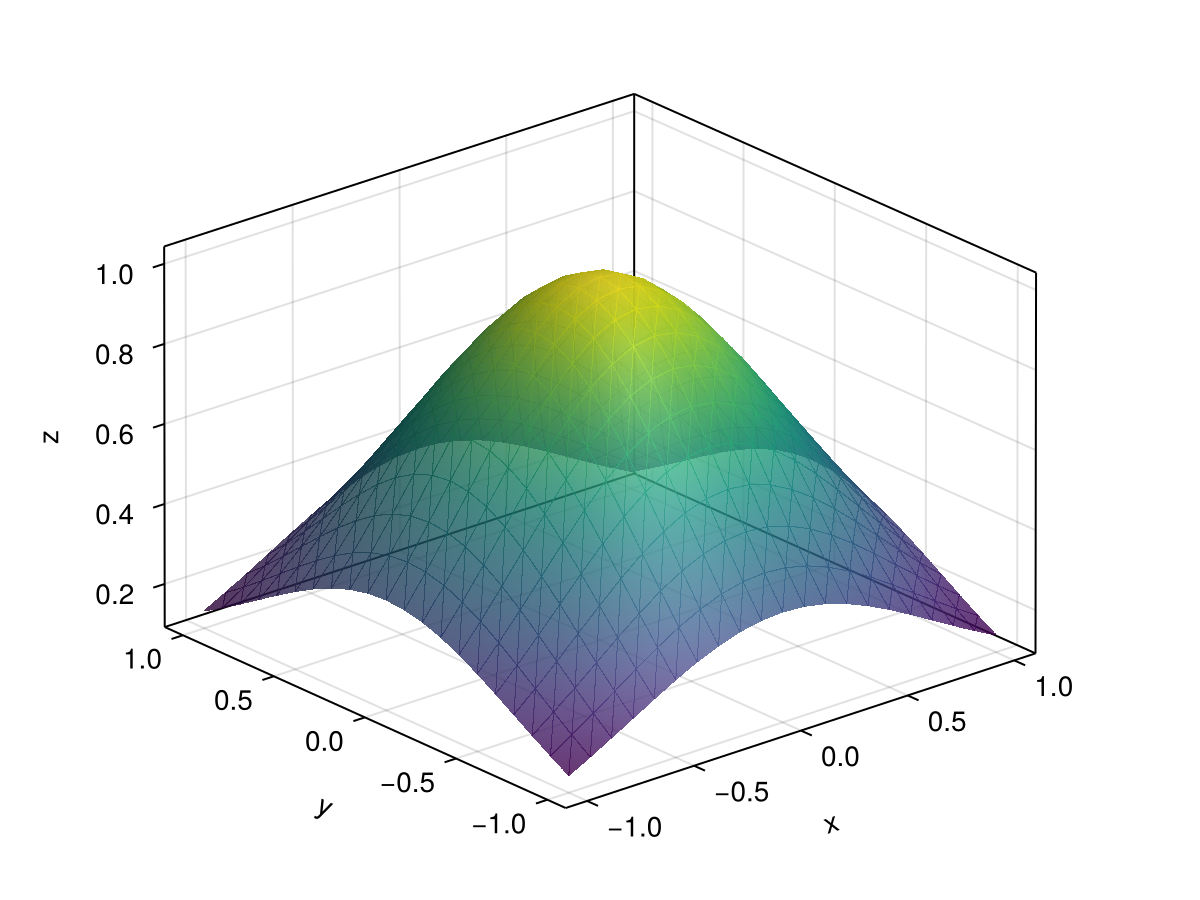

dl = DataLoader(xy_data, z_data)[ Info: You have provided an input and an output.Note that we use GeometricMachineLearning.DataLoader to process the data. We further also visualize them:
using CairoMakie
fig = Figure()
ax = Axis3(fig[1, 1])
surface!(x_vec, y_vec, [f([x, y]) for x in x_vec, y in y_vec]; alpha = .8, transparency = true)
fig
We now train the network:
nn_cpu = NeuralNetwork(c, CPU())
o = Optimizer(AdamOptimizer(), nn_cpu)
n_epochs = 1000
batch = Batch(10)

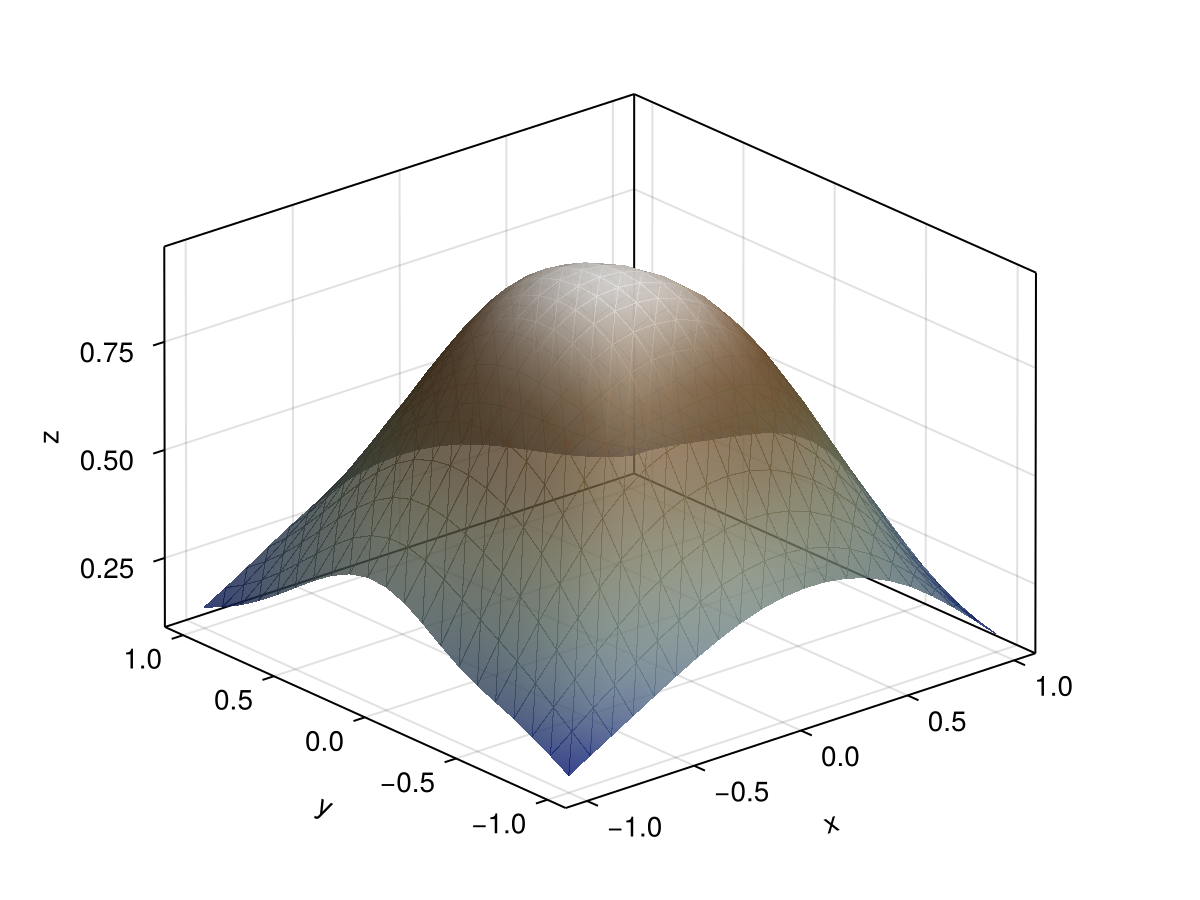

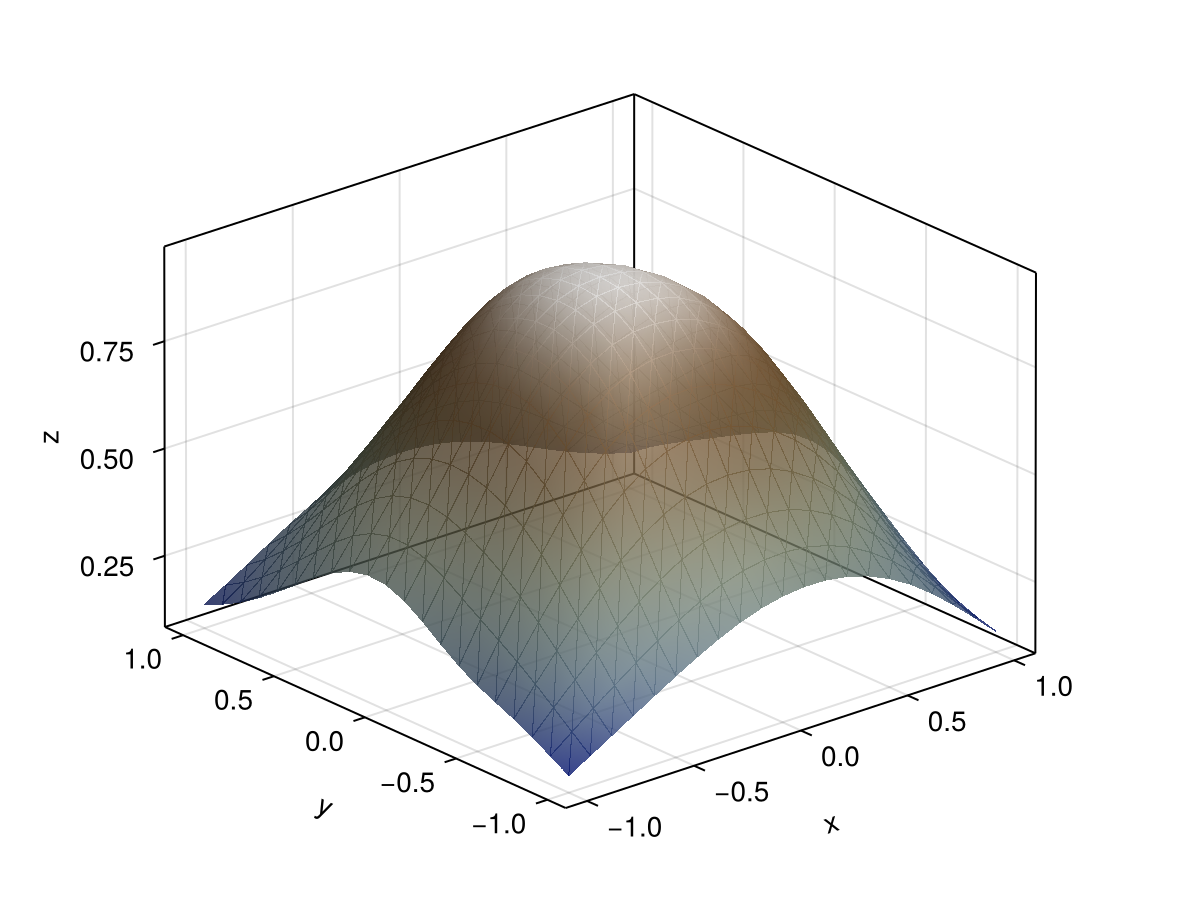

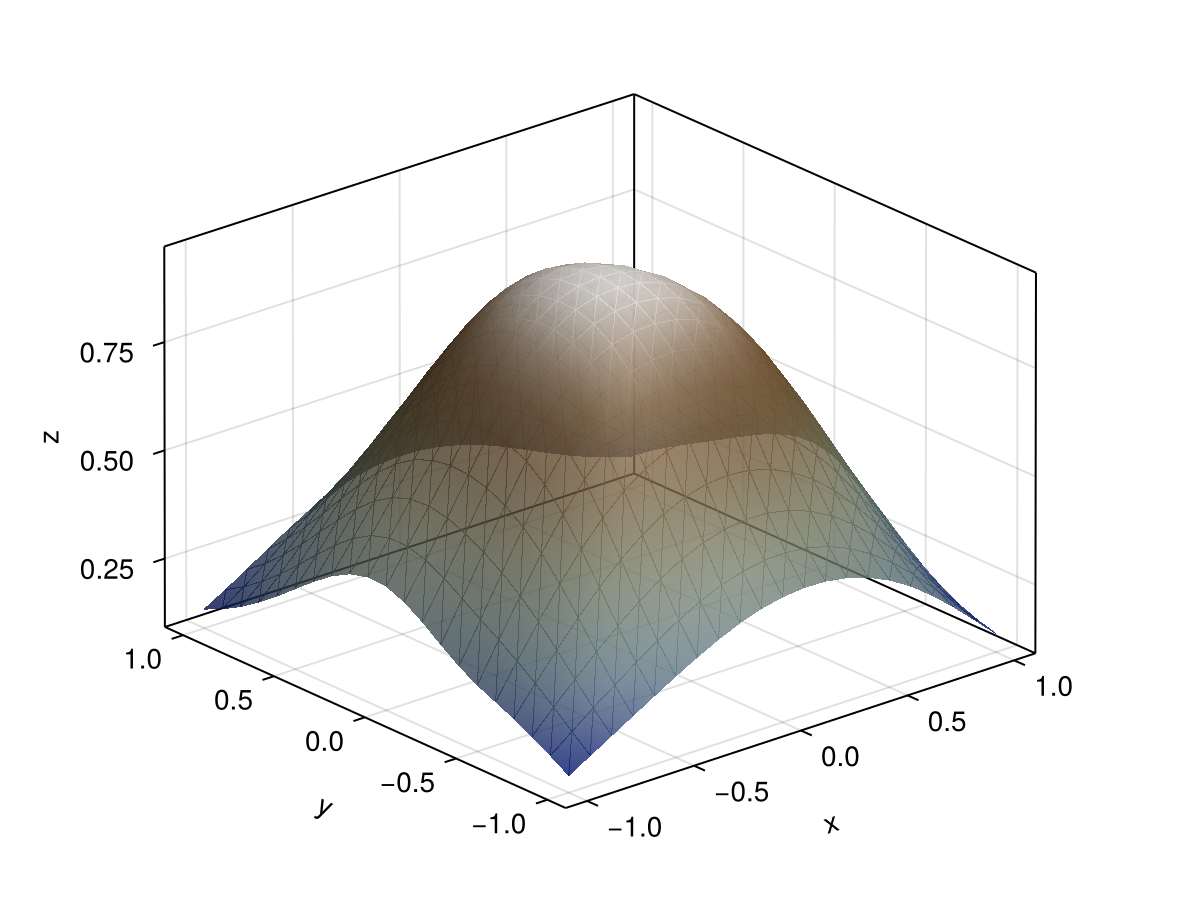

@time o(nn_cpu, dl, batch, n_epochs, pb.loss, pb; show_progress = false); 8.758418 seconds (36.09 M allocations: 1.389 GiB, 1.69% gc time)We now compare the neural network-approximated curve to the original one:

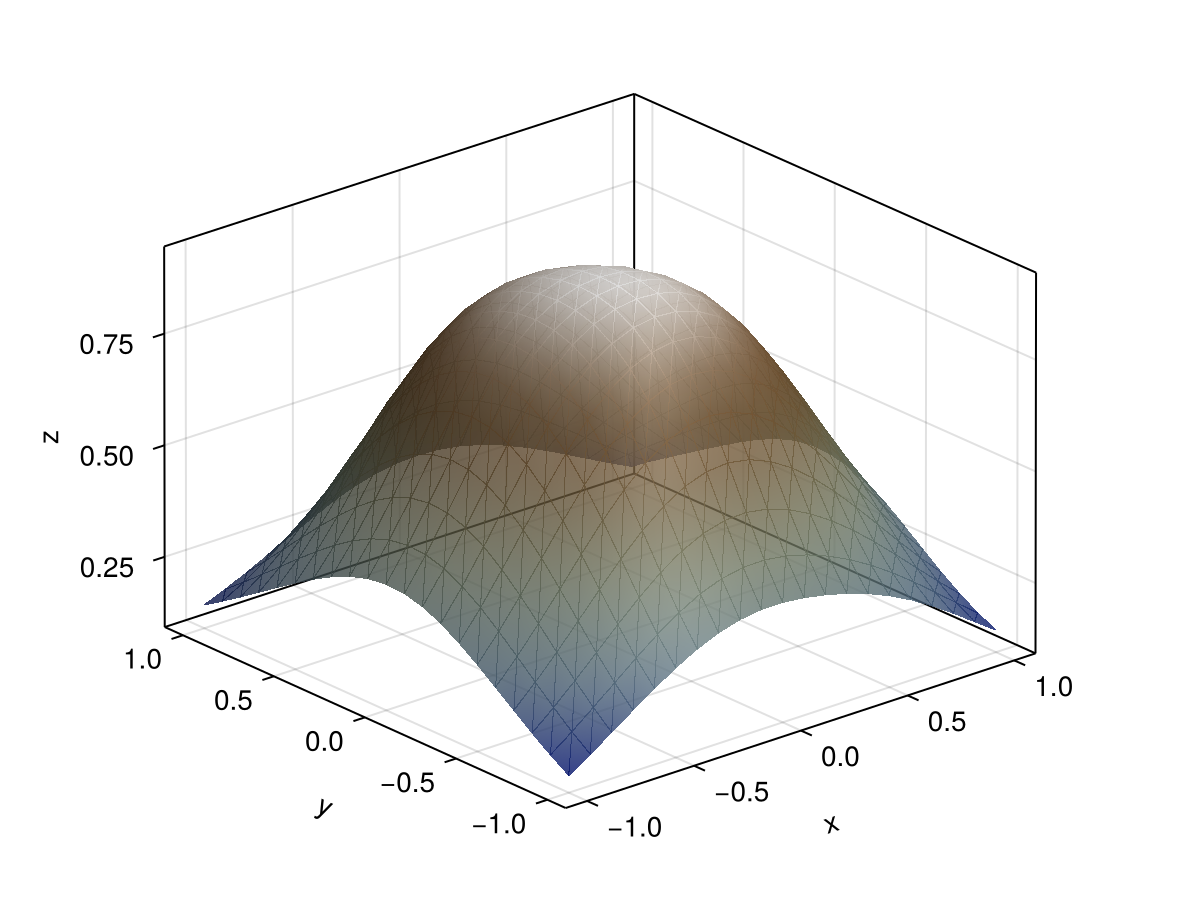

fig = Figure()
ax = Axis3(fig[1, 1])
surface!(x_vec, y_vec, [c([x, y], params(nn_cpu))[1] for x in x_vec, y in y_vec]; alpha = .8, colormap = :darkterrain, transparency = true)
fig
We can also compare the time it takes to train the SymbolicNeuralNetwork to the time it takes to train a standard neural network:
loss = FeedForwardLoss()
pb2 = GeometricMachineLearning.ZygotePullback(loss)
@time o(nn_cpu, dl, batch, n_epochs, pb2.loss, pb2; show_progress = false); 1.546070 seconds (25.01 M allocations: 1.213 GiB, 7.21% gc time)
