Symbolic Neural Networks

When using a symbolic neural network we can use architectures from GeometricMachineLearning or more simple building blocks.

We first call the symbolic neural network that only consists of one layer:

using SymbolicNeuralNetworks
using AbstractNeuralNetworks: Chain, Dense, params

input_dim = 2
output_dim = 1
hidden_dim = 3
c = Chain(Dense(input_dim, hidden_dim), Dense(hidden_dim, hidden_dim), Dense(hidden_dim, output_dim))
nn = SymbolicNeuralNetwork(c)

We can now build symbolic expressions based on this neural network. Here we do so by calling evaluate_equations:

using Symbolics
using Latexify: latexify

@variables sinput[1:input_dim]
soutput = nn.model(sinput, params(nn))

soutput

\[ \begin{equation} \mathrm{broadcast}\left( \tanh, \mathrm{broadcast}\left( +, \mathtt{W_{5}} \mathrm{broadcast}\left( \tanh, \mathrm{broadcast}\left( +, \mathtt{W_{3}} \mathrm{broadcast}\left( \tanh, \mathrm{broadcast}\left( +, \mathtt{W_{1}} \mathtt{sinput}, \mathtt{W_{2}} \right) \right), \mathtt{W_{4}} \right) \right), \mathtt{W_{6}} \right) \right) \end{equation} \]

or use Symbolics.scalarize to get a more readable version of the equation:

soutput |> Symbolics.scalarize

\[ \begin{equation} \left[ \begin{array}{c} \tanh\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \\ \end{array} \right] \end{equation} \]

We can compute the symbolic gradient with SymbolicNeuralNetworks.Gradient:

using SymbolicNeuralNetworks: derivative
derivative(SymbolicNeuralNetworks.Gradient(soutput, nn))[1].L1.b

\[ \begin{equation} \left[ \begin{array}{c} \left( \mathtt{W\_3}_{1,1} \mathtt{W\_5}_{1,1} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{2,1} \mathtt{W\_5}_{1,2} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{3,1} \mathtt{W\_5}_{1,3} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \\ \left( \mathtt{W\_3}_{1,2} \mathtt{W\_5}_{1,1} \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) + \mathtt{W\_3}_{2,2} \mathtt{W\_5}_{1,2} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{3,2} \mathtt{W\_5}_{1,3} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \\ \left( \mathtt{W\_3}_{1,3} \mathtt{W\_5}_{1,1} \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) + \mathtt{W\_3}_{2,3} \mathtt{W\_5}_{1,2} \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_3}_{3,3} \mathtt{W\_5}_{1,3} \left( 1 - \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \left( 1 - \tanh^{2}\left( \mathtt{W\_6}_{1} + \mathtt{W\_5}_{1,1} \tanh^{2}\left( \mathtt{W\_4}_{1} + \mathtt{W\_3}_{1,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{1,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,2} \tanh^{2}\left( \mathtt{W\_4}_{2} + \mathtt{W\_3}_{2,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{2,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) + \mathtt{W\_5}_{1,3} \tanh^{2}\left( \mathtt{W\_4}_{3} + \mathtt{W\_3}_{3,1} \tanh^{2}\left( \mathtt{W\_2}_{1} + \mathtt{W\_1}_{1,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{1,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,2} \tanh^{2}\left( \mathtt{W\_2}_{2} + \mathtt{W\_1}_{2,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{2,2} \mathtt{sinput}_{2} \right) + \mathtt{W\_3}_{3,3} \tanh^{2}\left( \mathtt{W\_2}_{3} + \mathtt{W\_1}_{3,1} \mathtt{sinput}_{1} + \mathtt{W\_1}_{3,2} \mathtt{sinput}_{2} \right) \right) \right) \right) \\ \end{array} \right] \end{equation} \]

In order to train a SymbolicNeuralNetwork we can use:

pb = SymbolicPullback(nn)

We want to use our one-layer neural network to approximate a Gaussian on the interval $[-1, 1]\times[-1, 1]$. We fist generate the data for this task:

using GeometricMachineLearning

x_vec = -1.:.1:1.
y_vec = -1.:.1:1.
xy_data = hcat([[x, y] for x in x_vec, y in y_vec]...)
f(x::Vector) = exp.(-sum(x.^2))
z_data = mapreduce(i -> f(xy_data[:, i]), hcat, axes(xy_data, 2))

dl = DataLoader(xy_data, z_data)

[ Info: You have provided an input and an output.

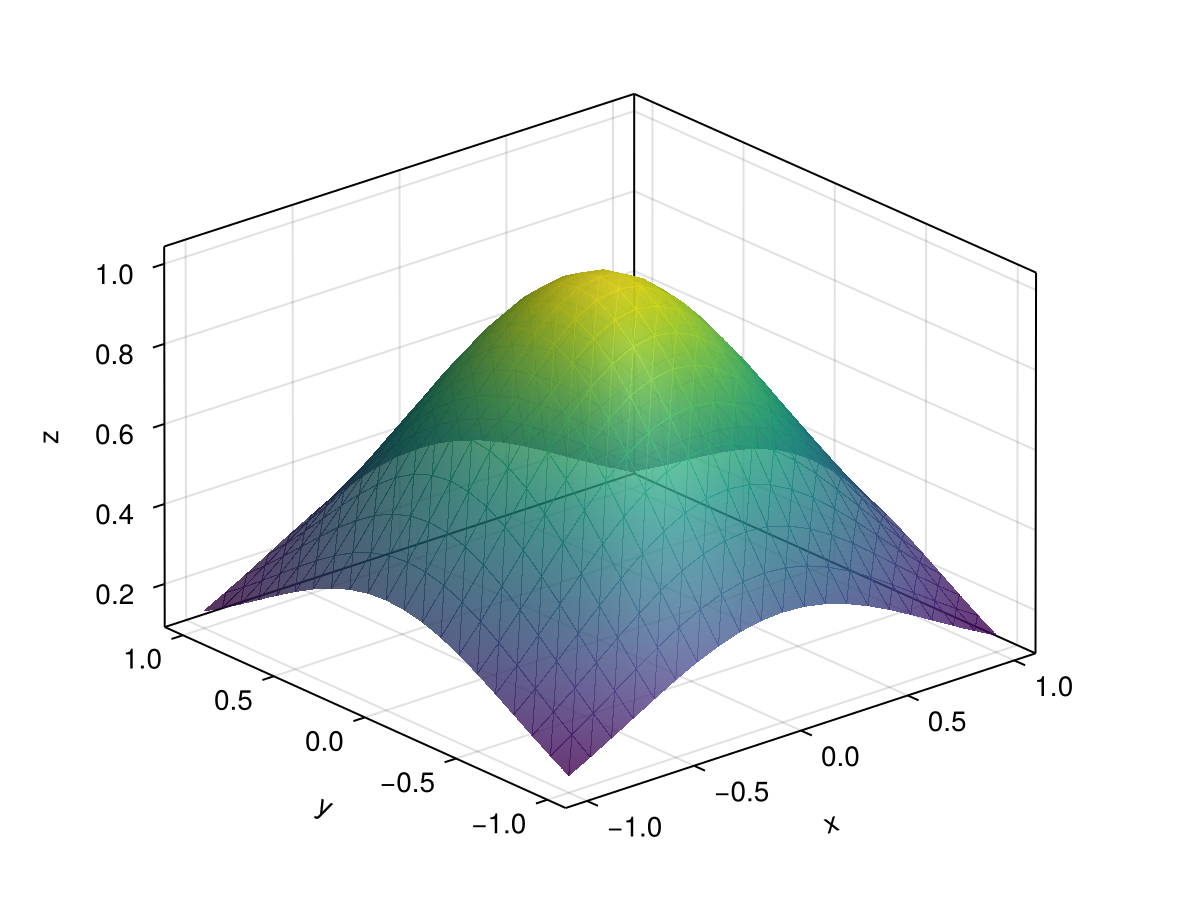

Note that we use GeometricMachineLearning.DataLoader to process the data. We further also visualize them:

using CairoMakie

fig = Figure()
ax = Axis3(fig[1, 1])
surface!(x_vec, y_vec, [f([x, y]) for x in x_vec, y in y_vec]; alpha = .8, transparency = true)
fig

We now train the network:

nn_cpu = NeuralNetwork(c, CPU())
o = Optimizer(AdamOptimizer(), nn_cpu)
n_epochs = 1000
batch = Batch(10)
@time o(nn_cpu, dl, batch, n_epochs, pb.loss, pb; show_progress = false);

  8.794173 seconds (36.09 M allocations: 1.389 GiB, 1.97% gc time)

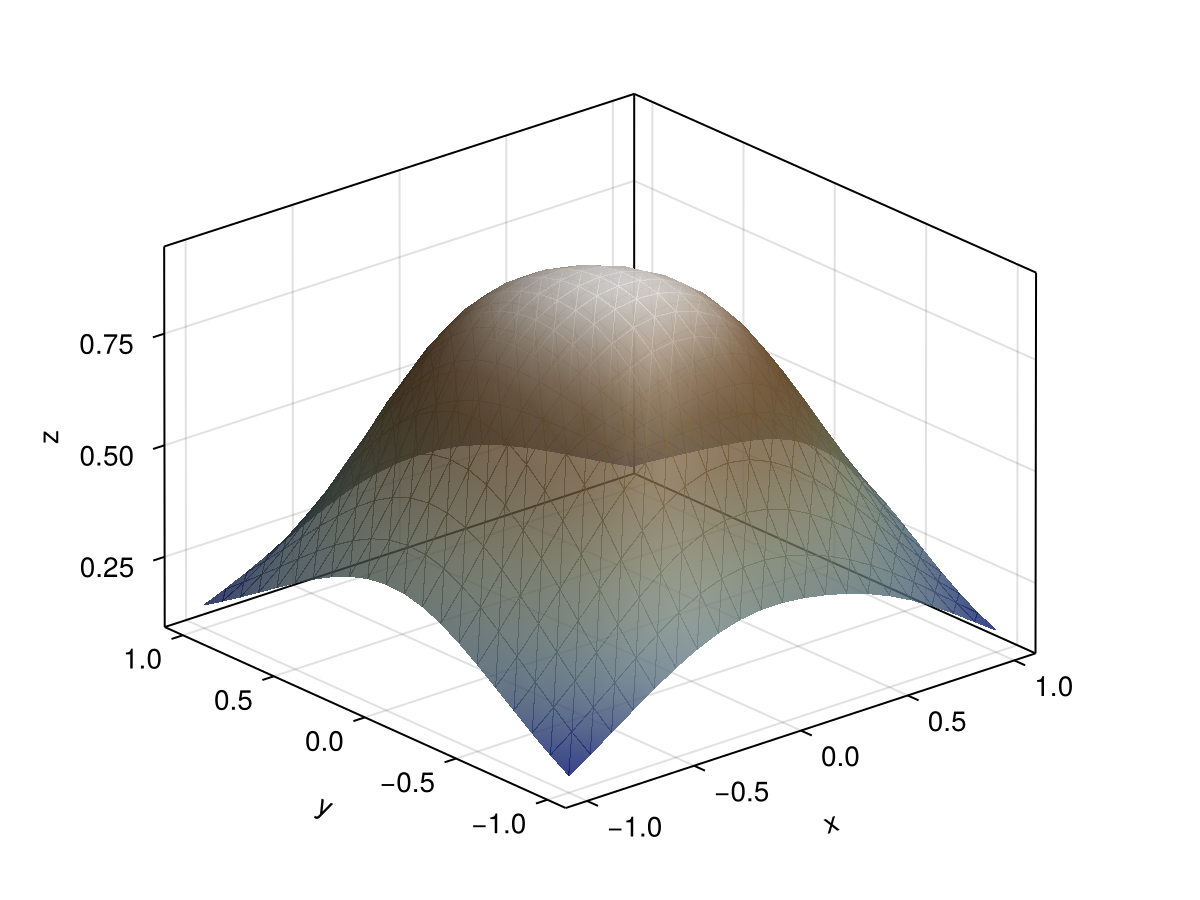

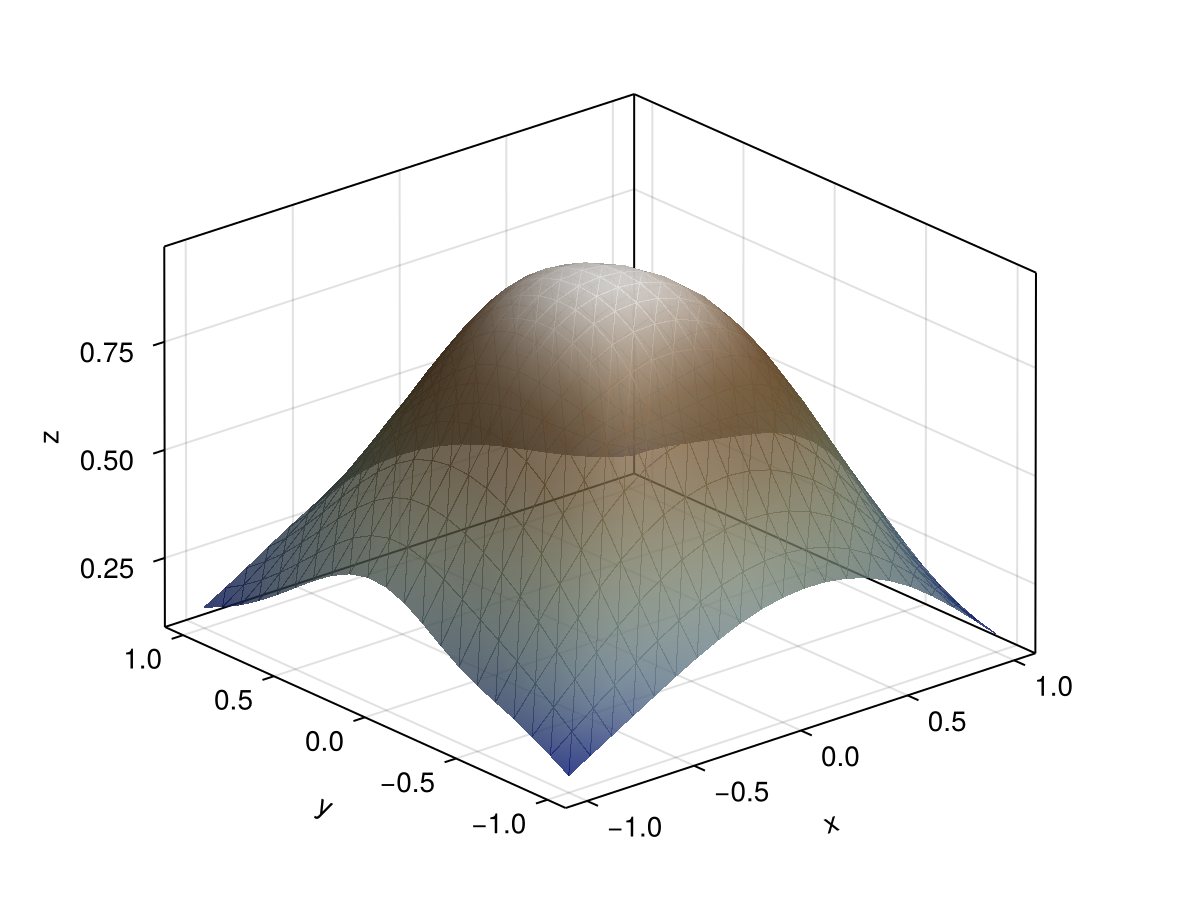

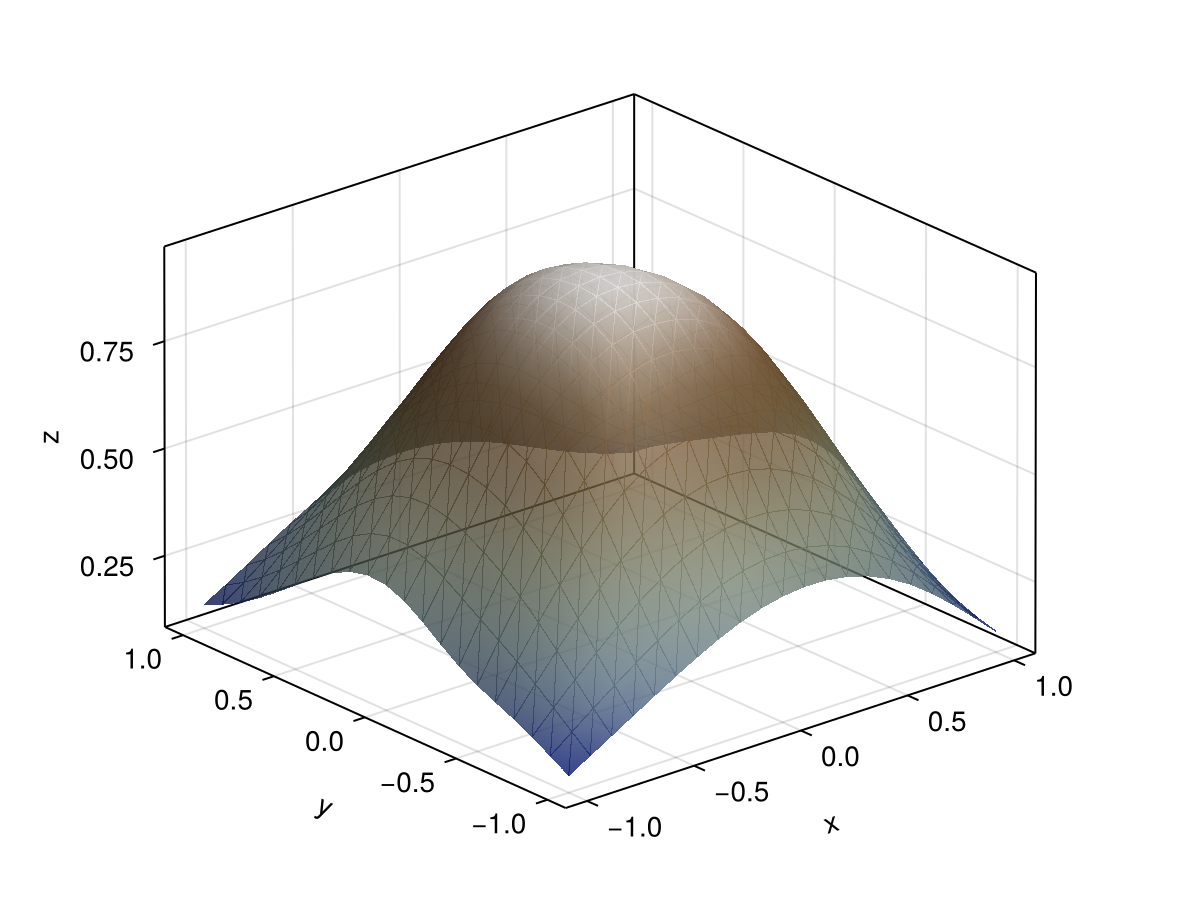

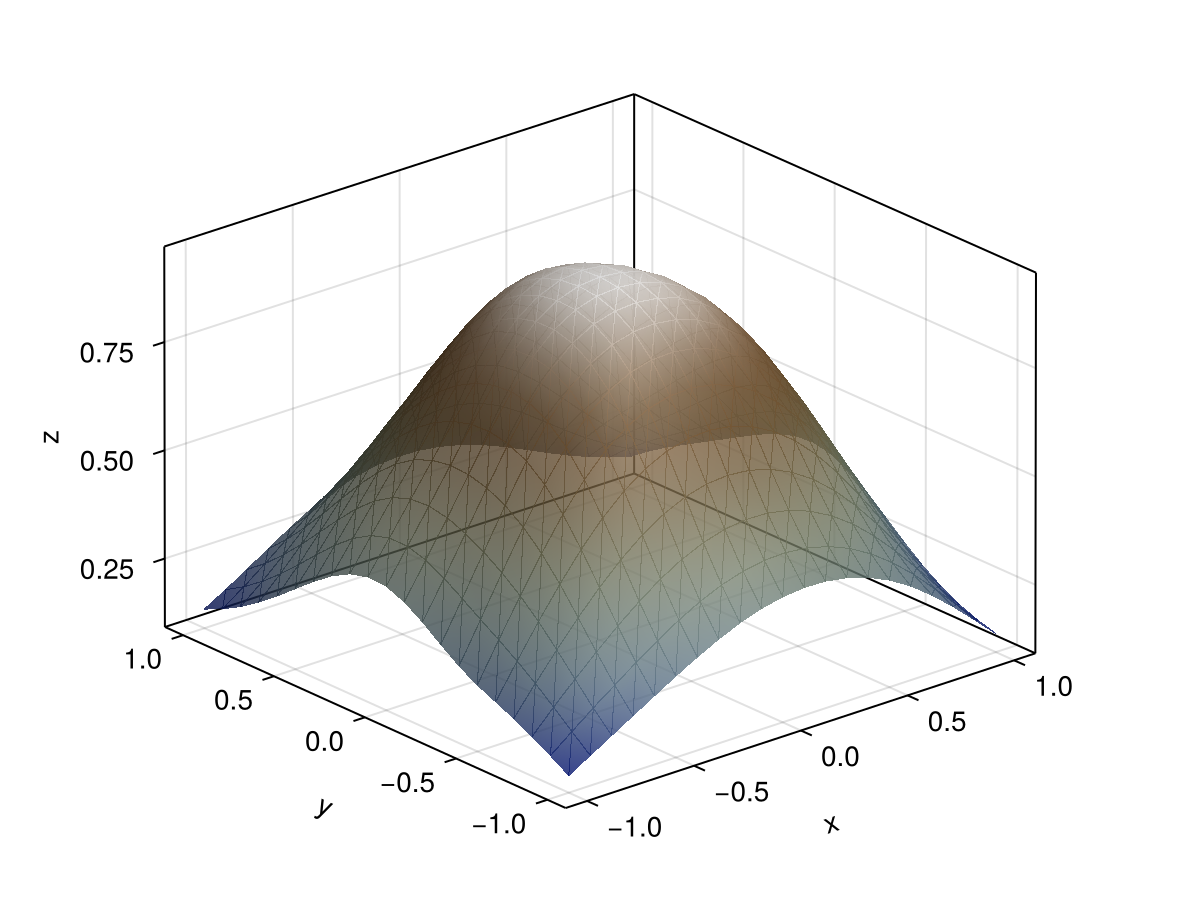

We now compare the neural network-approximated curve to the original one:

fig = Figure()
ax = Axis3(fig[1, 1])

surface!(x_vec, y_vec, [c([x, y], params(nn_cpu))[1] for x in x_vec, y in y_vec]; alpha = .8, colormap = :darkterrain, transparency = true)
fig

We can also compare the time it takes to train the SymbolicNeuralNetwork to the time it takes to train a standard neural network:

loss = FeedForwardLoss()
pb2 = GeometricMachineLearning.ZygotePullback(loss)
@time o(nn_cpu, dl, batch, n_epochs, pb2.loss, pb2; show_progress = false);

  1.564433 seconds (25.01 M allocations: 1.213 GiB, 7.00% gc time)
