Training a Symbolic Neural Network

SymbolicPullback is a drop-in replacement for a Zygote-based pullback, so a SymbolicNeuralNetwork can be trained with the optimizers of GeometricMachineLearning without any further ceremony. This guide trains one with a plain gradient-descent loop instead, so that its code needs no training package.

We approximate a Gaussian on $[-1, 1]\times[-1, 1]$ with a small feed-forward network.

using SymbolicNeuralNetworks
using AbstractNeuralNetworks: Chain, Dense, params, FeedForwardLoss

c = Chain(Dense(2, 3, tanh), Dense(3, 3, tanh), Dense(3, 1, tanh))
snn = SymbolicNeuralNetwork(c)
pb = SymbolicPullback(snn)

SymbolicPullback(snn) uses a FeedForwardLoss; pass a NetworkLoss as the second argument for anything else.

How the pullback is built

The gradient a SymbolicPullback evaluates is fixed; how it is constructed is not, and the difference decides which networks it can be built for at all.

The direct route is to write down one symbolic expression for the loss of the whole network and differentiate it once per scalar parameter. Both halves of that grow badly. A Chain's forward pass is inlined layer into layer, so layer $k$'s expression contains layer $k-1$'s once per element it reads and the loss expression is $O(\mathrm{width}^\mathrm{depth})$ before anything is differentiated; differentiating it then walks the whole of it once per parameter. Four layers of width 16 — 626 parameters — reach a gradient expression of 2·10⁸ nodes, and the build never finishes.

Common subexpression elimination does not help with this. It runs at code generation, on an expression that has already been built and traversed; see Building Functions.

The way out is to stop inlining the composition. Each layer gets fresh symbolic variables for its own input, so the expressions built for it refer to that layer and to nothing upstream of it, and the composition happens when the pullback is evaluated — where it costs a function call per layer. Per layer this differentiates the scalar

\[s_k = \lambda_k \cdot f_k(x_{k-1}; \theta_k)\]

twice, in which $\lambda_k$ stands for the sensitivity of the loss to that layer's output: $\partial{}s_k/\partial{}x_{k-1}$ is $\lambda_{k-1}$, and $\partial{}s_k/\partial\theta_k$ is $\partial{}L/\partial\theta_k$. Neither a Jacobian nor a rank-3 parameter derivative is ever materialised, and the total symbolic material becomes a sum over layers rather than a product:

Counted in expression nodes by scripts/codegen_comparison.jl, which also times both constructions.

This is what SymbolicPullback does by default. The layerwise keyword overrides the choice:

SymbolicPullback(snn, loss; layerwise = true)    # demand it, error if it does not apply
SymbolicPullback(snn, loss; layerwise = false)   # one expression for the whole network

:auto, the default, composes layer by layer for every model that decomposes into more than one layer — see composes_layerwise for the measured crossover and why the default does not try to reproduce it exactly.

Layers

What sits between two layers is a seam: fresh symbolic variables standing for the layer's input, rather than the expression of everything upstream of it. By default that is one plain vector — the layer's state — because that is what a Dense maps to a Dense.

A layer may carry more than the state. GeometricMachineLearning's SymplecticEuler threads the parameters of the system through the chain alongside it, so it takes and returns a pair. Four functions say how such a layer meets the seam, and each defaults to the plain-vector construction:

SymbolicNeuralNetworks.carried_variables(l::MyLayer) = (Symbolics.variables(:c, 1:length(l)),)
SymbolicNeuralNetworks.seam_value(::MyLayer, sx, sc) = (sx, sc)
SymbolicNeuralNetworks.state_expressions(::MyLayer, y) =
    SymbolicNeuralNetworks.scalar_expressions(first(y))
SymbolicNeuralNetworks.seam_arguments(::MyLayer, x::Tuple) = (first(x), last(x))

A layer declares all four together or none of them. The carried data is data, never a differentiation target: $\lambda$ pairs with the state, the seed is differentiated with respect to the state and the layer's parameters, and the carried variables become extra arguments of the generated kernels. See seam_interface.

A layer that carries something and has not declared these is where the construction declines — its output has more in it than the default can take apart, or it has no method for a bare vector at all — and SymbolicPullback falls back to the monolithic path. That fallback traces the chain from a plain vector, so it differentiates the map in which every layer defaulted what it carries: for a model whose carried data matters, declaring the seam is not only faster but the only construction that is right.

Losses

The layerwise construction needs one thing the monolithic one does not: the loss as a function of the network's prediction, so that the sweep has a value of $\partial{}L/\partial\hat{y}$ to start from. AbstractNeuralNetworks has no interface for that — a NetworkLoss is applied as loss(model, ps, input, output) — so the expression is obtained by applying the loss to a PassThroughLayer, a model whose prediction is its input.

That is right for a loss which reaches its model once and compares the result to output, and wrong for one that does something else: an autoencoder loss compares the prediction to the network's input, and so reads through a pass-through model as identically zero. Returning a zero gradient quietly would be the worst thing this could do, so the guessed expression is checked against the loss itself before it is used, and the construction falls back to the monolithic one when the two disagree.

A loss can say what its expression is instead, in which case it is used as given:

SymbolicNeuralNetworks.loss_expression(::MyLoss, ŷ, y) = ...

See loss_expression.

The data

x_vec = -1.0:0.1:1.0
y_vec = -1.0:0.1:1.0
xy_data = hcat([[x, y] for x in x_vec, y in y_vec]...)
f(x::Vector) = exp.(-sum(x .^ 2))
z_data = mapreduce(i -> f(xy_data[:, i]), hcat, axes(xy_data, 2))

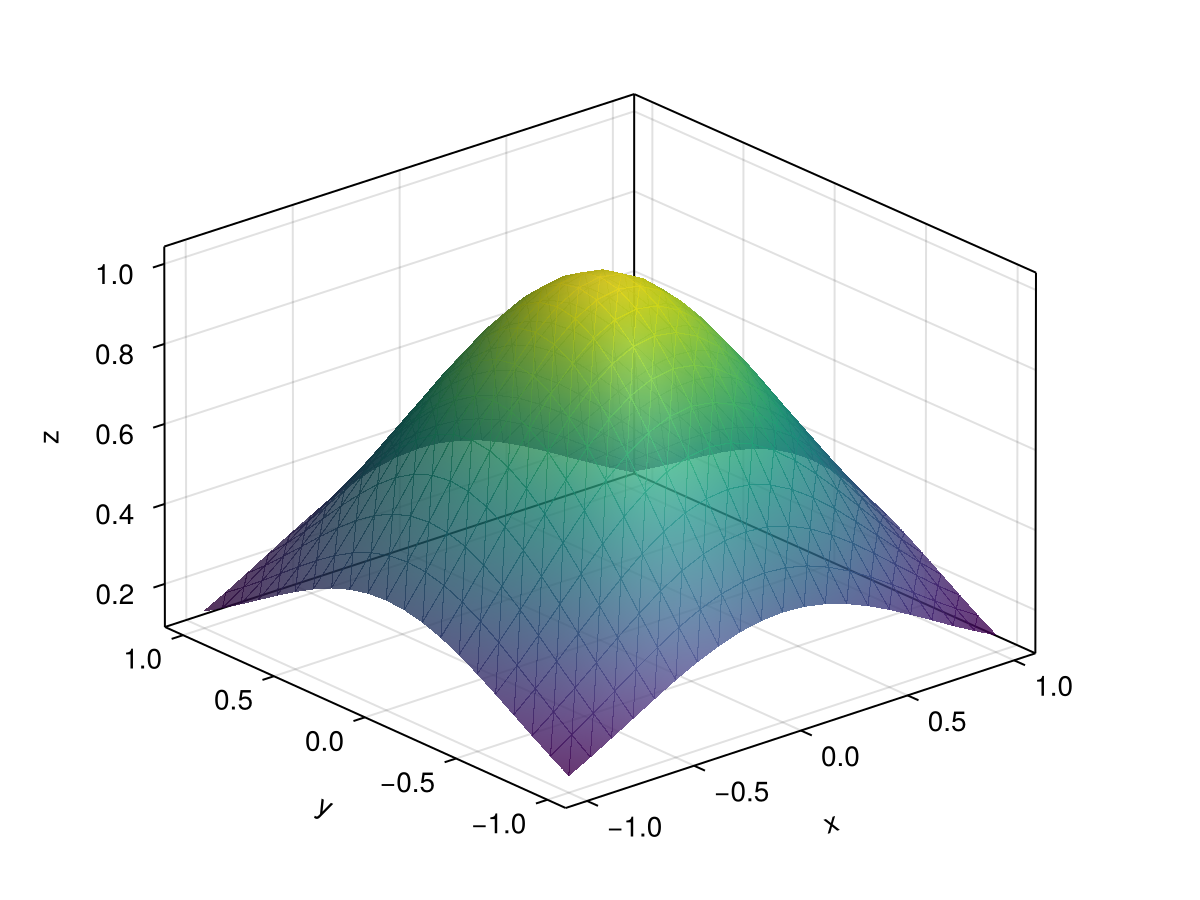

using CairoMakie

fig = Figure()
ax = Axis3(fig[1, 1])
surface!(x_vec, y_vec, [f([x, y]) for x in x_vec, y in y_vec]; alpha = .8, transparency = true)
fig

Training

Each step takes one sample, evaluates the pullback on it and moves every parameter against its gradient. The gradient is a NetworkParameters with the layout of the parameters, so the update walks the two side by side.

using AbstractNeuralNetworks: NeuralNetwork

function descend!(ps, gradient, η)
    for (layer, grad) in zip(values(ps), values(gradient)), key in keys(layer)
        layer[key] .-= η .* grad[key]
    end
end

function train!(ps, gradient, n_epochs; η = 0.003)
    for _ in 1:n_epochs, k in axes(xy_data, 2)
        descend!(ps, gradient(ps, (xy_data[:, k], z_data[:, k])), η)
    end
    ps
end

symbolic_gradient(ps, input_output) = pb(ps, c, input_output)[2](1)

ps₀ = params(NeuralNetwork(c))
n_epochs = 200
ps = deepcopy(ps₀)
@time train!(ps, symbolic_gradient, n_epochs)

  0.420775 seconds (11.47 M allocations: 520.832 MiB, 21.88% gc time)

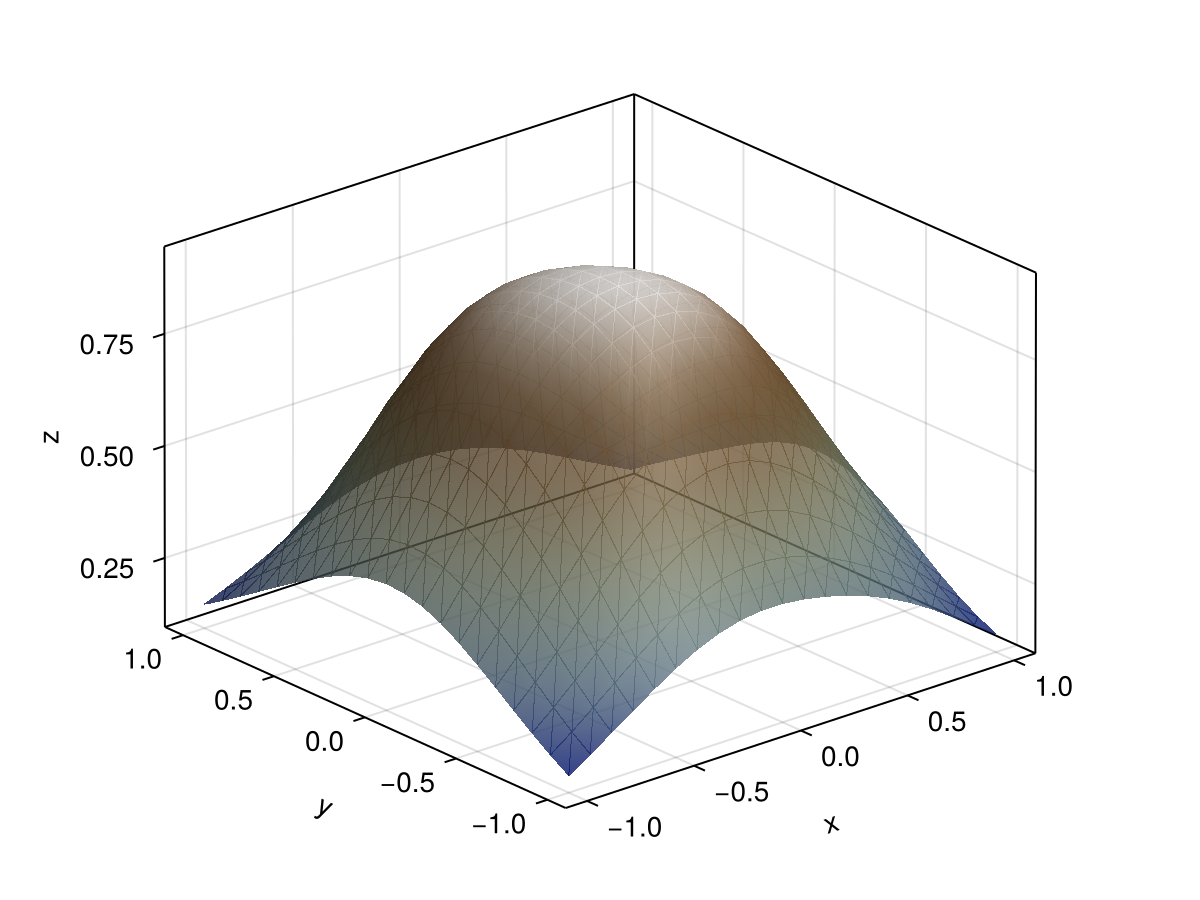

fig = Figure()
ax = Axis3(fig[1, 1])
surface!(x_vec, y_vec, [c([x, y], ps)[1] for x in x_vec, y in y_vec];
         alpha = .8, colormap = :darkterrain, transparency = true)
fig

Comparison with a Zygote-based pullback

The same training loop, with the gradient from Zygote. Its pullback returns a one-element tuple of the same NetworkParameters type, so the trailing [1] is the only difference between the two gradient functions:

import Zygote

zygote_gradient(ps, input_output) =
    Zygote.pullback(p -> pb.loss(c, p, input_output...), ps)[2](1)[1]

ps_zygote = deepcopy(ps₀)
@time train!(ps_zygote, zygote_gradient, n_epochs)

  0.872278 seconds (13.41 M allocations: 1.623 GiB, 19.65% gc time)

For training beyond this loop — optimizers such as Adam, batching, data loaders — use GeometricMachineLearning, whose optimizers take a SymbolicPullback in place of their Zygote-based one.
