Trust Region Methods for Optimization: A Julia Overview

Trust-region methods are a class of iterative algorithms used to (i) find a root of a nonlinear set of equations or (ii) find a local minimum of a function. Unlike Line Search methods (which pick a direction and then a step length), Trust Region methods define a maximum step size $\Delta$ and then find the best step within this neighborhood^[1]. In this neighborhood, it is assumed that a quadratic model $m_k(p)$ is a good approximation to $f(x_k + p)$, where $f$ is the objective function. So at each iteration one has to solve:

\[\min_{p \in \mathbb{R}^n} m_k(p) = f_k + g_k^T p + \frac{1}{2} p^T B_k p \quad \text{s.t. } \|p\| \le \Delta_k\]

Where:

• $g_k = \nabla f(x_k)$
• $B_k$ is the Hessian $\nabla^2 f(x_k)$ or an approximation thereof.

There exist different versions of trust region methods. We attempt to summarize some of them here.

In [3, 8] a trust region method is defined as follows:

1. Solve the Subproblem: Find $p_k$ that (at least approximately) solves:

\[\min_{\|p\| \le \Delta_k} m_k(p) = f_k + g_k^T p + \frac{1}{2} p^T B_k p\]

2. Evaluate the Ratio: Calculate the ratio of actual vs. predicted reduction:

\[\rho_k = \frac{f(x_k) - f(x_k + p_k)}{m_k(0) - m_k(p_k)}.\]

3. Update the Trust Region Radius:

• If $\rho_k < \frac{1}{4}$:
  • $\Delta_{k+1} \gets \frac{1}{4} \Delta_k$ (The model is poor; shrink the radius)
• Else:
  • If $\rho_k > \frac{3}{4}$ and $\|p_k\| = \Delta_k$:
    • $\Delta_{k+1} \gets \min(2\Delta_k, \bar{\Delta})$ (The model is excellent; expand the radius)
• Else:
  • $\Delta_{k+1} = \Delta_k$ (The model is okay; keep the radius)

4. Update the Iterate:

• If $\rho_k > \eta$:
  • $x_{k+1} \gets x_k + p_k$ (Step accepted)
• Else:
  • $x_{k+1} \gets x_k$ (Step rejected)

The ratio $\rho_k$ is used to gauge the quality of the model's prediction of the function within the trust region. If $\rho_k$ is too small, the model is considered poor and the trust region is shrunk. If $\rho_k$ is too large, the model is considered excellent and the trust region is expanded. If $\rho_k$ is within a certain range, the trust region radius is kept unchanged.

Solving the Subproblem

The efficiency and convergence properties of a trust-region method depend on how the subproblem in the first step is solved. Solving the subproblem exactly can be computationally expensive for large-scale problems. Therefore, several approximate strategies are commonly used.

The Cauchy Point

The Cauchy point $p_k^C$ is the simplest approximate solution. It is defined as the minimizer of the quadratic model $m_k$ along the steepest descent direction, subject to the trust-region constraint.

To compute it, we first define the vector $p_k^s$ which is the steepest descent direction scaled to the trust-region boundary:

\[p_k^s = -\frac{\Delta_k}{\|g_k\|} g_k.\]

We then find the scalar $\tau_k > 0$ that minimizes $m_k(\tau p_k^s) = f_k + \tau{}g_k^Tp_k^s + \frac{1}{2}\tau^2(p_k^s)^TB_kp_k^s$ s.t. $\tau \le 1$:

\[\tau_k = \begin{cases} 1 & \text{if } (p_k^s)^TB_kp_k^s \le 0, \\ \min(1, -g_k^T\frac{p_k^s}{(p_k^s)^TB_kp_k^s}) & \text{otherwise.} \end{cases}\]

Note that, because $g_k^Tp_k^s$ is negative by definition, if we have $(p_k^s)^TB_kp_k^s \le 0,$ then $\tau \mapsto m_k(\tau p_k^s)$ is contiuously decreasing and hence we pick $\tau = 1$ in this case.

After we determined $\tau$, the Cauchy point is

\[p_k^C = \tau_k p_k^s.\]

The Dogleg Method

The Dogleg method is a more sophisticated approximation introduced by Powell [5]. It is particularly effective when the Hessian $B_k$ (or its approximation) is positive definite. It constructs a piecewise linear path from the origin to the unconstrained Newton point.

The dogleg path consists of two line segments:

1. A segment from the origin to the unconstrained minimizer along the steepest descent direction $p^U$:

\[p^U = -\frac{g_k^T g_k}{g_k^T B_k g_k} g_k.\]

2. A segment from $p^U$ to the full Newton step $p^B$:

\[p^B = -B_k^{-1} g_k.\]

The algorithm chooses $p_k$ based on the position of these points relative to the radius $\Delta_k$:

• If $\|p^B\| \le \Delta_k$, the model is trusted all the way to the Newton point; we set $p_k = p^B$.
• If $\|p^U\| \ge \Delta_k$, we take a step of length $\Delta_k$ in the steepest descent direction; $p_k = \frac{\Delta_k}{\|p^U\|} p^U$.
• If $\|p^U\| < \Delta_k < \|p^B\|$, we find the point $p_k$ where the segment connecting $p^U$ and $p^B$ intersects the trust-region boundary ($\|p_k\| = \Delta_k$).

This segment is called the dogleg path and denoted by:

\[\tilde{p}(\tau) = \begin{cases} \tau{}p^U & \text{if } \tau \in [0, 1] \\ p^U + (\tau - 1)(p^B - p^U) & \text{if } \tau \in (1, 2] \end{cases}\]

The intersection point in the third case is found by solving the quadratic equation:

\[\|p^U + (\tau - 1)(p^B - p^U)\|^2 = \Delta_k^2\]

for $\tau \in (1, 2]$. The two solutions are (for $\beta = \tau - 1$):

\[\beta = \frac{-(p^U)^T(p^B - p^U) \pm \sqrt{(p^U)^T(p^B - p^U)^2 - \|p^B - p^U\|^2(\|p^U\|^2 - \Delta_k^2)}}{\|p^B - p^U\|^2}\]

The solution that lies in the interval $(1, 2]$ is chosen.

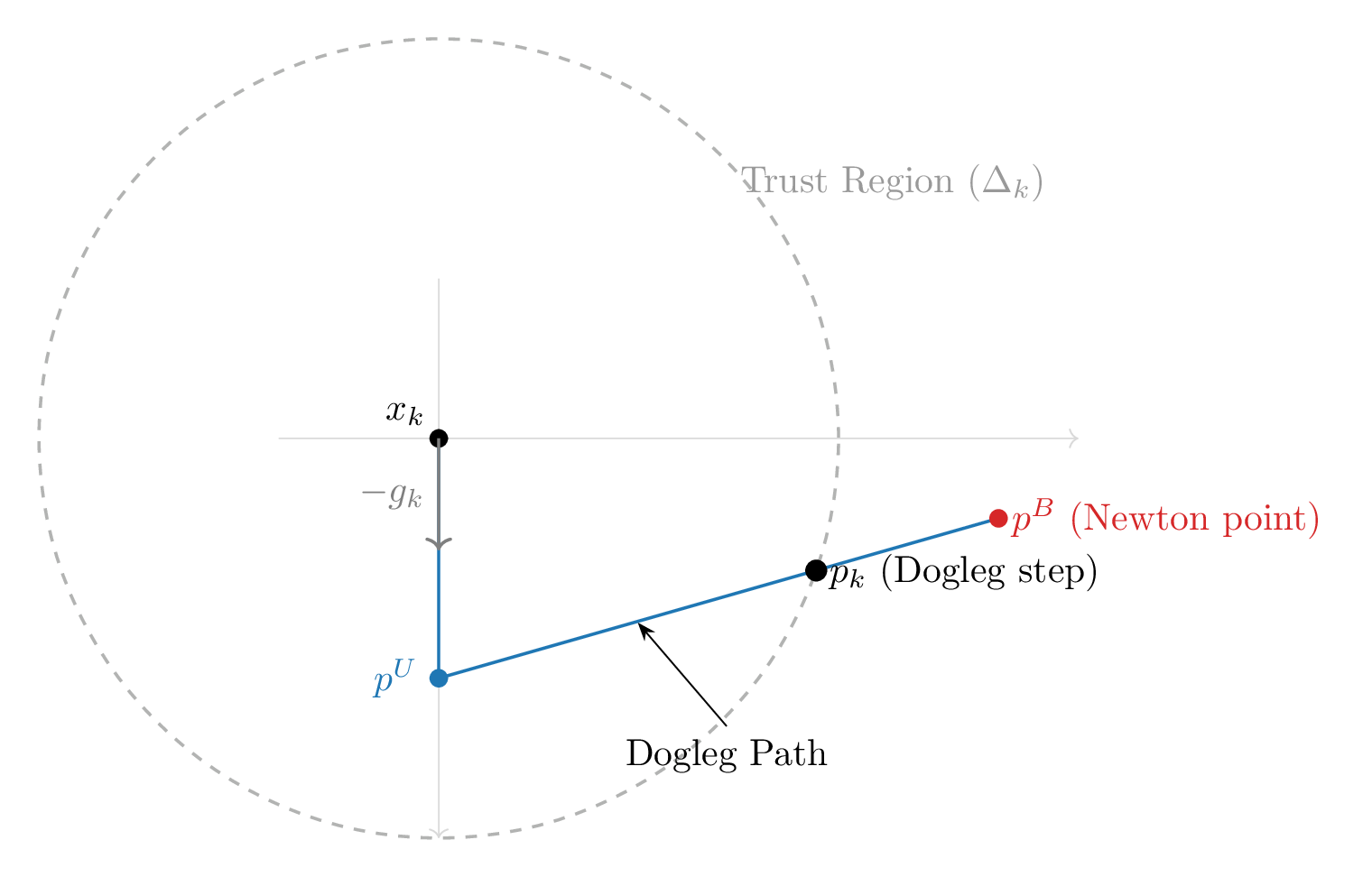

This can be visualized:
