Quadratic Line Search

Quadratic line search is based on making a quadratic approximation to an optimizer problem and then pick the minimum of this quadratic approximation as the next iteration of $\alpha$.

The quadratic polynomial is built the following way^[1]:

\[p(\alpha) = f^\mathrm{ls}(0) + (f^\mathrm{ls})'(0)\alpha + p_2\alpha^2,\]

and we also call $p_0:=f^\mathrm{ls}(0)$ and $p_1:=(f^\mathrm{ls})'(0)$. The coefficient $p_2$ is then determined the following way:

• take a value $\alpha$ (typically initialized as SimpleSolvers.DEFAULT_ARMIJO_α₀) and compute $y = f^\mathrm{ls}(\alpha)$,
• set $p_2 \gets \frac{(y - p_0 - p_1\alpha)}{\alpha^2}.$

After the polynomial is found we then take its minimum (analogously to the Bierlaire quadratic line search) and check if it satisfies the sufficient decrease condition. If it does not satisfy this condition we repeat the process, but with the current $\alpha$ as the starting point for the line search (instead of the initial SimpleSolvers.DEFAULT_ARMIJO_α₀).

Example

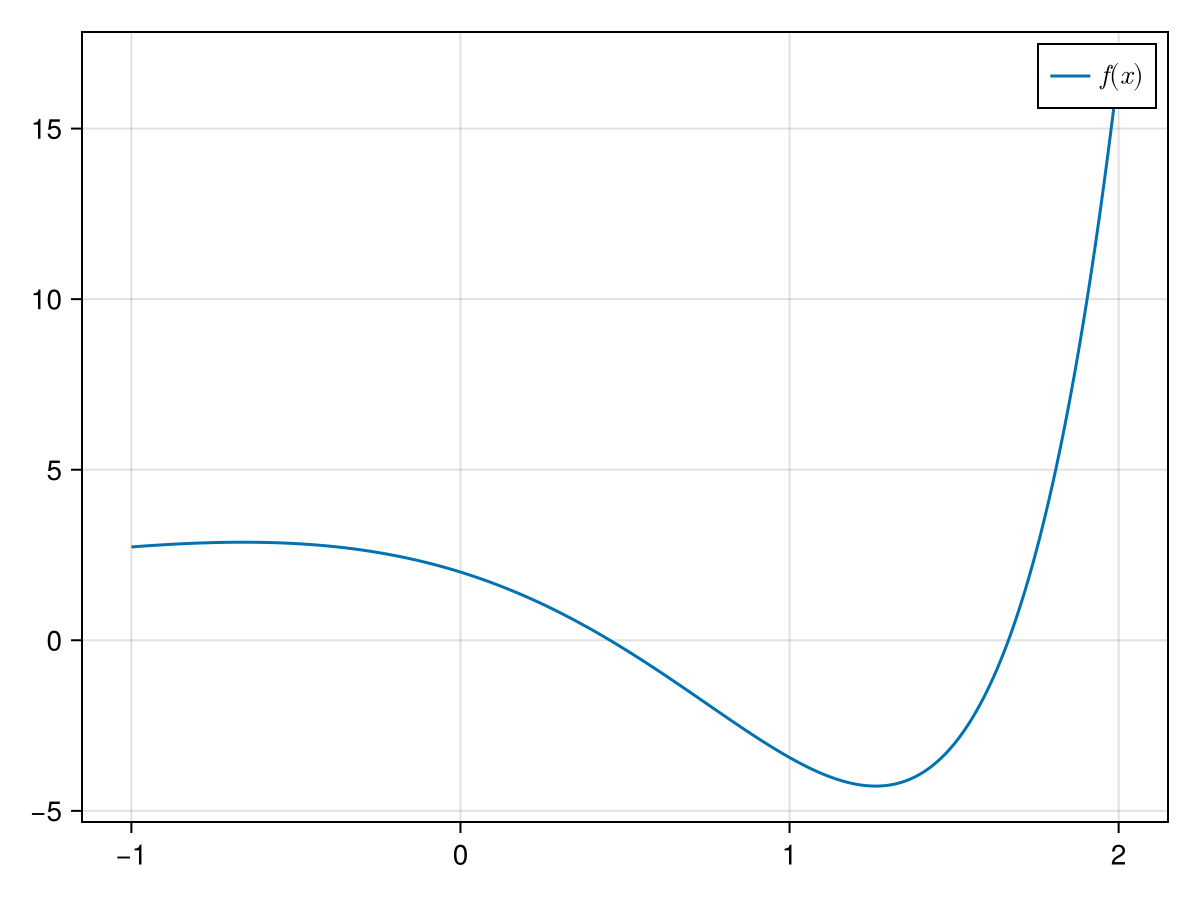

Here we treat the following problem:

f(x::Union{T, Vector{T}}) where {T<:Number} = exp.(x) .* (x .^ 3 - 5x + 2x) .+ 2one(T)
f!(y::AbstractVector{T}, x::AbstractVector{T}) where {T} = y .= f.(x)
F!(y::AbstractVector{T}, x::AbstractVector{T}, params) where {T} = f!(y, x)

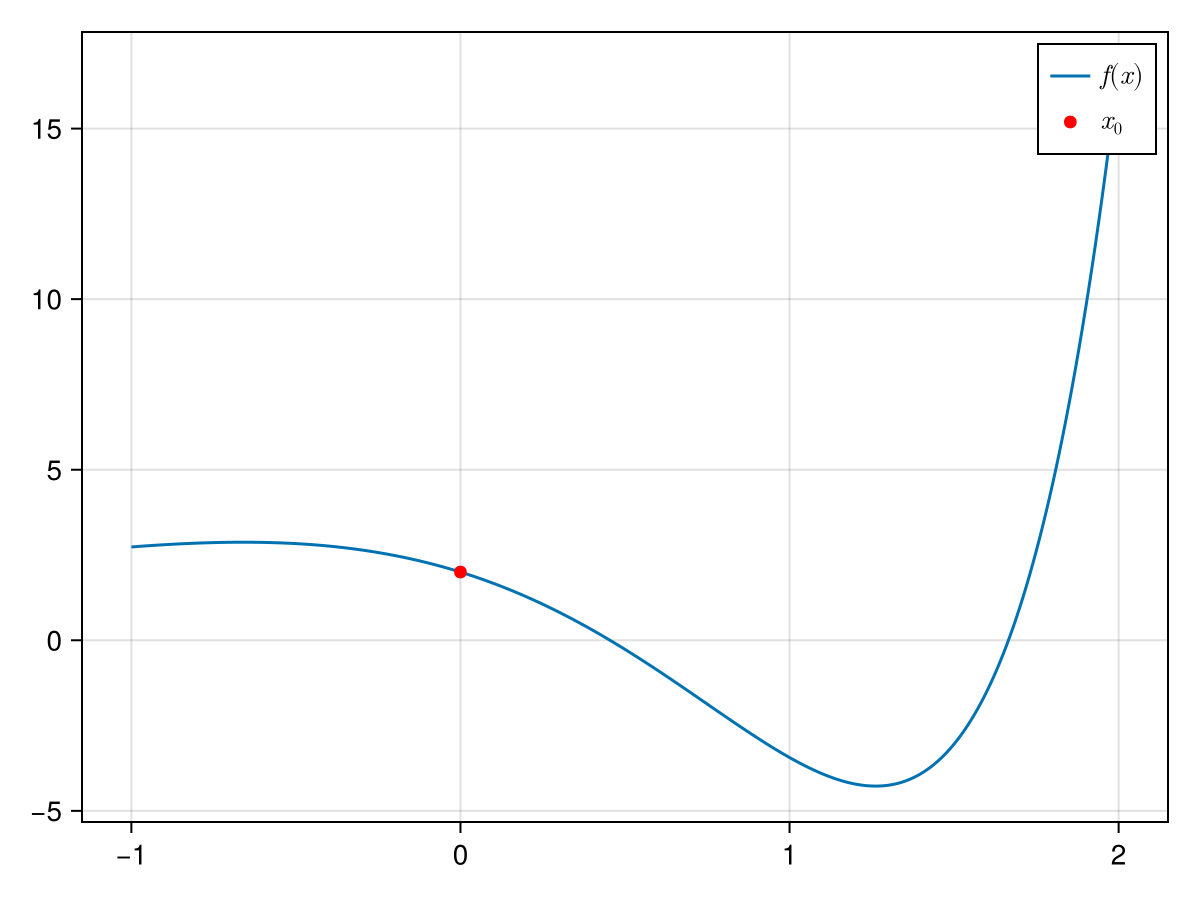

We now want to use quadratic line search to find the root of this function starting at $x = 0$. We compute the Jacobian of $f$ and initialize a line search problem:

using SimpleSolvers

function J!(j::AbstractMatrix{T}, x::AbstractVector{T}, params) where {T}
    SimpleSolvers.ForwardDiff.jacobian!(j, f, x)
end

# allocate solver
solver = NewtonSolver(x, f(x); F = F!, DF! = J!)
# initialize solver
params = NullParameters()
state = NonlinearSolverState(x)
jacobian!(solver, x, params)

# compute rhs
F!(cache(solver).rhs, x, params)
rmul!(cache(solver).rhs, -1)

# multiply rhs with jacobian
factorize!(linearsolver(solver), jacobianmatrix(solver))
ldiv!(direction(cache(solver)), linearsolver(solver), cache(solver).rhs)
nlp = NonlinearProblem(F!, J!, x, f(x))
state = NonlinearSolverState(x)
params = (x = state.x, parameters = NullParameters())
update!(state, x, f(x))
ls_obj = linesearch_problem(nlp, jacobian(solver), cache(solver))

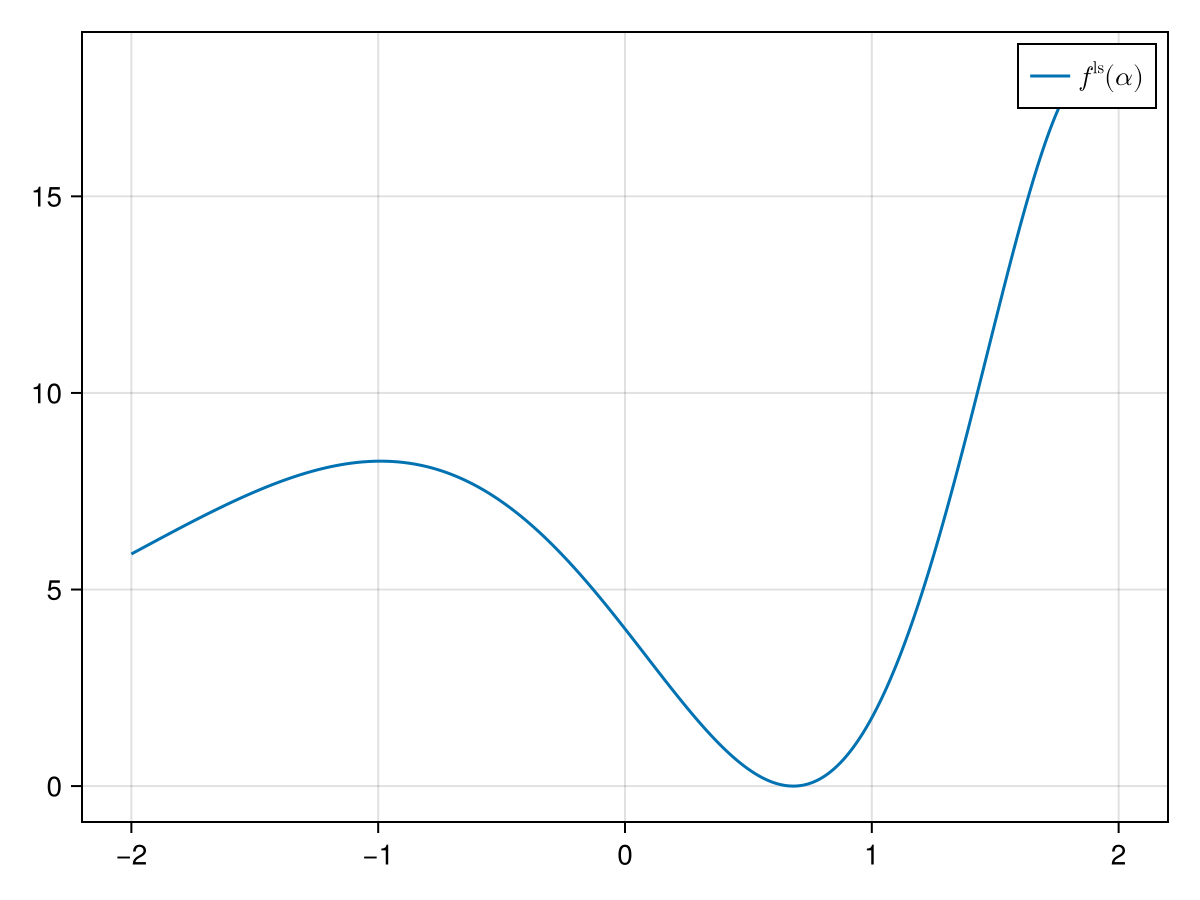

fˡˢ(alpha) = ls_obj.F(alpha, params)
∂fˡˢ∂α(alpha) = ls_obj.D(alpha, params)

The first two coefficient of the polynomial $p$ (i.e. $p_1$ and $p_2$) are easy to compute:

p₀ = fˡˢ(0.)

4.0

p₁ = ∂fˡˢ∂α(0.)

-8.0

Initializing $\alpha$

In order to compute $p_2$ we first have to initialize $\alpha$. We start by guessing an initial $\alpha$ as SimpleSolvers.DEFAULT_ARMIJO_α₀. If this initial alpha does not satisfy the SimpleSolvers.BracketMinimumCriterion, i.e. it holds that $f^\mathrm{ls}(\alpha_0) > f^\mathrm{ls}(0)$, we call SimpleSolvers.bracket_minimum_with_fixed_point (similarly to calling SimpleSolvers.bracket_minimum for standard bracketing).

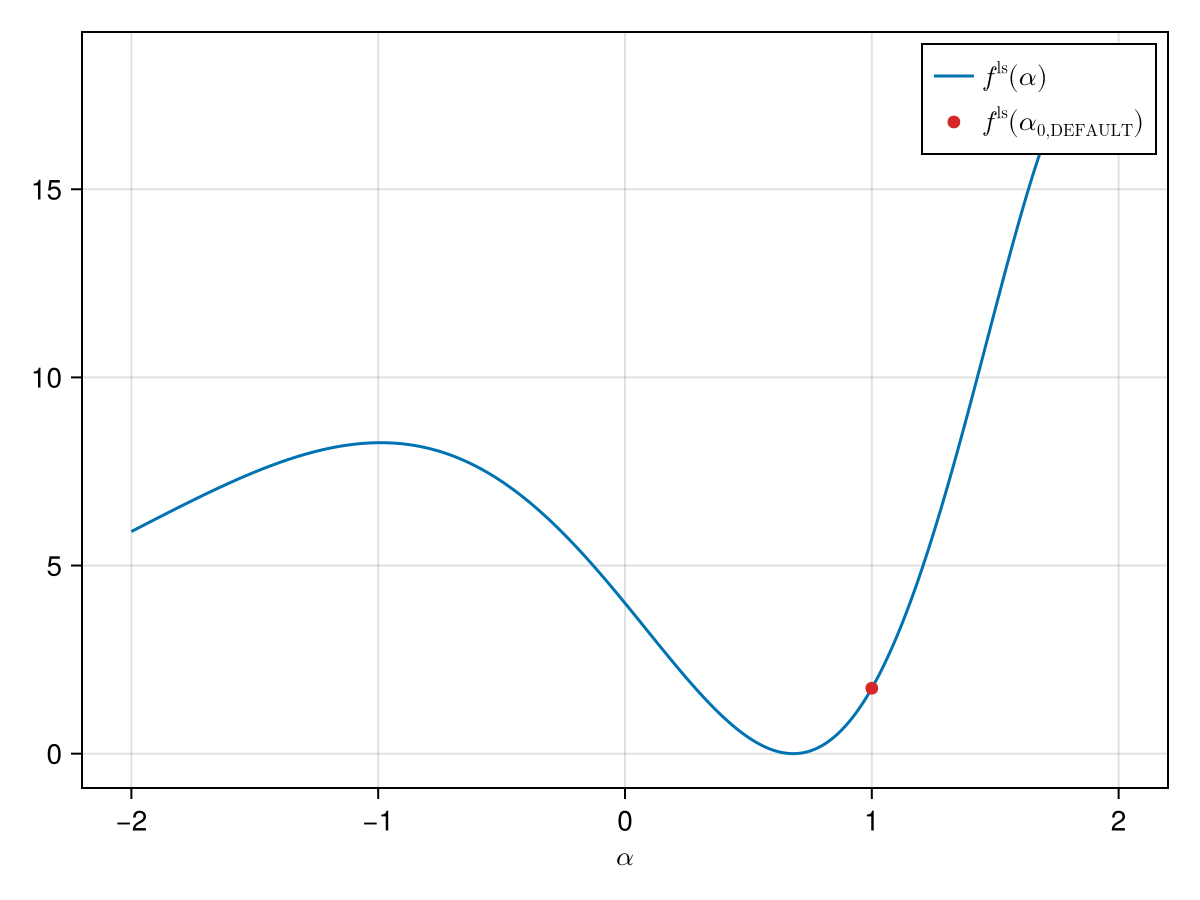

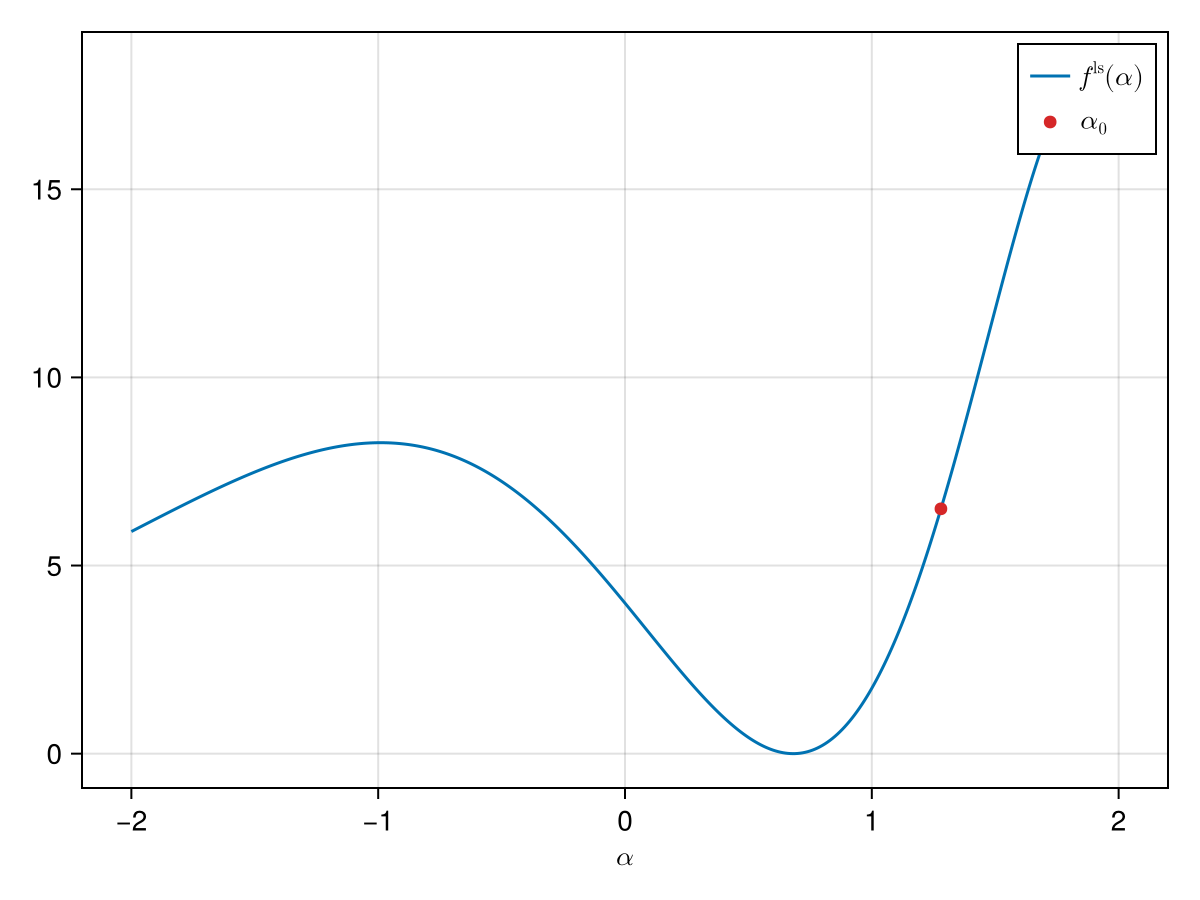

Looking at SimpleSolvers.DEFAULT_ARMIJO_α₀, we see that the SimpleSolvers.BracketMinimumCriterion is not satisfied:

We therefore see that calling SimpleSolvers.determine_initial_α returns a different $\alpha$ (the result of calling SimpleSolvers.bracket_minimum_with_fixed_point):

state = NonlinearSolverState(x)
update!(state, x, f(x))
params = (x = state.x, parameters = NullParameters())
α₀ = determine_initial_α(ls_obj, params, SimpleSolvers.DEFAULT_ARMIJO_α₀)

1.28

We can now finally compute $p_2$ and determine the minimum of the polynomial:

y = fˡˢ(α₀)
p₂ = (y - p₀ - p₁*α₀) / α₀^2
p(α) = p₀ + p₁ * α + p₂ * α^2

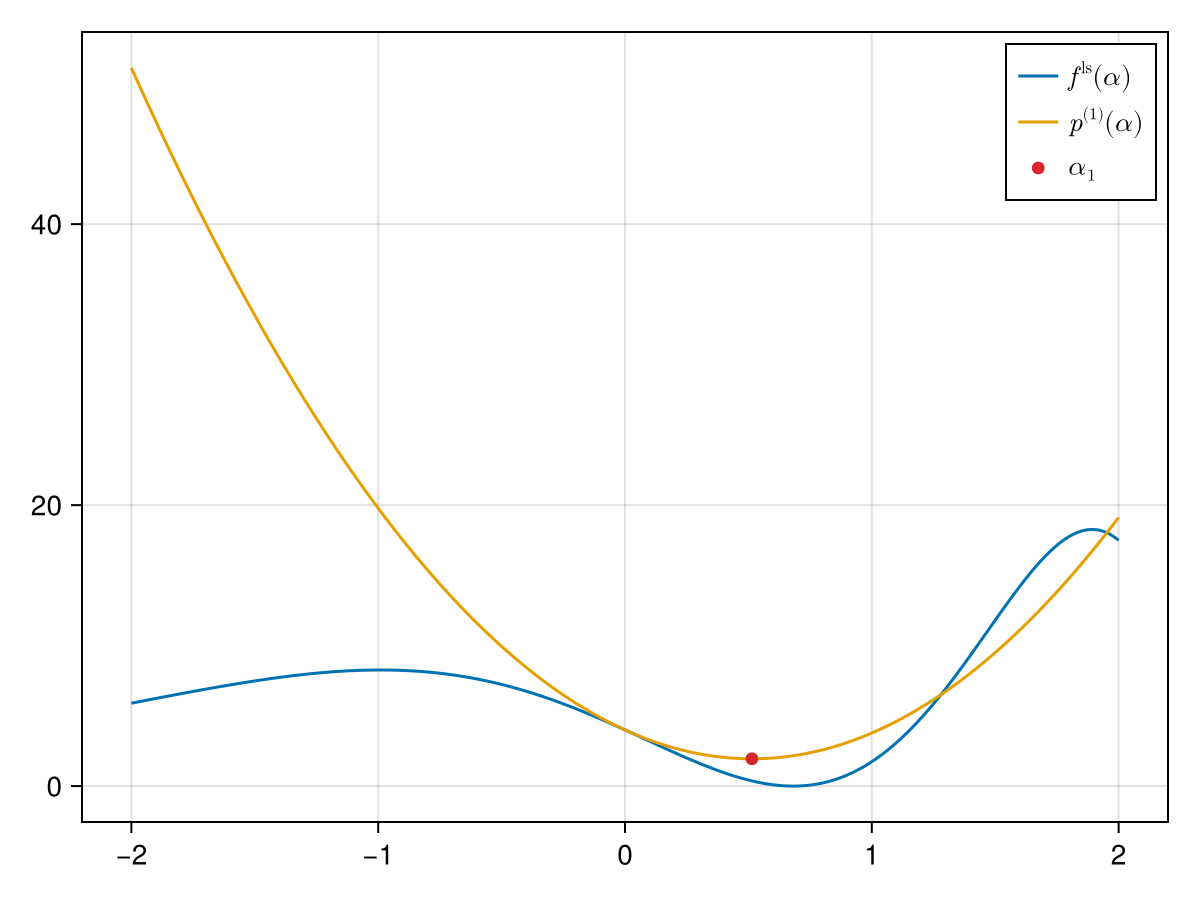

α₁ = -p₁ / (2p₂)

0.5141386947276962

We now check wether $\alpha_1$ satisfies the sufficient decrease condition:

sdc = SufficientDecreaseCondition(DEFAULT_WOLFE_c₁, fˡˢ(0.), ∂fˡˢ∂α(0.), fˡˢ)
sdc(α₁)

true

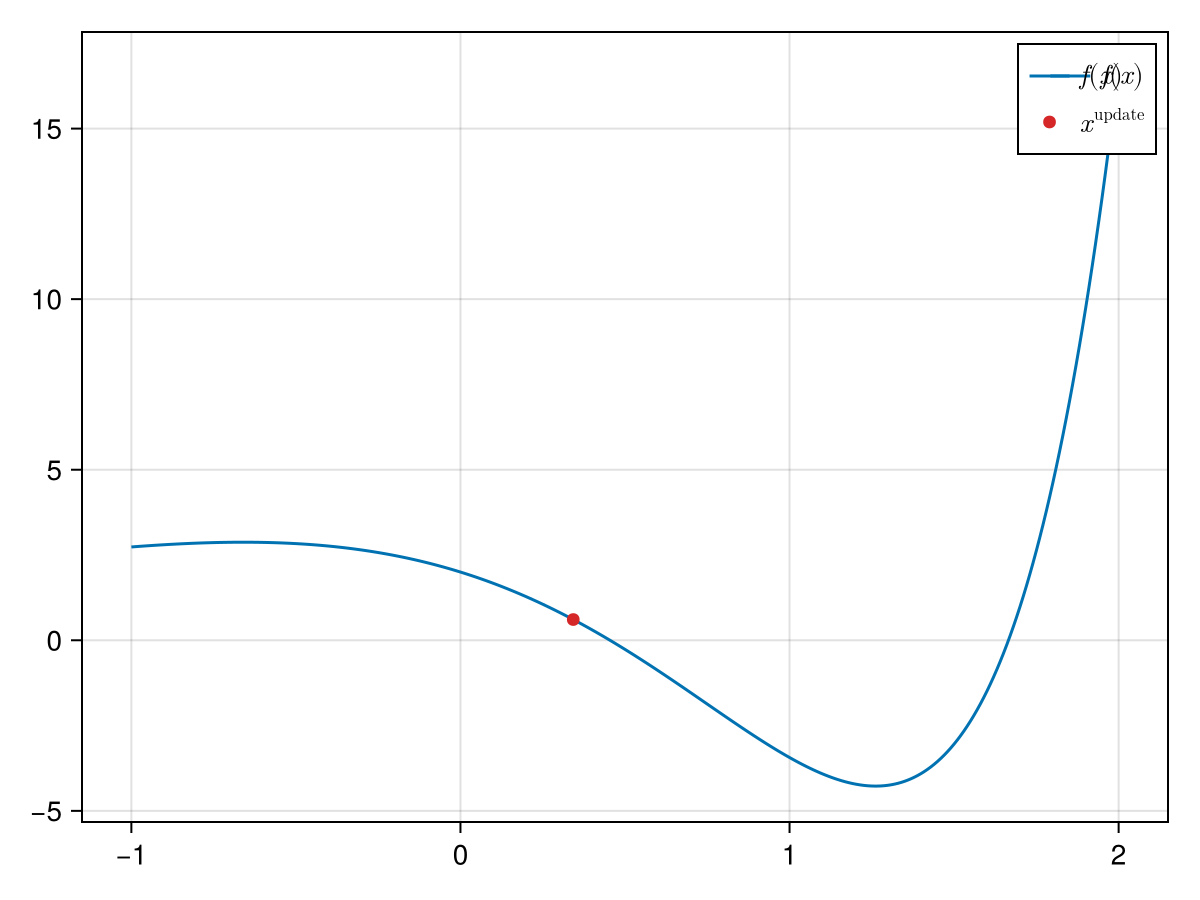

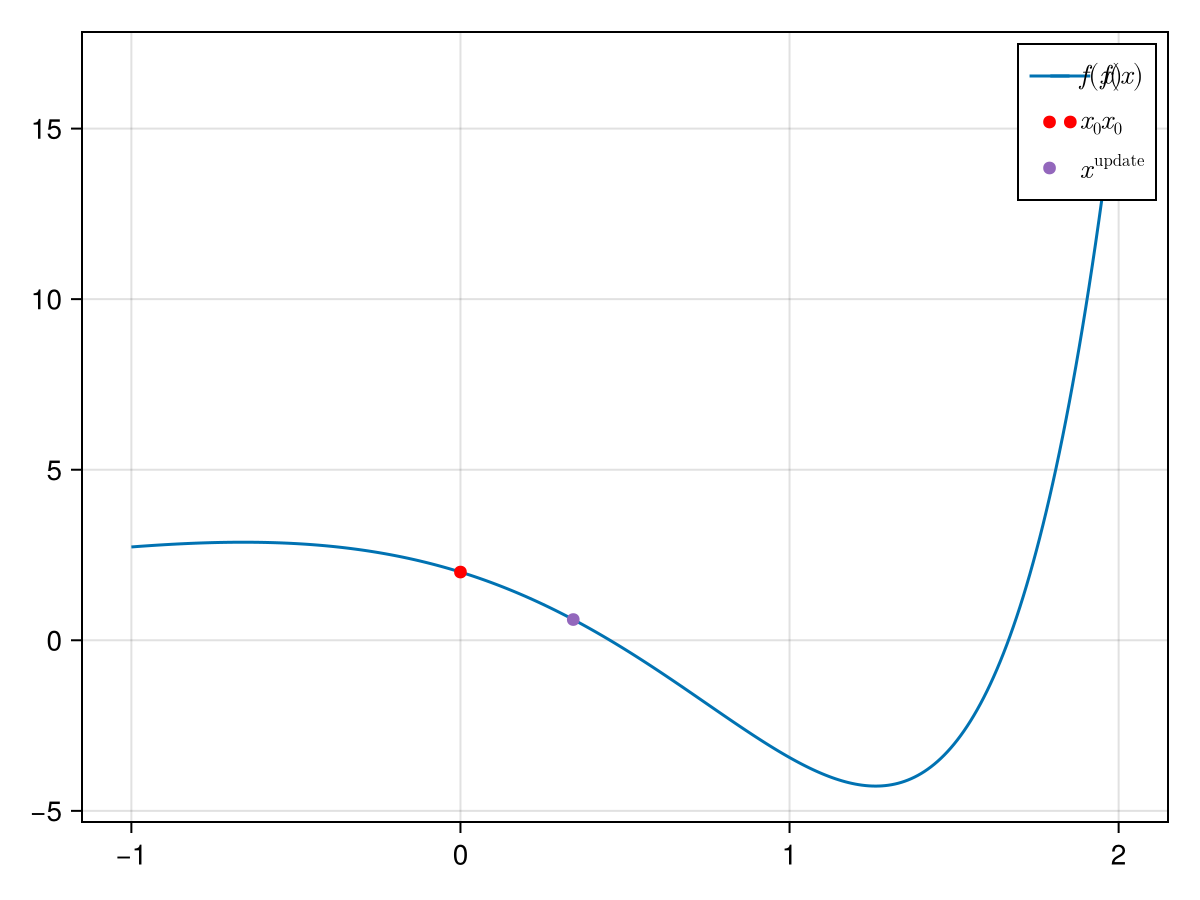

We now move the original $x$ in the Newton direction with step length $\alpha_1$ by using SimpleSolvers.compute_new_iterate!:

compute_new_iterate!(x, α₁, direction(cache(solver)))

1-element Vector{Float64}:
 0.3427591298184641

And we see that we already very close to the root.

Example for Optimization

We look again at the same example as before, but this time we want to find a minimum and not a root. We hence use SimpleSolvers.linesearch_problem not for a NewtonSolver, but for an Optimizer:

using SimpleSolvers: NewtonOptimizerCache, initialize!, gradient

x₀, x₁ = [0.], x
obj = OptimizerProblem(sum∘f, x₀)
grad = GradientAutodiff{Float64}(obj.F, length(x))
_cache = NewtonOptimizerCache(x₀)
state = NewtonOptimizerState(x₀)
params = (x = state.x̄,)
hess = HessianAutodiff(obj, x₀)
H = SimpleSolvers.alloc_h(x)
hess(H, x₀)
update!(_cache, state, grad, hess, x₀)
hess(H, x₁)
update!(_cache, state, grad, hess, x₁)
ls_obj = linesearch_problem(obj, grad, _cache)

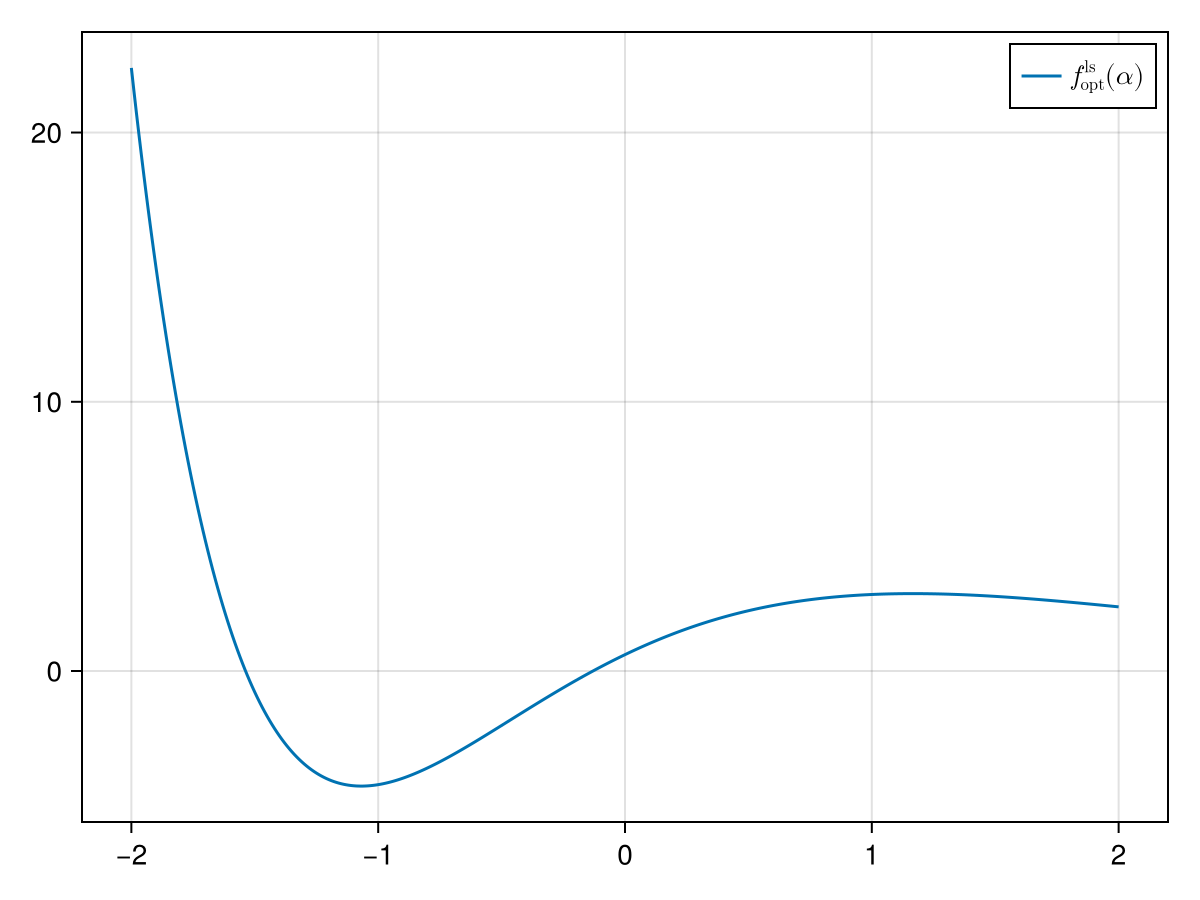

fˡˢ(alpha) = ls_obj.F(alpha, params)
∂fˡˢ∂α(alpha) = ls_obj.D(alpha, params)

We now again want to find the minimum with quadratic line search and repeat the procedure above:

p₀ = fˡˢ(0.)

2.0

p₁ = ∂fˡˢ∂α(0.)

2.580513458786253

params = (x = state.x̄, parameters = NullParameters())
α₀ = determine_initial_α(ls_obj, params, SimpleSolvers.DEFAULT_ARMIJO_α₀)
y = fˡˢ(α₀)
p₂ = (y - p₀ - p₁*α₀) / α₀^2
p(α) = p₀ + p₁ * α + p₂ * α^2

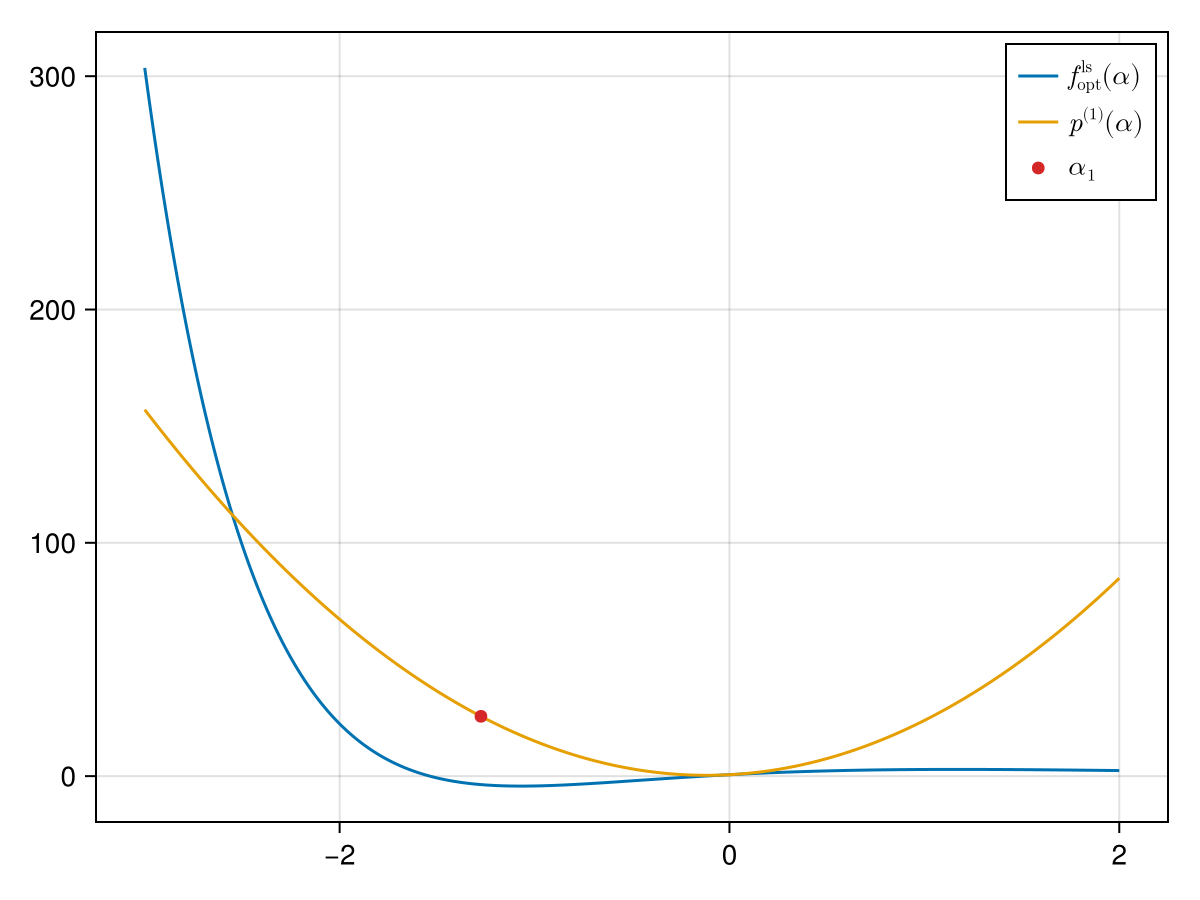

α₁ = -p₁ / (2p₂)

-0.1988165696410768

We now again move the original $x$ in the Newton direction with step length $\alpha_1$:

compute_new_iterate!(x, α₁, direction(_cache))

1-element Vector{Float64}:
 0.5137754077479685

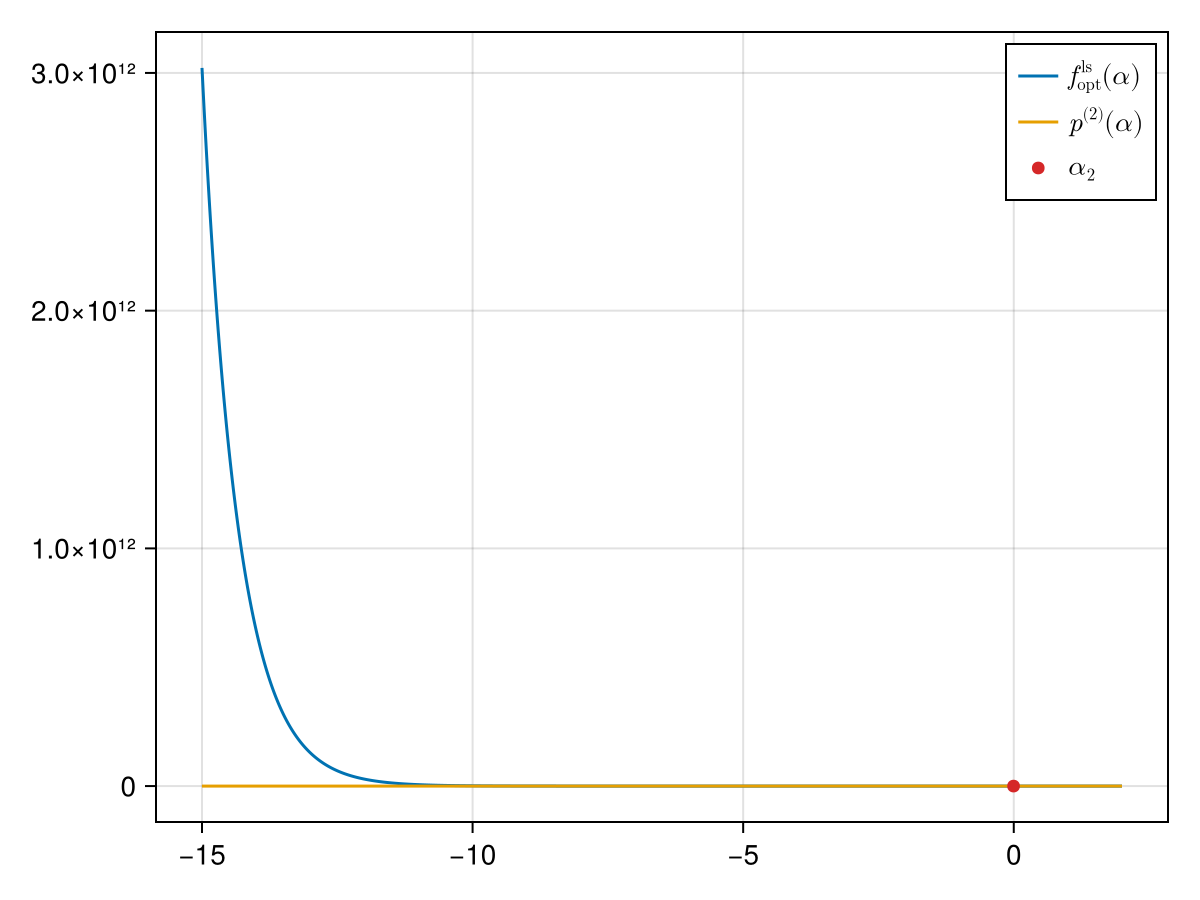

We make another iteration:

hess(H, x)
update!(_cache, state, grad, hess, x)
ls_obj = linesearch_problem(obj, grad, _cache)
fˡˢ(alpha) = ls_obj.F(alpha, params)
∂fˡˢ∂α(alpha) = ls_obj.D(alpha, params)
p₀ = fˡˢ(0.)
p₁ = ∂fˡˢ∂α(0.)
params = (x = state.x̄, parameters = NullParameters())
α₀⁽²⁾ = determine_initial_α(ls_obj, params, SimpleSolvers.DEFAULT_ARMIJO_α₀)
y = fˡˢ(α₀)
p₂ = (y - p₀ - p₁*α₀⁽²⁾) / α₀⁽²⁾^2
p(α) = p₀ + p₁ * α + p₂ * α^2
α₂ = -p₁ / (2p₂)

-0.003921611731926922

We now update $x$:

using SimpleSolvers: compute_new_iterate
x .= compute_new_iterate(x, α₂, direction(_cache))

1-element Vector{Float64}:
 0.5189490483419136

We finally compute a third iterate:

hess(H, x)
update!(_cache, state, grad, hess, x)
ls_obj = linesearch_problem(obj, grad, _cache)

fˡˢ(alpha) = ls_obj.F(alpha, params)
∂fˡˢ∂α(alpha) = ls_obj.D(alpha, params)
p₀ = fˡˢ(0.)
p₁ = ∂fˡˢ∂α(0.)
params = (x = state.x̄, parameters = NullParameters())
α₀⁽³⁾ = determine_initial_α(ls_obj, params, SimpleSolvers.DEFAULT_ARMIJO_α₀)
y = fˡˢ(α₀)
p₂ = (y - p₀ - p₁*α₀⁽³⁾) / α₀^2
p(α) = p₀ + p₁ * α + p₂ * α^2
α₃ = -p₁ / (2p₂)

-0.014195098040992104

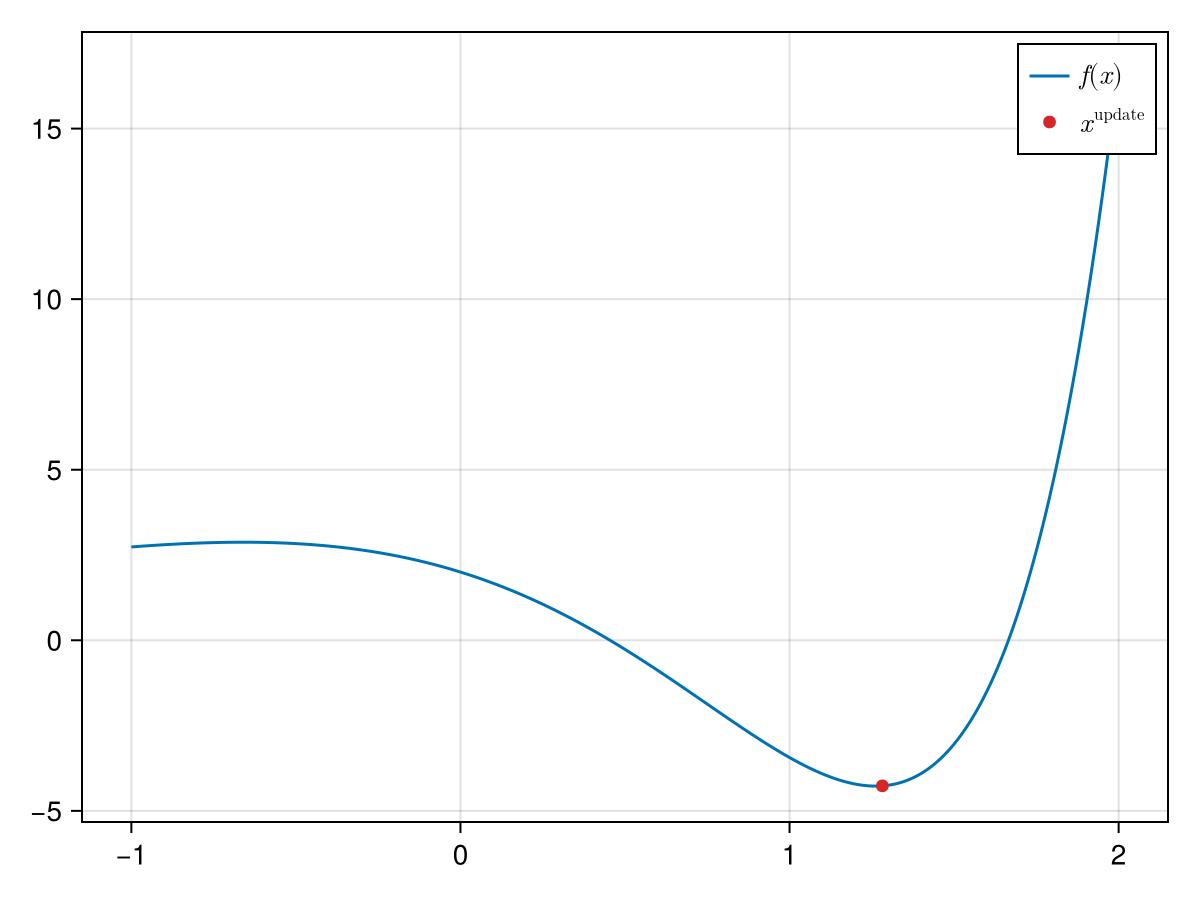

x .= compute_new_iterate(x, α₃, direction(_cache))

1-element Vector{Float64}:
 0.5380119559453095

Example II

Here we consider the same example as when discussing the Bierlaire quadratic line search.

state = NonlinearSolverState(x)
update!(state, x, f(x))
params = (x = state.x, parameters = NullParameters())
ls_obj = linesearch_problem(nlp, JacobianFunction{Float64}(F!, J!), cache(solver))
fˡˢ(alpha) = ls_obj.F(alpha, params)
∂fˡˢ∂α(alpha) = ls_obj.D(alpha, params)

We now try to find a minimum of $f^\mathrm{ls}$ with quadratic line search. For this we first need to find a bracket; we again do this with SimpleSolvers.bracket_minimum_with_fixed_point^[2]:

(a, b) = SimpleSolvers.bracket_minimum_with_fixed_point(fˡˢ, ∂fˡˢ∂α, 0.)

(0.0, 1.28)

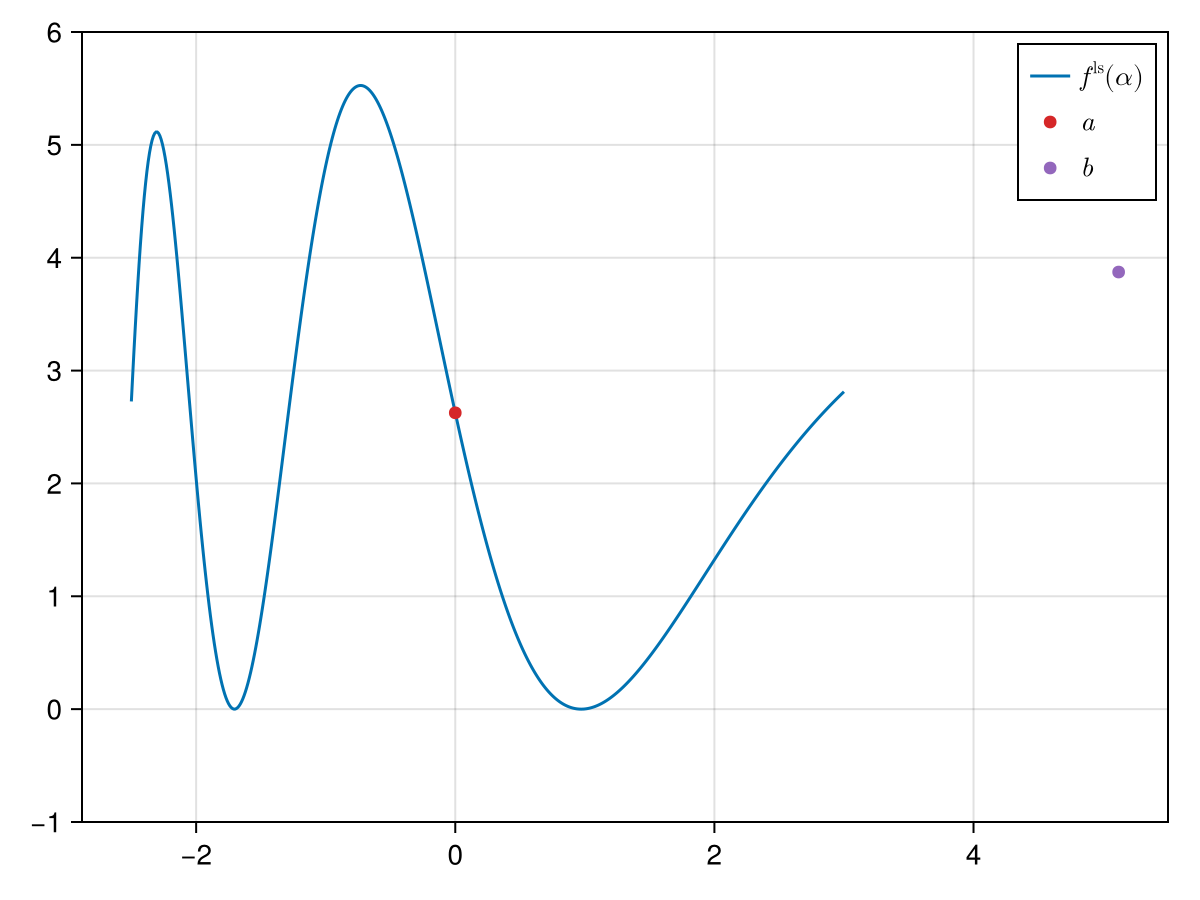

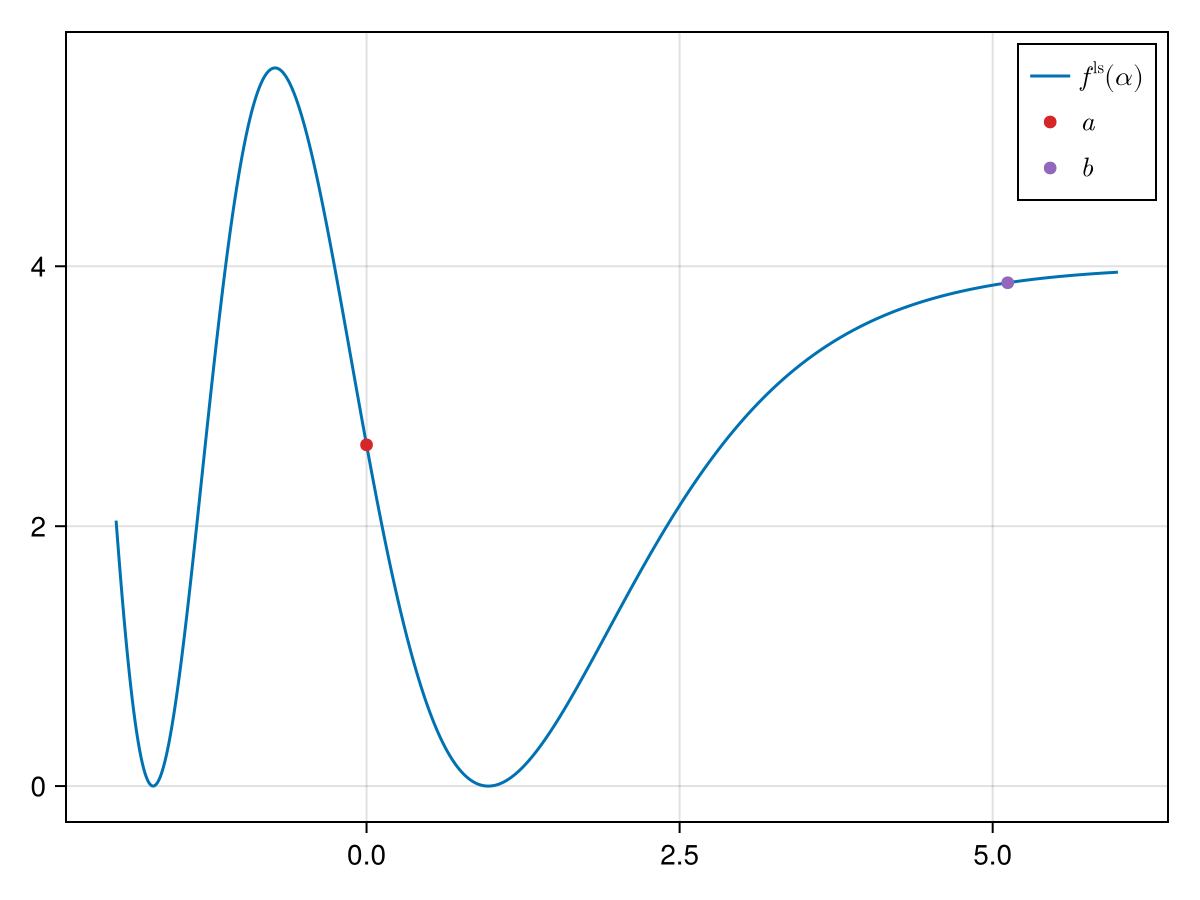

We plot the bracket:

using CairoMakie
mred = RGBf(214 / 256, 39 / 256, 40 / 256)
mpurple = RGBf(148 / 256, 103 / 256, 189 / 256)
mgreen = RGBf(44 / 256, 160 / 256, 44 / 256)
mblue = RGBf(31 / 256, 119 / 256, 180 / 256)
morange = RGBf(255 / 256, 127 / 256, 14 / 256)

fig = Figure()
ax = Axis(fig[1, 1])
alpha = -2:.01:6.
lines!(ax, alpha, fˡˢ.(alpha); label = L"f^\mathrm{ls}(\alpha)")
scatter!(ax, a, fˡˢ(a); color = mred, label = L"a")
scatter!(ax, b, fˡˢ(b); color = mpurple, label = L"b")
axislegend(ax)
save("f_ls_1.png", fig)

We now build the polynomial:

p₀ = fˡˢ(a)
p₁ = ∂fˡˢ∂α(a)
y = fˡˢ(b)
p₂ = (y - p₀ - p₁*b) / b^2
p(α) = p₀ + p₁ * α + p₂ * α^2

and compute its minimum:

αₜ = -p₁ / (2p₂)

1.0063463859825368

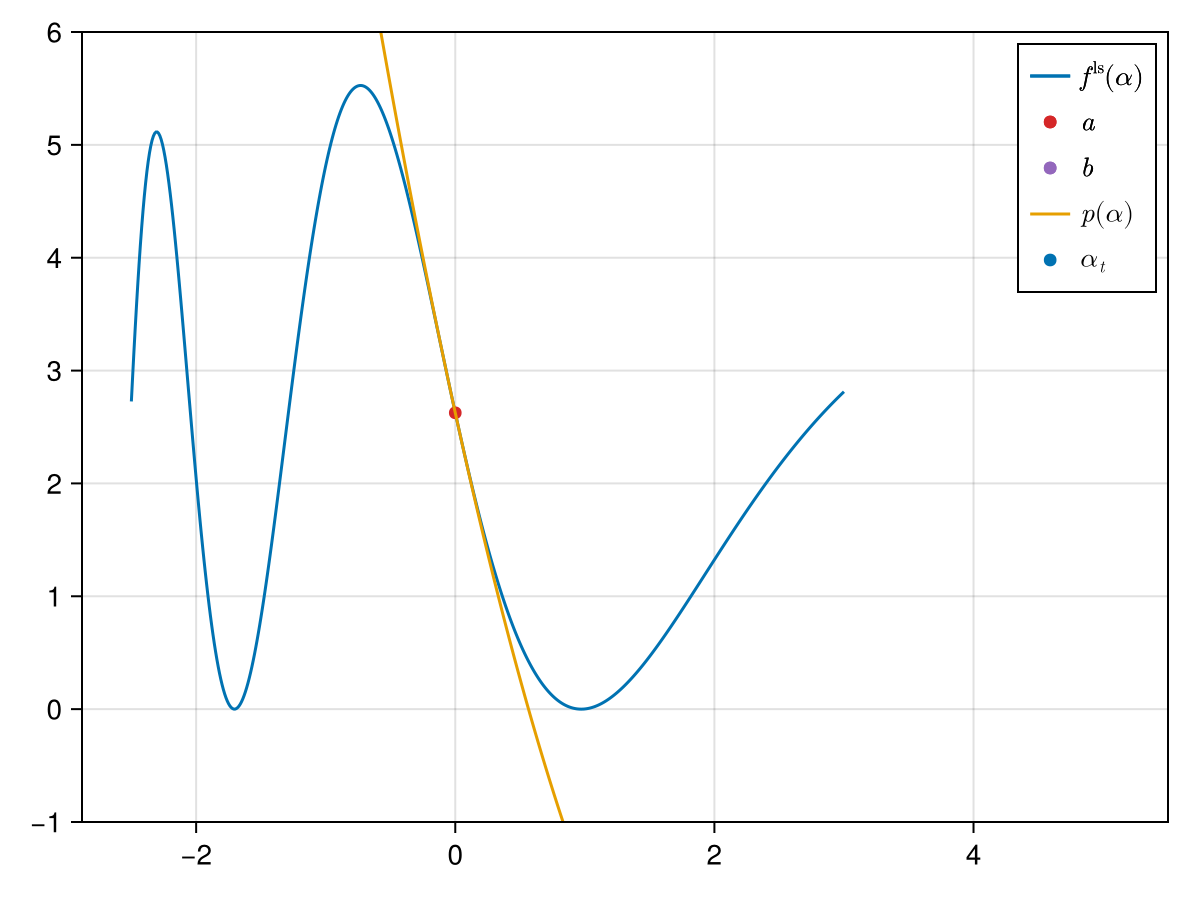

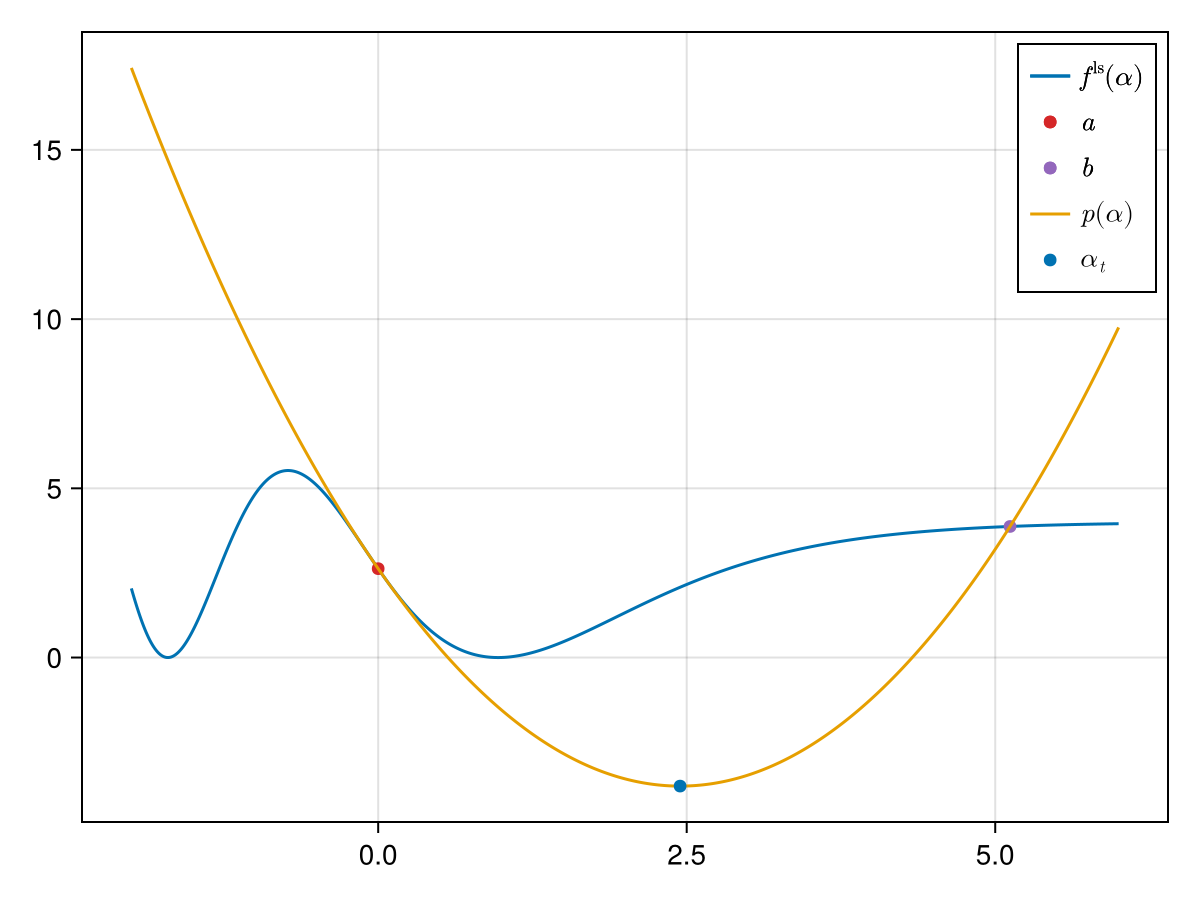

lines!(ax, alpha, p.(alpha); label = L"p(\alpha)")
scatter!(ax, αₜ, p(αₜ); label = L"\alpha_t")
axislegend(ax)
save("f_ls_2.png", fig)

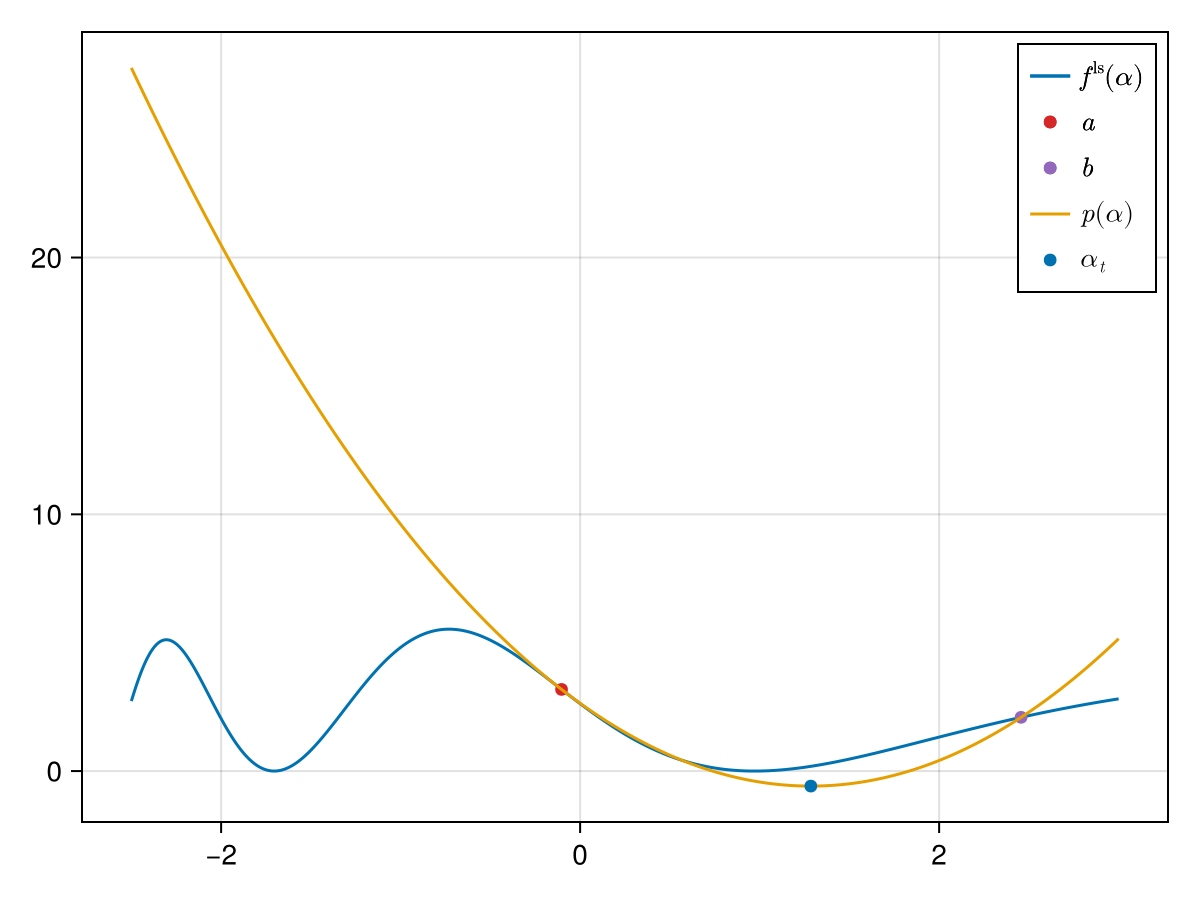

We now set $a \gets \alpha_t$ and perform another iteration:

(a, b) = SimpleSolvers.bracket_minimum_with_fixed_point(fˡˢ, ∂fˡˢ∂α, αₜ)

(0.9363463859825367, 1.0163463859825368)

We again build the polynomial:

p₀ = fˡˢ(a)
p₁ = ∂fˡˢ∂α(a)
y = fˡˢ(b)
p₂ = (y - p₀ - p₁*(b-a)) / (b-a)^2
p(α) = p₀ + p₁ * (α-a) + p₂ * (α-a)^2

and compute its minimum:

αₜ = -p₁ / (2p₂) + a

0.9726800175181818
