Example of a Neural Network with a Grassmann Layer

Here we show how to implement a neural network that contains a layer whose weight is an element of the Grassmann manifold and where this is useful. Recall that the Grassmann manifold $Gr(n, N)$ is the set of vector spaces of dimension $n$ embedded in $\mathbb{R}^N$. So if we optimize on the Grassmann manifold, we optimize for an ideal $n$-dimensional vector space in the bigger space $\mathbb{R}^N$.

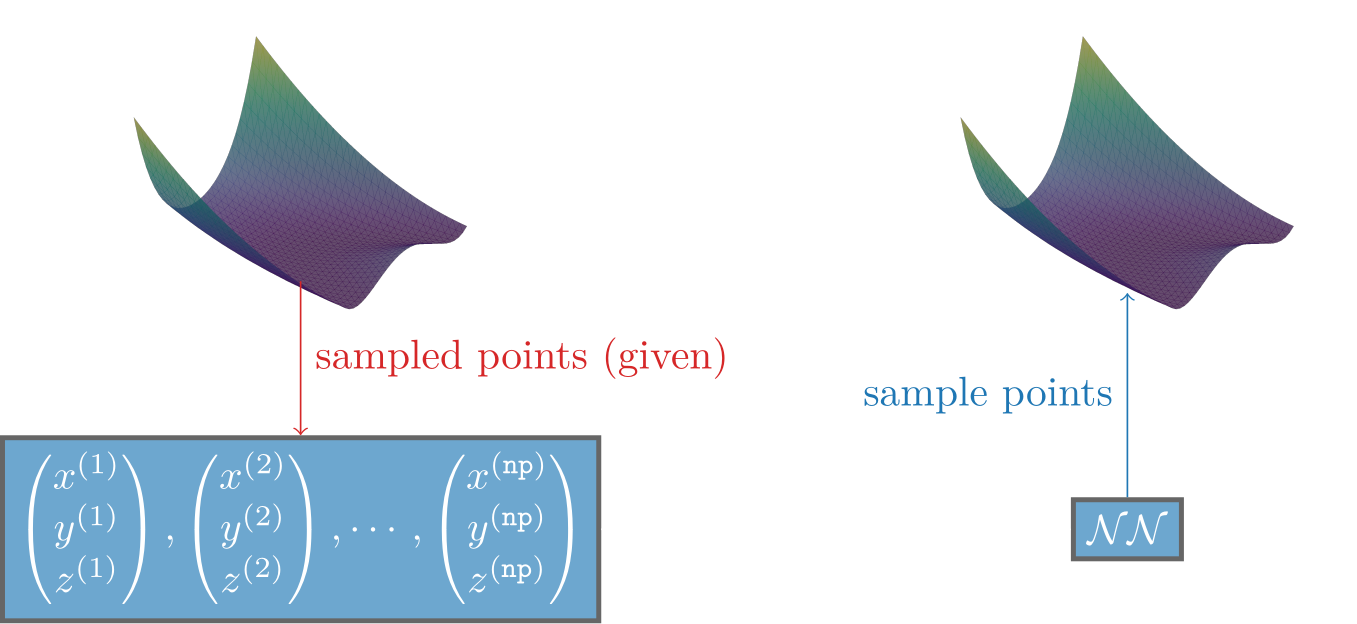

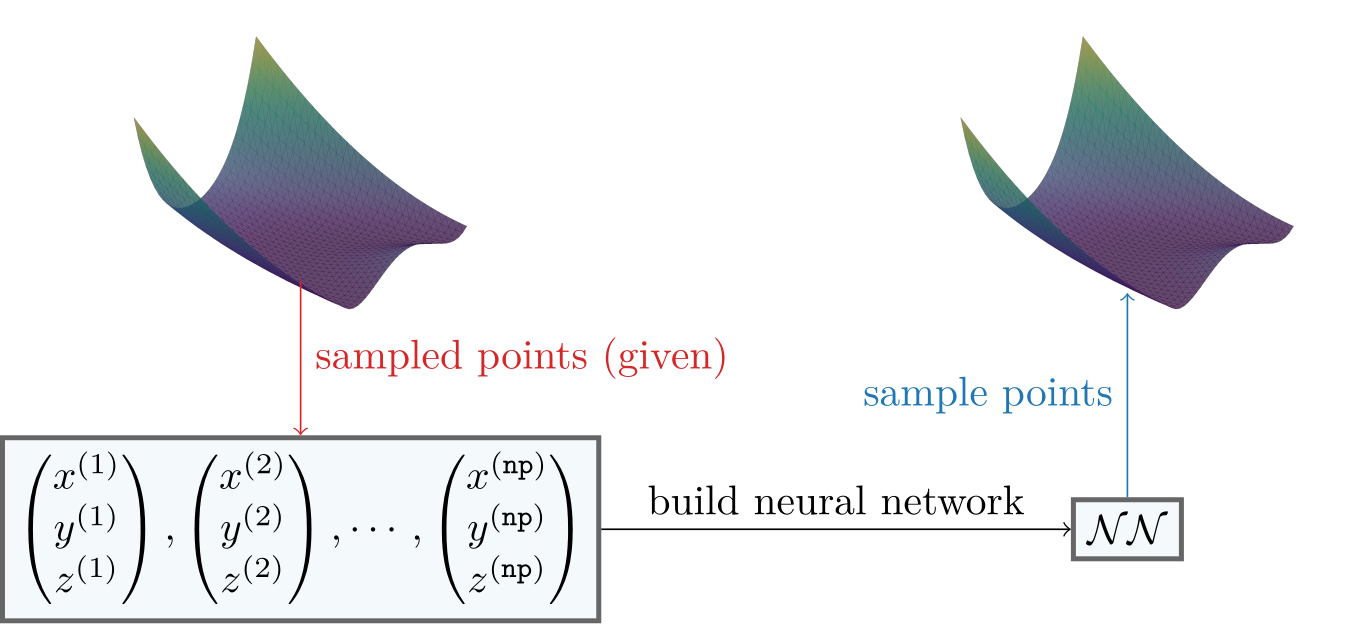

We visualize this:

So assume that we are given data on a nonlinear manifold:

\[\begin{pmatrix} x_1^{(1)} \\ x_2^{(1)} \\ \vdots \\ x_N^{(1)} \end{pmatrix}, \begin{pmatrix} x_1^{(2)} \\ x_2^{(2)} \\ \vdots \\ x_N^{(2)} \end{pmatrix}, \cdots, \begin{pmatrix} x_1^{(\mathtt{nop})} \\ x_2^{(\mathtt{nop})} \\ \vdots \\ x_N^{(\mathtt{nop})} \end{pmatrix} =: \mathcal{D} \subset \mathcal{M}\subset\mathbb{R}^N``,\]

and $\mathrm{dim}(\mathcal{M}) = n.$ We want to obtain additional data on this manifold by sampling from an $n$-dimensional distribution. Here we do not want to identify an isomorphism $\mathbb{R}^n \overset{\approx}{\to} \mathcal{M}$ (as is the case with autoencoders for example), but find a mapping from a distribution on $\mathbb{R}^n$ to a distribution on $\mathcal{M}$. This is where the Grassmann manifold is useful: each element $V$ of the Grassmann manifold is an $n$-dimensional subspace of $\mathbb{R}^N$ from which we can easily sample. We can then construct a mapping from this space $V$ onto a space that contains the data points $\mathcal{D}$.

Graph of Rosenbrock Function as Example

Consider the following toy example: we want to sample from the graph of the (scaled) Rosenbrock function

\[f(x,y) = ((1 - x)^2 + 100(y - x^2)^2)/1000\]

without using the explicit form of the function during sampling. We show the graph of $f$ for $(x, y)\in[-1.5, 1.5]^2$ in the following picture:

We now build a neural network whose task it is to map a product of two Gaussians $\mathcal{N}(0,1)\times\mathcal{N}(0,1)$ onto the graph of the Rosenbrock function:

\[ \Psi: \mathcal{N}(0,1)\times\mathcal{N}(0,1) \to \mathcal{W}(\{(x, y, z): (x, y)\in[-1.5, 1.5]\times[-1.5, 1.5], z = f(x, y)\}) =: \tilde{\mathcal{W}},\]

where $\mathcal{W}$ is a distribution on the graph of $f.$ For computing the loss between the two distributions, i.e. $\Psi(\mathcal{N}(0,1)\times\mathcal{N}(0,1))$ and $\mathcal{W}(f([-1.5,1.5], [-1.5,1.5]))$ we use the Wasserstein distance^[2]. The Wasserstein distance can compute the distance between $\mathcal{N}(0,1)\times\mathcal{N}(0,1)$ and $\tilde{\mathcal{W}}.$ For more details confer [91, 92].

Before we can use the Wasserstein distance however to train the neural network we need to set it up. It consists of three layers:

using Zygote, BrenierTwoFluid

model = Chain(GrassmannLayer(2,3), Dense(3, 8, tanh), Dense(8, 3, identity))

nn = NeuralNetwork(model, CPU(), Float64)

We then lift the neural network parameters via GlobalSection.

λY = GlobalSection(params(nn))

As the cost function $c$ for the Wasserstein loss^[3] we simply use:

# this computes the cost that is associated to the Wasserstein distance
c = (x,y) -> .5 * norm(x - y)^2
∇c = (x,y) -> x - y

We define a function compute_wasserstein_gradient; this is the gradient of the Wasserstein distance with respect to one of the probability distributions it is supplied with (this is further explained below). The function is defined as:

function compute_wasserstein_gradient(ensemble1::AT, ensemble2::AT) where AT<:AbstractArray
    number_of_particles1 = size(ensemble1, 2)
    number_of_particles2 = size(ensemble2, 2)
    V = SinkhornVariable(copy(ensemble1'), ones(number_of_particles1) / number_of_particles1)
    W = SinkhornVariable(copy(ensemble2'), ones(number_of_particles2) / number_of_particles2)
    S = SinkhornDivergence(V, W, c, params; islog = true)
    initialize_potentials!(S)
    compute!(S)
    value(S), x_gradient!(S, ∇c)'
end

This function associates particles in two point clouds with each other. As an illustrative example we will compare the following two point clouds:

\[ \mathcal{D}_1 = \{(x, y, z): (x, y) \in \mathtt{-1.5:0.1:1.5}^2, z = f(x, y, z)\}\]

and

\[ \mathcal{D}_2 = \left\{ \begin{pmatrix} 2 \\ 2 \\ 2 \end{pmatrix} + x: x \sim \mathtt{rand} \right\},\]

where $x \sim \mathtt{rand}$ means that we draw $x$ with the function rand. In code the two sets are:

xyz_points = hcat([[x, y, rosenbrock([x,y])] for x in x for y in y]...)

and

point_cloud = rand(size(xyz_points)...) .+ [2., 2., 2.]

We then compute the Wasserstein gradients and plot 30 of those (picked at random):

We now want to train a neural network based on this Wasserstein loss. The loss function is:

\[L_\mathcal{NN}(\theta) = W_2(\mathcal{NN}_\theta([x^{(1)}, \ldots, x^{(\mathtt{np})}]), \mathcal{D}_2),\]

where np is the number of points in $\mathcal{D}_2$ and $W_2$ is the Wasserstein distance. We then have

\[\nabla_\theta{}L_\mathcal{NN} = (\nabla{}W_2)\nabla_\theta\mathcal{NN},\]

where $\nabla{}W_2$ is equivalent to the function compute_wasserstein_gradient.

function compute_gradient(ps::NeuralNetworkParameters)
    samples = randn(2, size(xyz_points, 2))
    estimate, nn_pullback = Zygote.pullback(ps -> model(samples, ps), ps)

    valS, wasserstein_gradient = compute_wasserstein_gradient(estimate, xyz_points)
    valS, nn_pullback(wasserstein_gradient)[1]
end

# note the very high value for the learning rate
optimizer = Optimizer(nn, AdamOptimizer(1e-1))

So we use Zygote [94] to compute $\nabla_\theta\mathcal{NN}$ and we use compute_wasserstein_gradient to obtain $\nabla{}W_2$. We can now train our network:

# note the small number of training steps
const training_steps = 80
loss_array = zeros(training_steps)
for i in 1:training_steps
    val, dp = compute_gradient(params(nn))
    loss_array[i] = val
    optimization_step!(optimizer, λY, params(nn), dp.params)
end

and plot the training loss:

Now we plot a few points to check how well they match the graph:

const number_of_points = 35
coordinates = nn(randn(2, number_of_points))

If points appear in darker color this means that they lie behind the graph of the Rosenbrock function.

Library Functions

GrassmannLayer(n, N)
